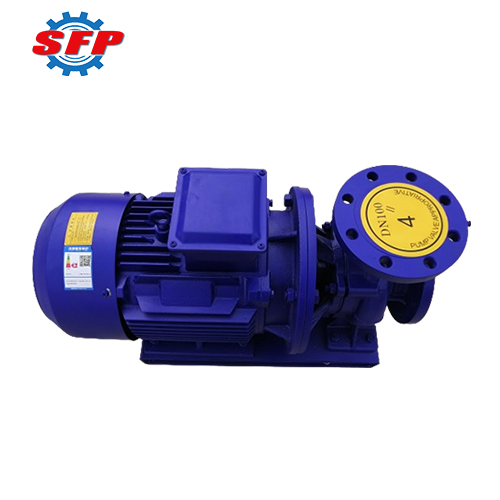

Top Quality ISW Series Magnetic Centrifugal Water Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

ISW series magnetic centrifugal pump is a kind of high efficiency and energy saving product, featuring smooth running, low noise, good sealing performance and high concentricity of parts. The product can be designed to handle seawater or lightly corrosive liquids as well as other liquids with physical properties similar to clear water, and is applied in the fields of farmland irrigation, long-distance water supply, and urban drainage. Also, the motor of the pump adopts low-noise bearings, and the impeller adopts the best static and dynamic balance, thus it can be used in the occasions with strict requirements on the noise environment.

Product Details:

ISW series centrifugal pump consists of motor, pump body, impeller, bearing and sealing device and other components. When the motor of the pump is started, it will be connected to the impeller of the pump through the shaft, which will drive the impeller to rotate at a high speed. The rotation of the impeller creates a low-pressure zone where the liquid in the pump body is under negative pressure and enters the pump casing. When the liquid leaves the impeller and enters the pump casing, due to the gradual expansion of the flow channel in the pump casing, the liquid flow rate slows down, and part of the kinetic energy is converted into static energy, which flows into the discharge pipe along the cutting direction.

Advantage:

ISW series centrifugal pumps are designed to handle clear water and other liquids with physical and chemical properties similar to clear water. They can be widely used in industrial and urban water supply and drainage, high-rise building pressurised water supply, garden sprinkler irrigation, fire-fighting pressure, long-distance transport, HVAC refrigeration circulation, bathroom and other cold and warm water circulation pressure and equipment matching.

Feature:

1. Its motor of this pump adopts low-noise bearings, the impeller has the best static and dynamic balance, no vibration during operation, which improves the environment.
2. This pump employs the domestic advanced hydraulic model optimization design, is a high-efficiency and energy-saving products to meet the needs of different working conditions.
3. The shaft of the pump adopts hard alloy wear-resistant material mechanical seal, which solves the problem of serious leakage of packing seal of centrifugal pump, prolongs the service life, and ensures the tidiness of the production place.

Performance Data:

Model	Capacity (m3/h)	Lift head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
15-80	1.1 1.5 2.0	8.5 8 7	2800	0.18	15
20-110	1.8 2.5 3.3	16 15 13.5	2800	0.37	20
20-160	1.8 2.5 3.3	33 32 30	2900	0.75	20
25-110	2.8 4 5.2	16 15 13.5	2900	0.55	25
25-125	2.8 4 5.2	20.6 20 18	2900	0.75	25
25-125A	2.5 3.6 4.6	17 16 14.4	2900	0.55	25
25-160	2.8 4 5.2	33 32 30	2900	1.5	25
25-160A	2.6 3.7 4.9	29 28 26	2900	1.1	25
32-100	4.5	12.5	2900	0.55	32
32-100（I）	4.4 6.3 8.3	13.2 12.5 11.3	2900	0.75	32
32-125	3.5 5 6.5	22 20 18	2900	0.75	32
32-125A	3.1 4.5 5.8	17.6 16 14.4	2900	0.55	32
32-160	6.5	32	2900	1.5	32
32-160A	4	25	2900	1.1	32
32-160(I)	4.4 6.3 8.3	33.2 32 30.2	2900	2.2	32
