Product Description

Summarize:

ZYB series gear oil pump is specially designed to deal with non-metallic impurities of heavy oil, diesel oil, coal tar and other kinds of low-grade inferior combustion oil. It is especially suitable for fuel injection occasions in chemical, construction, petroleum and asphalt mixing stations and other departments and industries. This pump adopts a number of original hydraulic balance technology in its structure, which makes it work at high pressure with low noise, high efficiency, stable pressure, smooth operation and long pressure holding time and other unique properties.

Product Details:

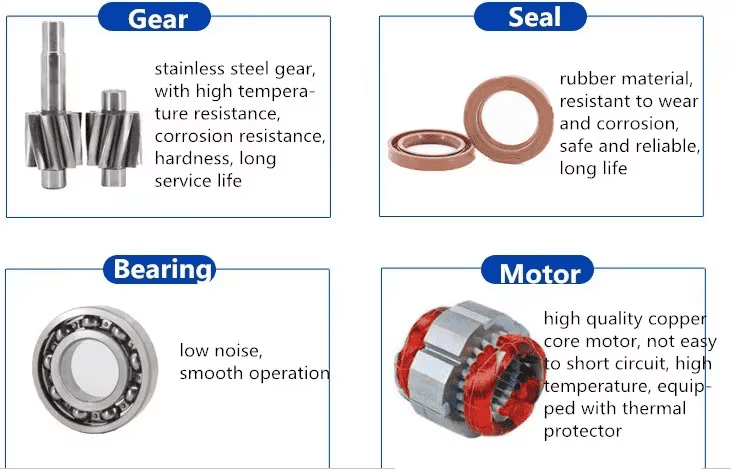

ZYB series magnetic gear pump is mainly composed of pump body, pump cover, gears, shaft seal, gland and other components. There are two active gears and passive gears of the same size installed in the pump body, and the outer diameter edge of the gears closely matches with the pump casing to form a sealed working chamber. When the motor drives its active gear to rotate, the passive gear also rotates. As the gears mesh, the volume between the teeth gradually decreases, and the oil is extruded and discharged from the discharge port.

Application:

ZYB series heavy oil gear pumps can transport heavy oil, diesel oil, coal tar and impurities containing non-metallic impurities with temperature not higher than 260 °C and viscosity not greater than 150 mm 2 /S. They can be used in food, petroleum, chemical, building materials and daily chemical industries. It can be used in food, petroleum, chemical, building materials and daily-use chemical industries and strong lubrication system, fuel combustion system in the fuel delivery and injection system. It should be noted that it is not suitable for conveying corrosive, metal-containing impurities, sand and gravel impurities with a particle size larger than 3 millimeters and highly volatile impurities.

Advantage:

1. The pump has good self-priming performance and can suck in liquid automatically to a certain extent without additional auxiliary devices.
2. The internal parts are optimized and designed so that the gears bear little torque in work, the bearing load is small, and the wear is small, thus improving the efficiency of the pump.
3. It is especially suitable for occasions requiring stable working pressure and long-term continuous work, such as strong lubrication system, fuel delivery and injection in fuel combustion system.
4. The machine adopts self-sealing lubrication and gap automatic adjustment structure, reasonable design, the shape and installation dimensions are the same as KCB series gear pumps, with interchangeability.

Performance Data:

Type	Inlet & Outlet	Flow		Pressure	Speed	Suction Height	Power
Type	mm	m3/h	L/min	MPa	r/min	m	kw
ZYB4/0.6	25	4	66	0.6	960	5	1.5
ZYB7/0.6	40	7	116	0.6	960	5	3
ZYB13/0.6	50	13	216	0.6	960	5	4
ZYB13/1.0	50	13	216	1.0	960	5	5.5
ZYB18/0.6	70	18	300	0.6	960	5	7.5
ZYB18/1.0	70	18	300	1.0	960	5	11
ZYB30/0.6	80	30	500	0.6	960	5	7.5
ZYB38/0.4	100	38	633	0.4	960	5	15
ZYB45/0.6	100	45	750	0.4	960	5	18.5
ZYB60/0.6	100	60	1000	0.4	960	5	22
