Product Description

Summarize:

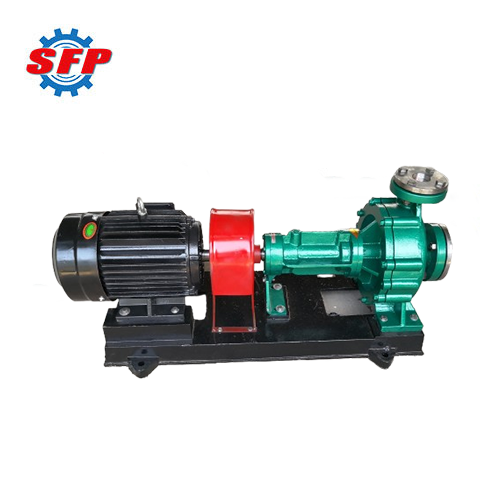

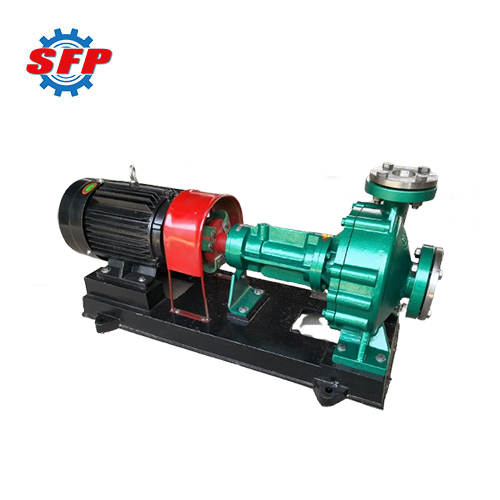

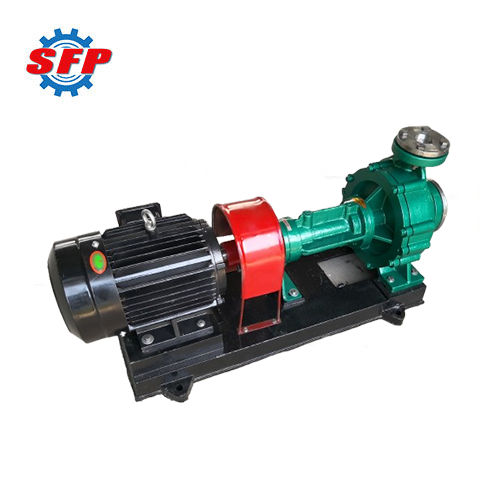

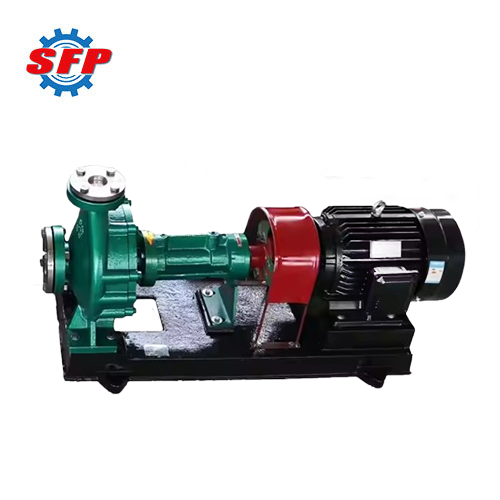

RY series centrifugal hot oil pumps are single-stage cantilever centrifugal pumps, mainly used to transport high-temperature liquids without solid particles, such as hot oil, heat transfer oil, etc. This series of pumps is a single-stage hot oil centrifugal pump developed on the basis of absorbing various advanced technical features, with the characteristics of reasonable structure, advanced technology, high efficiency, and stable operation. It can be widely used in many industrial fields such as petroleum, chemical, rubber, plastics, pharmaceuticals, printing and dyeing, road construction, food, etc.

Product Details:

RY series centrifugal oil pump's impeller is self-balanced by means of rear vanes. Typically, the pump is driven by an electric motor, which can be connected to the pump via a flexible coupling. It is also possible to install a flexible spacer coupling, which allows the entire pump support to be disassembled without removing the pump housing and motor from the base plate. In addition, the coupling is protected by a cover, which prevents damage caused by external factors.

Application:

RY series centrifugal hot oil pumps are usually applied for transferring thermal oil or other hot oil with temperature not higher than 350℃ and viscosity 5-300cst for hydraulic transmission system. It is widely adopted in industrial and urban flood control, emergency rescue, water supply and drainage, sprinkler irrigation, chemical, sewage treatment, petroleum, pharmaceutical and food industries.

Feature:

1. This pump utilizes a packing seal structure and an additional temperature-resistant oil seal to effectively prevent medium leakage.
2. The pump and the drive motor are installed on the same base through an elastic coupling. No additional cooling system is required, and the operation is safe and reliable.
3. It adopts a single-stage cantilever structure, which is divided into two forms: foot support and center support. The pump inlet is axial suction and the outlet is vertical upward.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev r/min		Power( kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
