Product Description

Summarize:

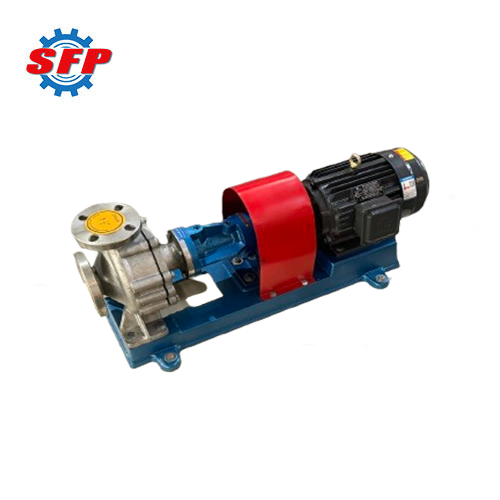

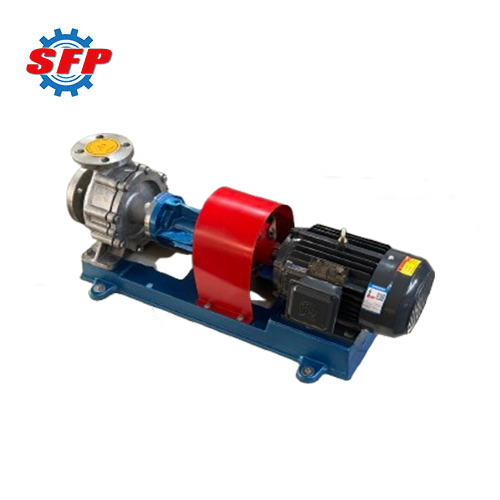

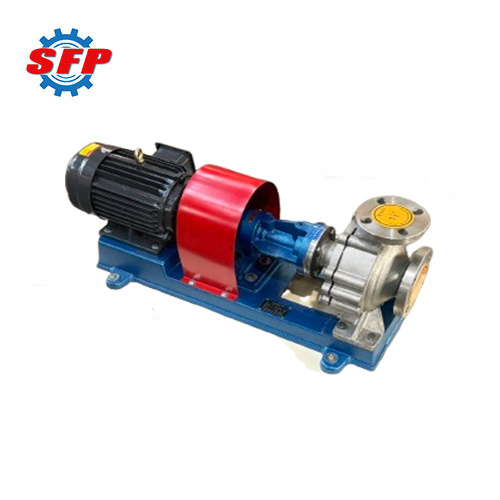

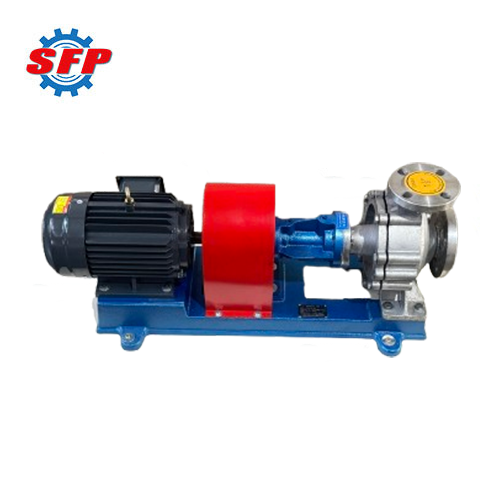

RY horizontal oil pumps are single-stage, single-suction, cantilever-type centrifugal pumps designed to transport high-temperature hot oil or high-temperature liquid media free of impurities, making them commonly utilized as hot oil circulation pumps or heat transfer fluid pumps across various industries. The unit consists of an integrated pump head and base, with the motor connected via a coupling and mounted on the same base, this design enhances operational robustness and stability while facilitating installation, disassembly, and maintenance. Equipped with a combined packing and mechanical seal system, the pump maintains excellent wear resistance and superior sealing performance even under high-temperature conditions, effectively minimizing the risk of fluid leakage to the outside of the pump.

Product Details:

RY series thermal oil centrifugal pump relies on centrifugal force to transport liquids. When the motor drives the impeller to rotate at high speed, the liquid enters the center of the impeller through the axial suction port and is flung toward the impeller’s periphery by centrifugal force. It is then discharged through the pump’s outlet into the external piping, while the center of the impeller becomes a low-pressure zone due to the removal of liquid. As a result, the medium is continuously drawn in, thereby achieving continuous flow.

Application:

RY air-cooled hot oil pumps are capable of conveying hot oil and high-temperature media, and are used in the lubricant industry, petrochemicals, food processing, hot oil heating systems, paper and wood processing, rubber and plastics, and the construction industry. Their high-temperature conveying capacity, heat resistance, and superior sealing make them essential equipment in modern industrial heating systems and high-temperature operating conditions.

Feature:

1. This pump employs a combination of packing seals and mechanical seals, ensuring high sealing integrity even under high-temperature production conditions.
2. Its motor can be connected to the pump via a flexible coupling, allowing the entire unit to be disassembled without removing the pump casing and motor from the base.
3. The user can monitor the sealing condition at any time during the pumping process and recover any leaked hot oil, which not only extends the service life of the equipment and bearings but also ensures a clean and safe production environment.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Power(kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
