Product Description

Summarize:

RY high-temperature thermal oil pumps are single-stage, single-suction centrifugal pumps characterized by compact structure, high efficiency, reliable sealing, low operating costs, and easy maintenance. This equipment eliminates the traditional water-cooled jacket design, requiring no on-site cooling water system, and relies on its own air-cooled heat dissipation to transport high-temperature thermal oil or other heat transfer fluids free of solid particles. It serves as the ideal choice for industries such as chemical, petroleum, textile, printing and dyeing, plastics, and rubber.

Product Details:

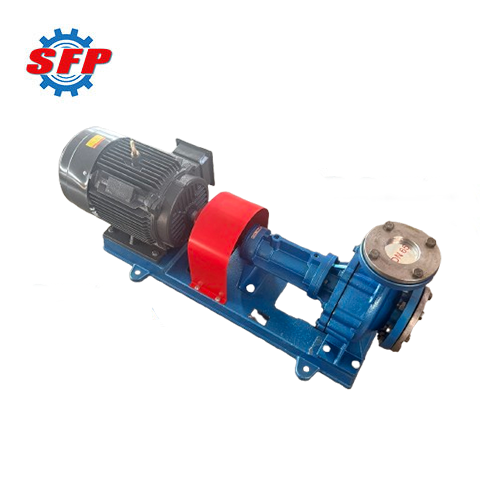

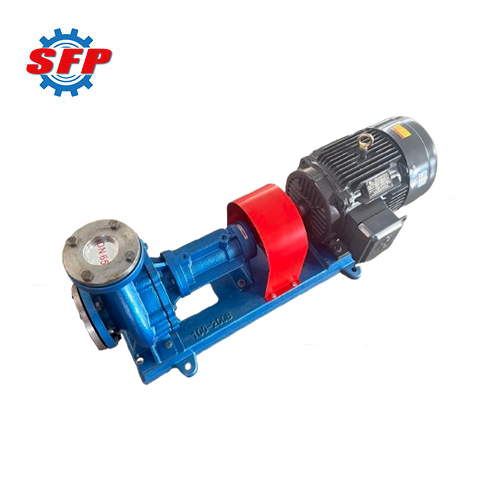

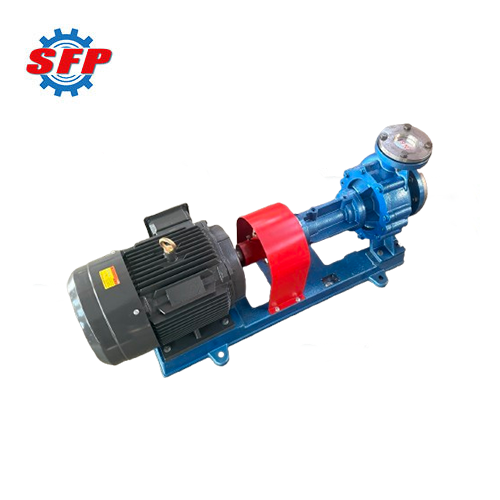

RY series centrifugal oil pump is driven by an electric motor connected to the pump body via a flexible coupling. The motor drives the impeller to rotate at high speed, forcing hot oil through the suction inlet into the impeller's center. Simultaneously, centrifugal force pushes the hot oil toward the impeller's outer edge, pressurizing it, and then the high-pressure oil is discharged through the volute, completing the high-temperature closed-loop circulation system.

Application:

RY series hot oil pumps are the ideal choice for transporting high-temperature liquids. Primarily designed for conveying weakly corrosive fluids without solid particles at temperatures ≤350°C, these pumps are widely used in thermal energy transfer systems across industries such as petrochemicals, rubber and plastics, pharmaceuticals, textile printing and dyeing, road construction, food processing, and woodworking.

Feature:

1. This equipment allows for inspection and replacement of internal pump components without disassembling inlet/outlet piping or the motor, significantly reducing equipment downtime.
2. Incorporates a cartridge-type double-ended mechanical seal that continuously cools and lubricates the sealing surfaces, effectively isolating high-temperature media.
3. Featuring a single-stage, single-suction cantilevered design with the motor mounted on the same base, it simplifies maintenance and installation procedures.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Power(kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
