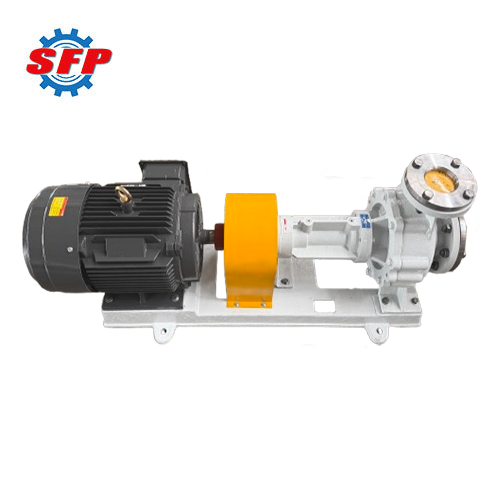

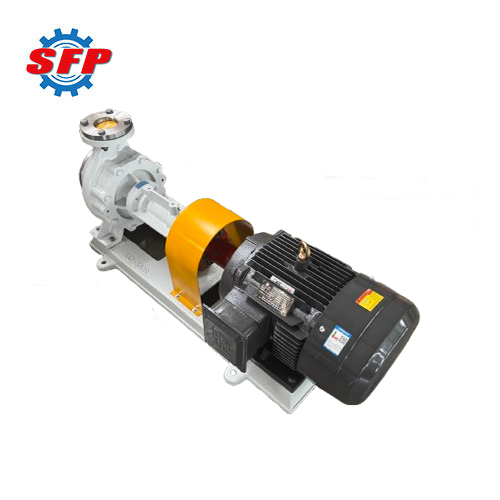

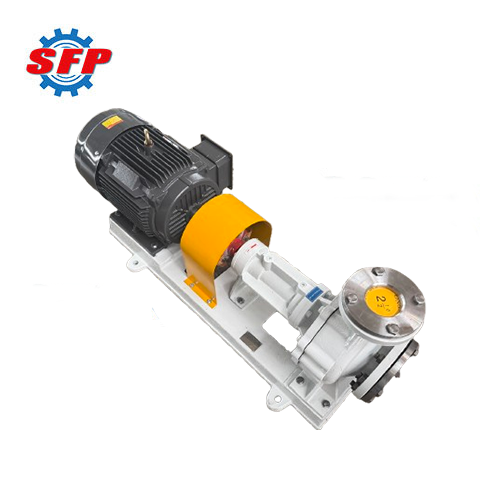

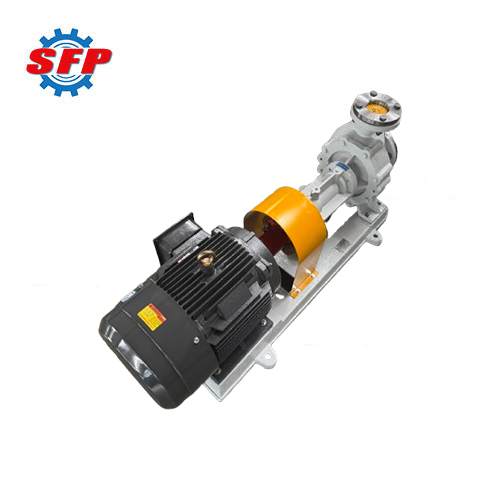

Large Quantity RY Horizontal Hot Oil Fluid Circulation Centrifugal Pumps

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

ZX Self-Priming Centrifugal Pump

LPG Gas Transfer Pump for Sale

G Series Sludge Screw Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

RY centrifugal oil pump enhances the adaptability of components such as bearings and seals to high-temperature media through optimized thermal balancing technology and a well-designed internal structure, enabling consistent operational stability during startup, steady-state operation, and shutdown. Compared to other traditional centrifugal pumps, it features a self-cooling design that reduces reliance on conventional water-cooling systems, streamlining the production and installation processes while simplifying the system. This approach also lowers the investment in auxiliary equipment and reduces daily maintenance costs, thereby effectively improving equipment utilization rates.

Product Details:

After the RY thermal oil pump is started, the motor drives the pump shaft to rotate at high speed via the coupling, causing the impeller to rotate in sync. When the thermal oil enters the center of the impeller, centrifugal force rapidly accelerates it toward the outer edge of the impeller, imparting kinetic and pressure energy to it. Subsequently, as the liquid enters the volute passage, its flow velocity gradually decreases, resulting in a stable outlet pressure.

Application:

RY series thermal oil centrifugal pump is suitable for conveying thermal oil or other high-temperature oil media with a temperature not exceeding 350°C and a viscosity of 5-300cst. Therefore, it is usually used to meet the media conveying needs in industries such as rubber, plastics, emergency rescue, heating, printing and dyeing, petroleum, chemical and pharmaceutical.

Feature:

1. It features excellent sealing performance, which reduces the risk of heat transfer fluid leakage during transport and enhances operational safety.
2. The RY series utilizes an air-cooled heat dissipation design, a structure that minimizes maintenance requirements and improves equipment utilization.
3. It offers superior sealing capabilities, maintaining a reliable seal under normal operating conditions to reduce the risk of heat transfer fluid leakage and enhance operational safety.
4. We offer pump materials such as stainless steel and cast iron, tailored to specific operating conditions and pumped media, to meet the transport requirements of diverse industrial environments.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Power(kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
