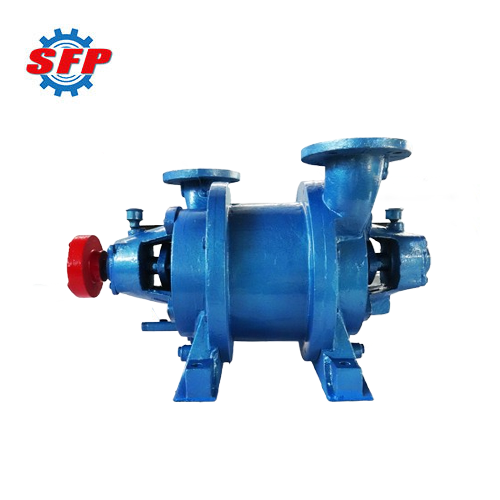

Popular SK Single Stage Water Ring Vacuum Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

SK series single stage vacuum pump is a water ring vacuum pump that designed for pumping or pressurizing gases and other non-corrosive, water-insoluble, solid particle-free substances, which can meet the conveying requirements of industries such as machinery, pharmaceuticals, petrochemicals, sugar, food and electronics. This pump adopts advanced manufacturing technology and durable materials to ensure stable and reliable performance and long service life features.

Product Details:

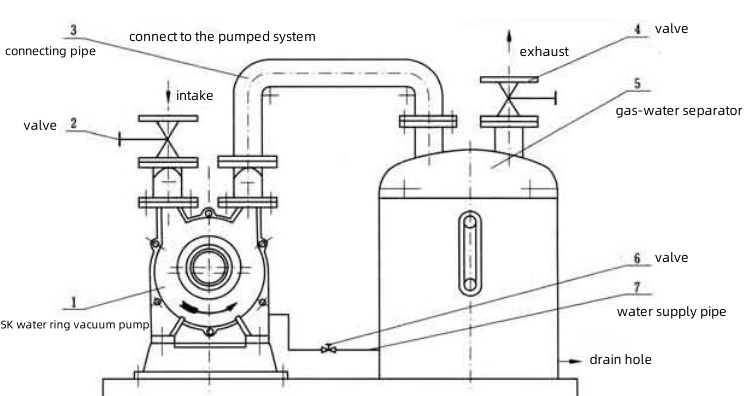

SK series single stage vacuum pumps compress gas by rotating a vane impeller inside a cylindrical housing. When the liquid is fed into the pump, under centrifugal acceleration, a cylindrical ring is formed that fits snugly inside the housing. This liquid ring creates a series of seals in the space between the impeller blades, thus forming the compression chamber. After the gas is drawn into the pump through the air inlet at the end of the casing, the gas is trapped in the compression chamber formed by the impeller blades and the liquid ring. Finally, the rotation of the impeller results in a volume reduction, which compresses the gas and discharges it into the discharge port at the end of the casing.

Application:

This machine can pump out the gas which is non-corrosive, insoluble in water and free of solid particles, such as air, and a small amount of liquid is allowed to be mixed in, and the pump is not easy to be dangerous when pumping or extracting flammable and explosive gases. Widely used in machinery, petrochemical, pharmaceutical, food, sugar industry and electronics industry, etc.

Feature:

1. Compact structure: reasonable design, small volume, easy to install and maintain.
2. High vacuum degree: The ultimate vacuum degree can reach -0.093MPa to -0.097MPa.
3. Large pumping capacity: With high pumping rate, it can meet the vacuum demand in different processes.
4. Stable operation: Isothermal gas compression process during the working process, compression and suction of explosive gases are not easy to be dangerous.

Performance Data:

Model	Inspiratory Volume (m3/min)		Ultimate Vacuum		Power (kW)		Speed (r.p.m）	Compressor Pressure (Mpa)	Inlet (mm)	Outlet (mm)	Water Consumption (L/min)
Model	Max	Vacuum Degree is -450mmHg	mmHg	MPa	Vacuum Pump	Compressor	Speed (r.p.m）	Compressor Pressure (Mpa)	Inlet (mm)	Outlet (mm)	Water Consumption (L/min)
SK-1.5	1.5	1.35	-680	-0.091	3	4	1450	0-1	70	70	10~15
SK-3	3	2.8	-710	-0.093	5.5	7.5	1450	0-1	70	70	15~20
SK-6	6	5.4	-710	-0.093	11	15	1450	0-1	80	80	20~30
SK-9	9	8.1	-710	-0.093	15	22	970	0-1	80	80	30~40
SK-12	12	11	-710	-0.093	18.5	30	970	0-1	80	80	40~50
SK-15	15	13.5	-710	-0.093	30	45	970	0-1	80	80	50~60
SK-20	20	18	-710	-0.093	37	55	740	0-1	150	150	60~80
SK-30	30	28	-710	-0.093	55	75	740	0-1	150	150	70~100
SK-42	42	37.2	-710	-0.093	75	-	740	-	150	150	95~130
SK-60	60	54	-710	-0.093	95	-	590	-	250	250	140~180
SK-85	85	76.5	-710	-0.093	132	-	590	-	250	250	180~220
SK-120	120	110	-710	-0.093	185	-	590	-	300	300	220~260
