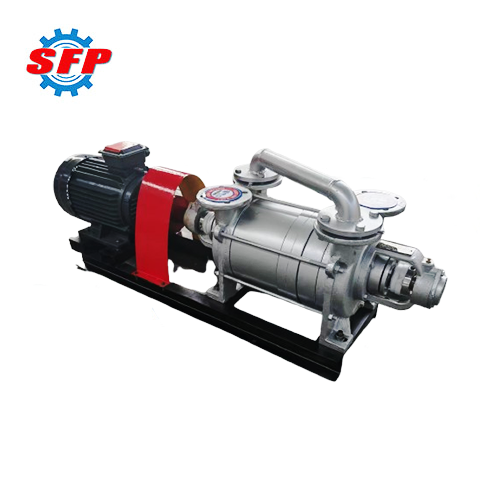

2SK series vacuum pumps are principally designed to convey and extract air and various other gases that are free of solid particles, non-corrosive, and insoluble in water, thereby achieving high vacuum levels within sealed containers and spaces. By leveraging the advantages of a two-stage series configuration, this series of vacuum pumps achieves higher vacuum levels without requiring extensive auxiliary equipment. With a compact, simple design that facilitates maintenance and routine servicing, these pumps are widely used in industries such as chemicals, electronics, textiles, pharmaceuticals, and papermaking.
Product Details:
As the 2SK vacuum pump operates, centrifugal force causes water to be violently flung outward, forming a water ring between the inner wall and the impeller. When the impeller rotates clockwise, the internal pressure initially decreases, causing the gas to be continuously drawn into the cavities. Next, the volume of the cavities between adjacent blades gradually decreases, compressing the gas and causing the pressure to rise continuously. When the pressure reaches a certain level, the gas is expelled from the pump through the exhaust port. This process repeats continuously, with the gas inside the sealed container being continuously evacuated and the internal pressure continuously decreasing, thereby achieving the required vacuum conditions.
Application:
2SK vacuum pumps, with their high vacuum levels and the safety features of water-ring isothermal compression, are capable of meeting the demands of vacuum evaporation, vacuum concentration, vacuum packaging, vacuum impregnation, vacuum degassing, vacuum freezing, vacuum distillation, and vacuum filtration. They stand as a reliable choice for vacuum process equipment in the food processing, biopharmaceutical, metallurgical, electronics, and petrochemical industries.
Feature:
1. The equipment maintains a high level of safety when pumping flammable and explosive gases, significantly reducing the risk of explosion and thereby greatly expanding the scope of safe pump operation.
2. 2SK vacuum pump can extract not only standard air but also mixed gases containing water vapor and flammable and explosive gases, meeting the operational requirements of various industrial settings.
3. This series of pumps achieves higher vacuum levels while featuring a compact and uncomplicated overall design, making maintenance and routine servicing relatively convenient.
