Product Description

Summarize:

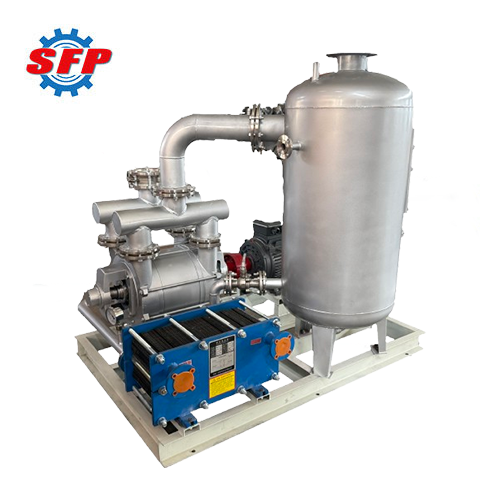

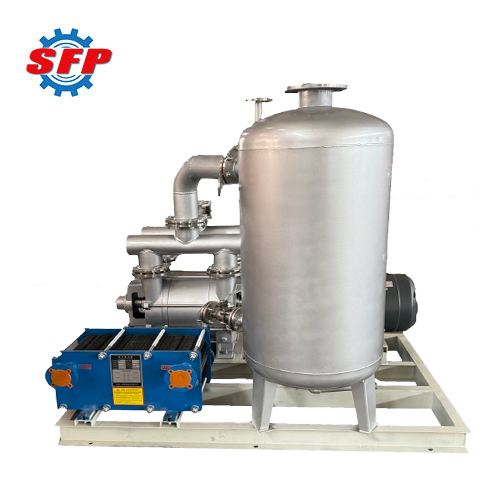

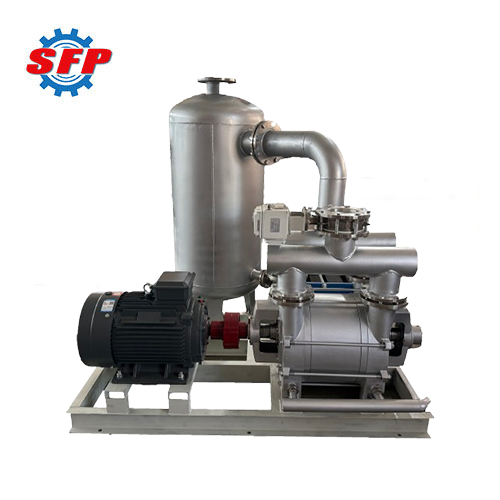

2BEA high capacity vacuum pump is designed for gas extraction and vacuum-related applications in continuous production environments, making it suitable for industries such as environmental protection, metallurgy, electronics, plastics, rubber, and building materials manufacturing. Unlike traditional liquid-ring vacuum pumps, this unit achieves higher pumping efficiency and lower operating energy consumption while ensuring stable vacuum performance through improvements in impeller structure, flow path design, and internal fit precision. Its impeller incorporates high-precision balancing technology, enabling it to maintain stable operation even under prolonged continuous running conditions, thereby reducing bearing loads and providing a reliable and safe vacuum solution.

Product Details:

Before starting the 2BEA series vacuum pumps, a specified amount of clean water or other liquid must be injected into the pump chamber. The motor drives the impeller to rotate; under the action of centrifugal force, the liquid is flung against the inner wall of the pump casing, forming a concentric rotating water ring. When the volume gradually increases, external gas enters the pump chamber through the inlet, while as the volume gradually decreases, the gas is compressed and discharged through the outlet, thereby creating a continuous and stable pumping process.

Application:

1. In the petrochemical industry, it can be used for the safe extraction and discharge of flammable, explosive, or toxic gases such as acetylene and hydrogen.

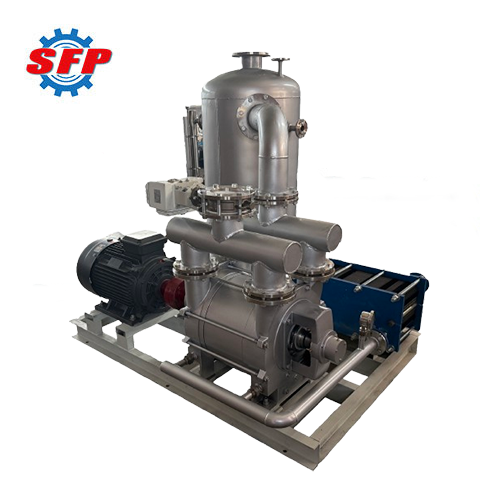

2. It can be used in the food industry for processes such as vacuum freeze-drying, vacuum packaging, sugar production, and vacuum concentration of fruit juice.
3. In the chemical industry, it can meet the needs of processes such as vacuum crystallization, vacuum drying, vacuum filtration, vacuum concentration, and vacuum sterilization.

Feature:

1. All components in this series are made of wear-resistant materials, which effectively reduce equipment downtime and significantly extend its service life.
2. The 2BEA series liquid-ring vacuum pumps effectively reduce energy loss during gas compression and increase pumping capacity for the same energy consumption.
3. The pumps maintain stable operation even under prolonged continuous operation, enabling them to meet the practical application requirements of a wider range of complex operating conditions.

Performance Data:

Model	Speed	Motor Power	Limited Vacuum	Suction Capacity
	r/min	kW	mbar	m³/h	m³/min
2BEA 151-0	1450（D） 1100（V） 1300（V） 1625（V） 1750（V）	15 11 11 15 18.5	33mbar (-0.098MPa)	405 300 360 445 470	6.8 5.0 6.0 7.4 7.8
2BEA 152-0	1450（D） 1100（V） 1300（V） 1625（V） 1750（V）	15 11 15 18.5 22	33mbar (-0.098MPa)	465 340 415 510 535	7.8 5.7 6.9 8.5 8.9
2BEA 153-0	1450（D） 1100（V） 1300（V） 1625（V） 1750（V）	18.5 15 18.5 22 30	33mbar (-0.098MPa)	600 445 540 660 700	10.0 7.4 9.0 11.0 11.7
2BEA 202-0	970（D） 790（V） 880（V） 1100（V） 1170（V） 1300（V）	22 18.5 18.5 30 30 37	33mbar (-0.098MPa)	760 590 670 850 890 950	12.7 9.8 11.2 14.2 14.8 15.8
2BEA 203-0	970（D） 790（V） 880（V） 1100（V） 1170（V） 1300（V）	37 30 30 45 45 55	33mbar (-0.098MPa)	1120 880 1000 1270 1320 1400	18.7 14.7 16.7 21.2 22.0 23.3
2BEA 252-0	740（D） 558（V） 660（V） 832（V） 885（V） 938（V）	45 30 37 55 75 75	33mbar (-0.098MPa)	1700 1200 1500 1850 2000 2100	28.3 20.0 25.0 30.8 33.3 35.0
2BEA 253-0	740（D） 560（V） 660（V） 740（V） 792（V） 833（V） 885（V） 938（V）	75 45 55 75 75 90 90 110	33mbar (-0.098MPa)	2450 1750 2140 2450 2560 2700 2870 3020	40.8 29.2 35.7 40.8 42.7 45.0 47.8 50.3
