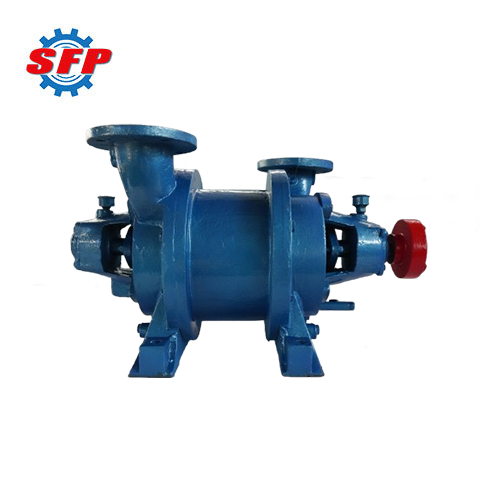

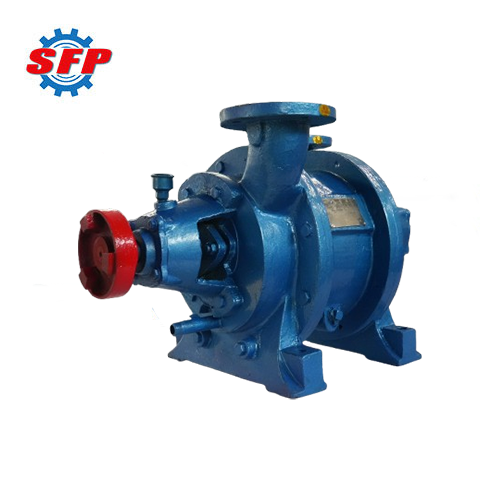

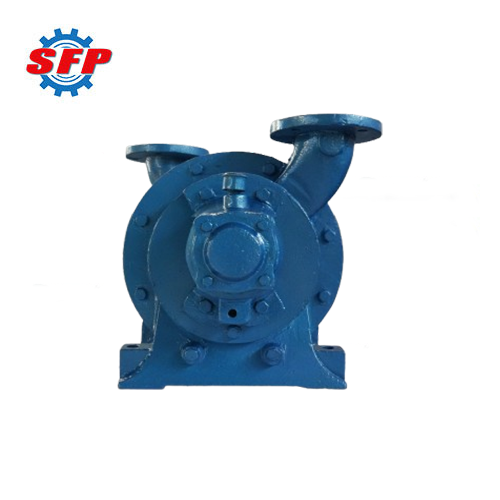

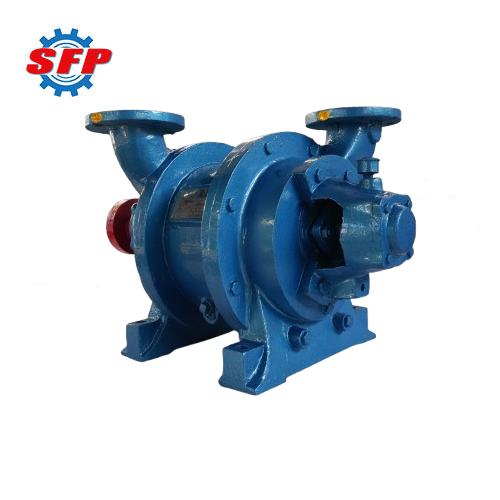

SK series horizontal vacuum pumps are liquid ring vacuum pumps featuring high vacuum levels, explosion-proof safety, pollution-free operation, and an extremely simple structure. They are perfectly suited for applications including hospital sterilization, coal mine tail gas recovery, chemical distillation, food processing, and extrusion molding. To ensure safety when extracting flammable and explosive gases, we employ advanced isothermal compression technology to achieve spark-free operation and prevent temperature rise during use.
| odel | Inspiratory Volume (m³/min) |
Ultimate Vacuum | Power (kW) |
Speed (r.p.m） |
Compressor Pressure (Mpa) |
Inlet (mm) |
Outlet (mm) |
Water Consumption (L/min) |
|||
| Max | Vacuum Degree is -450mmHg |
mmHg | MPa | Vacuum Pump | Compressor | ||||||
| SK-1.5 | 1.5 | 1.35 | -680 | -0.091 | 3 | 4 | 1450 | 0-1 | 70 | 70 | 10~15 |
| SK-3 | 3 | 2.8 | -710 | -0.093 | 5.5 | 7.5 | 1450 | 0-1 | 70 | 70 | 15~20 |
| SK-6 | 6 | 5.4 | -710 | -0.093 | 11 | 15 | 1450 | 0-1 | 80 | 80 | 20~30 |
| SK-9 | 9 | 8.1 | -710 | -0.093 | 15 | 22 | 970 | 0-1 | 80 | 80 | 30~40 |
| SK-12 | 12 | 11 | -710 | -0.093 | 18.5 | 30 | 970 | 0-1 | 80 | 80 | 40~50 |
| SK-15 | 15 | 13.5 | -710 | -0.093 | 30 | 45 | 970 | 0-1 | 80 | 80 | 50~60 |
| SK-20 | 20 | 18 | -710 | -0.093 | 37 | 55 | 740 | 0-1 | 150 | 150 | 60~80 |
| SK-30 | 30 | 28 | -710 | -0.093 | 55 | 75 | 740 | 0-1 | 150 | 150 | 70~100 |
| SK-42 | 42 | 37.2 | -710 | -0.093 | 75 | - | 740 | - | 150 | 150 | 95~130 |
| SK-60 | 60 | 54 | -710 | -0.093 | 95 | - | 590 | - | 250 | 250 | 140~180 |
| SK-85 | 85 | 76.5 | -710 | -0.093 | 132 | - | 590 | - | 250 | 250 | 180~220 |
| SK-120 | 120 | 110 | -710 | -0.093 | 185 | - | 590 | - | 300 | 300 | 220~260 |
