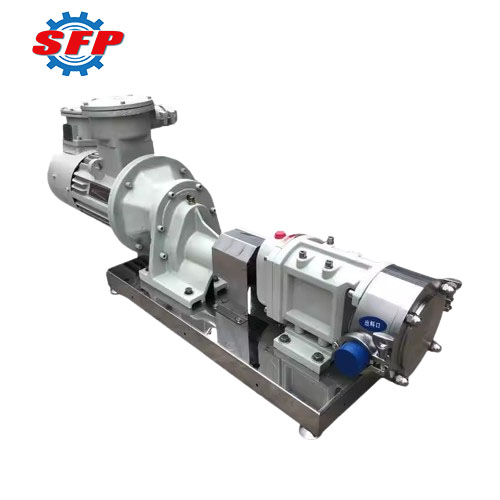

Popular 3RP Series Sanitary Cosmetic High Viscosity Lobe Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

3RP high viscosity vane pump is a volumetric pump with the advantages of good self-priming performance, high efficiency and long service life. It is suitable for conveying suspensions containing soft solid particles, corrosive media and suspensions, and can meet the conveying requirements of food, pharmaceutical, construction, petroleum, daily chemical and other industries. Moreover, the pump has stable flow rate and pressure, which can meet the requirements under different working conditions.

Product Details:

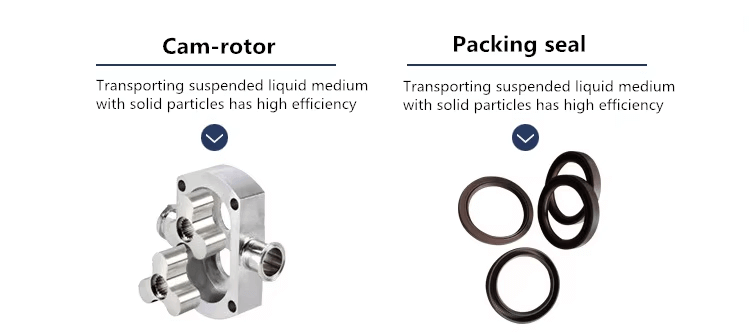

3RP series sanitary rotary lobe pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, to achieve the delivery of the medium. Adopted is the gear transmission mode, the main shaft and auxiliary shaft drive the rotor synchronous reverse rotation, so that the pump volume changes, thus forming a higher vacuum and discharge pressure, so it is specially designed for sanitary media and strong corrosive high-viscosity media.

Application:

1. Foodstuffs: ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.
2. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
3. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
4. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
5. Dairy Products: Yoghurt, cream, ice cream, cheese and whey.
6. Chemicals: Fats, solvents, resins and polymers, dyes.
7. Pharmaceuticals: Pills, extracts, emulsions, creams.

Advantage:

1. It can convey materials with poor fluidity such as high viscosity, high concentration, etc. It can also convey gas, liquid and solid phase mixture materials, and convey a wide range of materials.

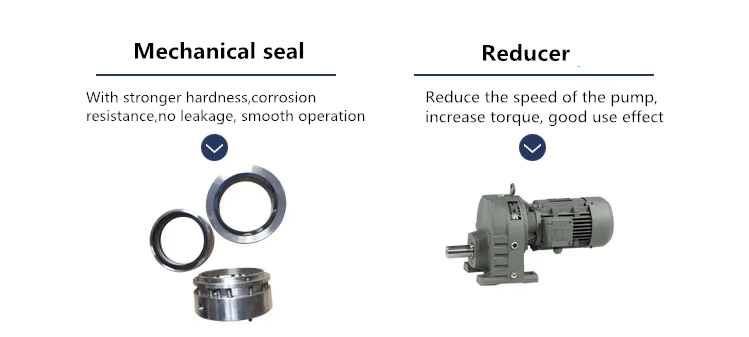

2. The use of high-quality sealing materials and advanced sealing technology ensures the sealing of the pump when conveying various media.
3. The output flow rate of the pump can be changed by adjusting the spindle speed, and can be used as a general metering pump.
4. With the features of simple structure, stable operation, low failure rate, reducing maintenance costs and downtime.
5. It has the advantages high working efficiency, it can effectively reduce energy consumption.

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
Model	L/100r	m3/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
3RP-125	250	≤60			22	125
