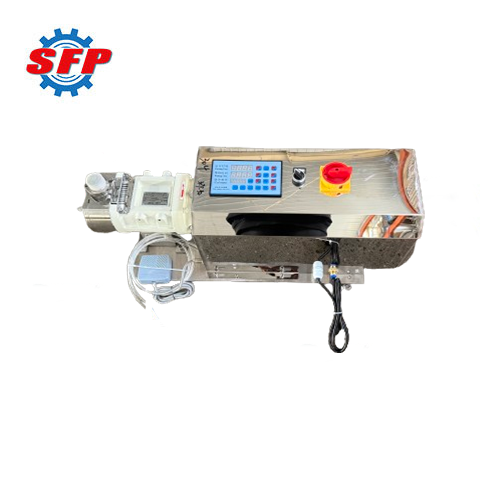

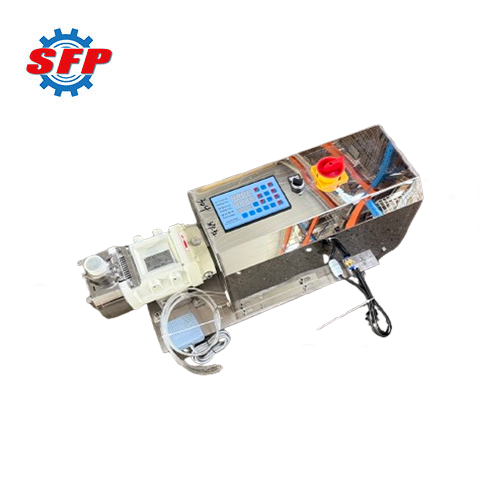

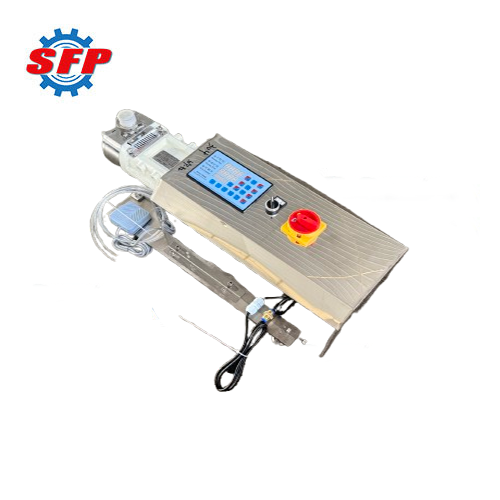

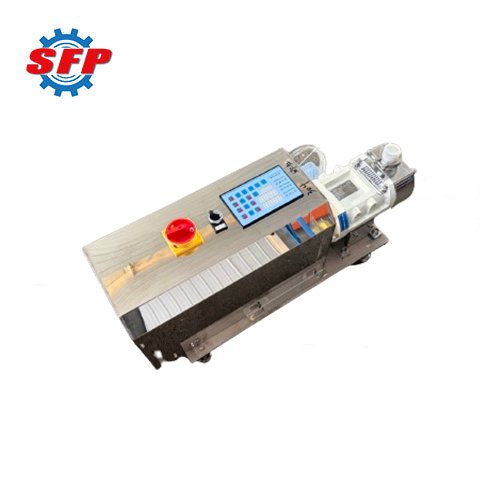

3RP stainless steel rotor pump is suitable for conveying high-viscosity, shear-sensitive liquid media ranging from -30°C to 200°C, including tomato paste, cheese, chocolate, cream, ointments, and greases. This equipment eliminates traditional valve structures by employing two synchronously rotating, meshing rotors that form a stable, sealed chamber within the working cavity, smoothly and continuously pushing material from the suction end to the discharge end, ensuring virtually pulsation-free flow output to preserve the original properties of the conveyed medium during transportation.
Product Details:
3RP series high-viscosity vane pump primarily consists of a rotor, shaft seal, gearbox, and a pair of synchronously meshed drive gears. When the synchronous gears drive the cam rotor to rotate in opposite directions, multiple dynamic sealed chambers are formed between the rotor and the pump cavity. The volume of the inlet-side chamber gradually increases, thereby drawing in high-viscosity or particulate-laden media. As the rotor continues to rotate, each chamber progressively closes and moves toward the outlet, achieving smooth, pulsation-free material transfer to complete the pumping task.
Application:
1. Chemicals & Adhesives: Sealant, grease, paint, ink, resin.
2. Personal Care & Cosmetics: Shampoo, body wash, lotion, toothpaste, gel, hair dye.
3. Pharmaceuticals & Biotechnology: Ointment, gel, emulsion, culture medium, biologics.
4. Food and Beverage: Ketchup, mayonnaise, jam, yogurt, fruit juice (with pulp), chocolate, fillings, hot pot bases.
Feature:
1. The valve-free design minimizes downtime due to failures, while servo-driven operation enables high-speed, continuous, and stable filling.
2. The pump's low-shear characteristics protect particles, fibers, and active ingredients in the material, ensuring the product remains unchanged after filling.
3. Featuring a sanitary design with no dead corners and quick-disassembly capability, it significantly reduces cleaning and preparation time during batch changeovers.

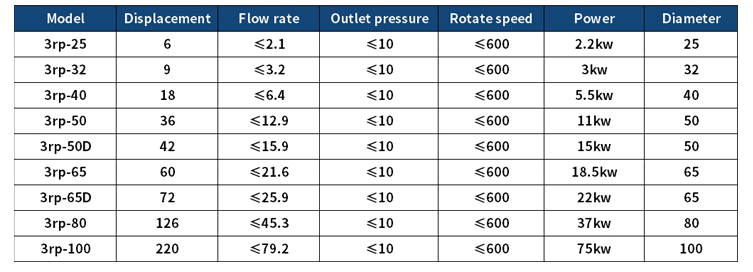

Performance Data:
| Model |
Flow |
Discharge Pressure
(Mpa) |
Rev
(rpm) |
Motor Power
(kw) |
Inlet/Outlet
(mm) |
| l/100r |
m³/h |
| 3RP-25 |
6 |
≤1.8 |
0-1.0 |
10-400 |
0.75 |
25 |
| 3RP-32 |
9 |
≤2.7 |
1.1 |
32 |
| 3RP-40 |
18 |
≤4.3 |
1.5 |
40 |
| 3RP-50 |
36 |
≤8.6 |
2.2 |
50 |
| 3RP-65 |
60 |
≤14.4 |
4 |
65 |
| 3RP-80 |
105 |
≤25.2 |
11 |
80 |
| 3RP-100A |
125 |
≤30 |
15 |
100 |
| 3RP-100 |
150 |
≤36 |
18.5 |
100 |
