Product Description

Summarize:

3RP series honey rotary lobe pumps can be used to fill high viscosity corrosive media such as beverages, sauces, edible oils, lubricants and chemicals. It can be applied to food, beverage, chemical, petroleum, biopharmaceutical and other fields. This equipment is made of food-grade stainless steel material, in line with health standards, while reducing the medium in the filling process of pollution and waste.

Product Details:

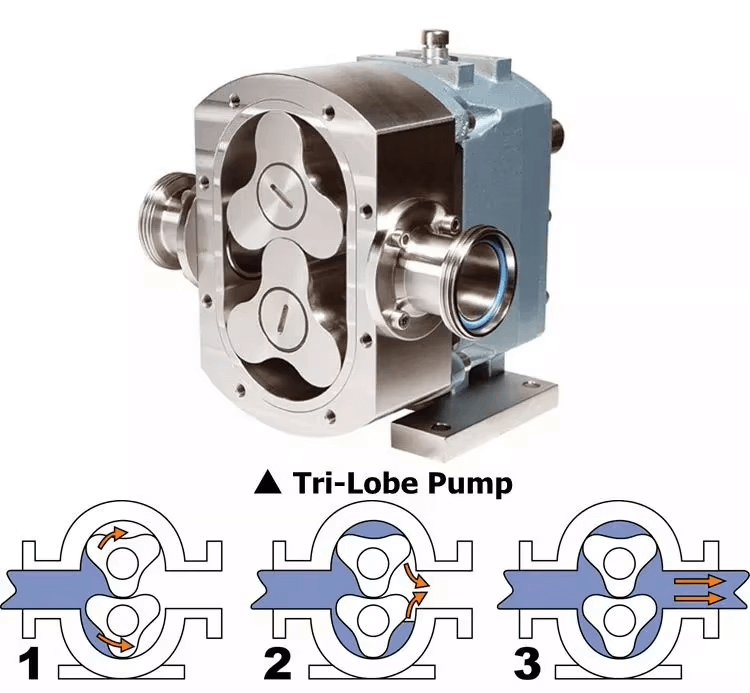

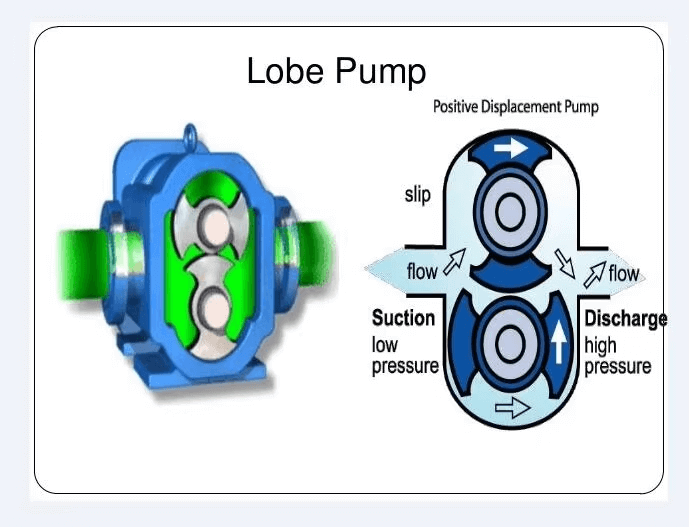

3RP series lobe honey pump is mainly composed of rotor, shaft seal, gear box, a pair of synchronous meshing of the active gear, to achieve the delivery of the medium. Adopted is the gear transmission mode, the main shaft and auxiliary shaft drive the rotor synchronous reverse rotation, so that the pump volume changes, thus forming a higher vacuum and discharge pressure, so it is specially designed for sanitary media and strong corrosive high-viscosity media.

Application:

1. Chemical Industry: Fat, dissolvent, resin, paint, pigment, oil agent.
2. Other Industry: Construction industry, plastic industry, textile industry, coal floatation agent.
3. Food Industry: Yogurt, ice cream, cheese, soft drink, fruit jelly, ketchup, oil, syrup, chocolate.
4. Daily Chemicals: Facial foam, hair gel, hair dyes, toothpaste, shampoo, shoe polish, cosmestics.
5. Pharmacy: Nutrition liquid, chinese traditional patent medicine, medicine grease, biological products.

Feature:

1. The viscosity of the transportable medium is ≤2000000 cp, and the pump can transfer slurry containing 70% solids.
2. There is a certain gap between rotor and rotor, no friction coefficient, so pump has a long service life time.
3. It is easy to install and disassemble,and it is convenient to maintain, clean .There are less wearing parts.
4. High efficiency and energy saving, stable transportation, low failure rate, no leak sealing and low noise.
5. With VFD, the flow can be adjusted at will, and the pump can be used as a general metering pump.
6. It can transport gas, liquid and solid three-phase mixture materials.
7. If needed, we can do the pump with a heating jacket.

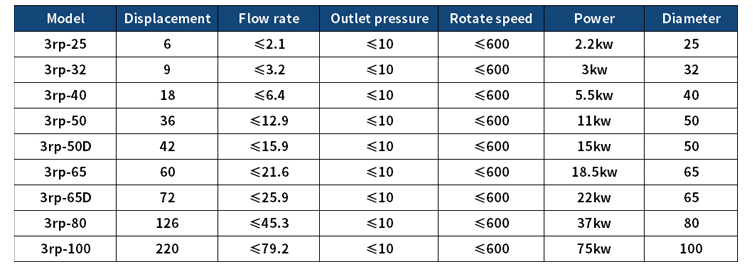

Performance Data:

Model	Flow		Pressure	Rev	Power	Inlet/outlet size
Model	(L/100r)	(m3/h)	(Mpa)	(rpm)	(kW)	(mm)
3RP-25	6	≤1.8	0-1.0	≤600	0.75	25
3RP-32	9	≤2.7	0-1.0		1.1	32
3RP-40	18	≤4.3	0.-1.0		1.5	40
3RP-50	36	≤8.6	0-1.0		2.2	50
3RP-65	60	≤14.4	0-1.0		4	65
3RP-80	105	≤25.2	0-1.0		11	80
3RP-100A	125	≤30	0-1.0		15	100
3RP-100	150	≤36	0-1.0		18.5	100
3RP-125	250	≤60	0-1.0		22	125
