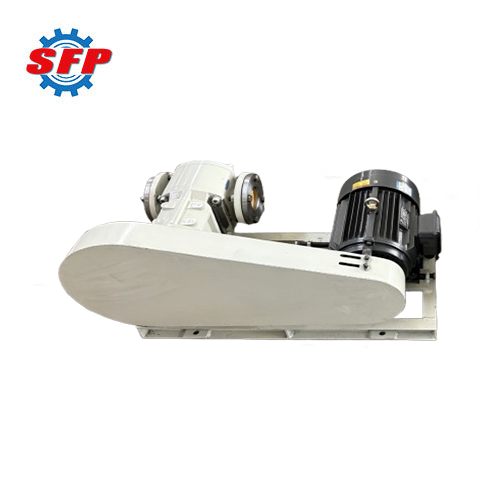

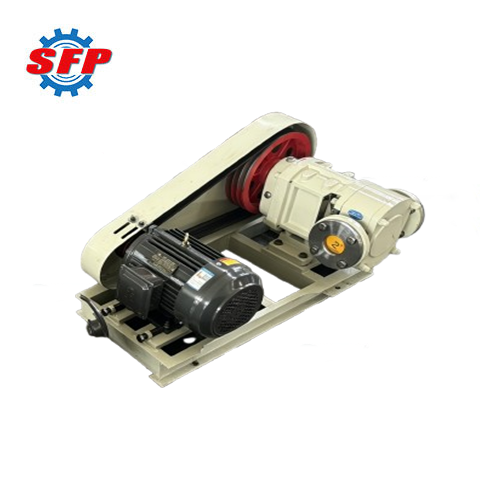

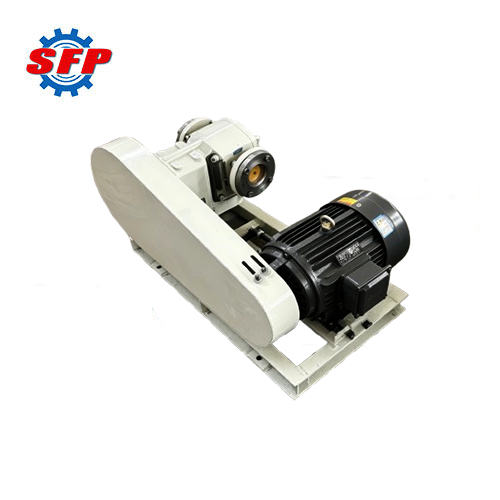

3RP series high viscosity lobe pump is a versatile bidirectional positive displacement pump capable of conveying high-viscosity fluids, fluids containing solid particles, or shear-sensitive fluids in industries such as food, beverages, personal care, biopharmaceuticals, chemicals, petroleum, marine, and paper manufacturing. Its high corrosion resistance, superior self-priming capability, strict hygiene standards, and low-pulsation operation enable it to preserve the original properties of media such as meat sauces, jams, pharmaceuticals, and chemical substances while significantly enhancing both product quality and transfer efficiency.
Product Details:
3PR rotary lobe pump uses two cam rotors rotating in opposite directions in sync to draw in and discharge the fluid. During operation, the two rotors rotating in opposite directions in sync divide the rotor chamber into several small compartments. As the rotors rotate, the enclosed volume on the inlet side gradually increases, creating a vacuum that draws the medium into the pump chamber. This medium is then sealed within the chamber by the rotors and pushed axially toward the outlet. At the outlet, the meshing of the rotors causes the enclosed volume to gradually decrease, forcing the medium out and completing the entire delivery cycle.
.jpg)
Application:
1. Pharmaceutical Industry: It can be used to convey pastes, emulsions, ointments, or viscous slurries and emulsions.
2. Food Industry: It is applicable for conveying milk, cream, cheese blocks, whey, jam, pudding, vegetable oil, honey, sugar syrup.
3. Paper and Printing Industry: It can be used to process clay, high-viscosity inks, pulp of various concentrations, and short-fiber pulp.
4. Personal Care: This equipment is suitable for conveying face creams, lotions, hair gels, hair dyes, and other similar products in the cosmetics industry.
5. Chemical Industry: It is suitable for conveying various suspensions, oils, colloidal slurries, adhesives, resins, inks, paints, paraffin, and various acid, alkali, and salt solutions
Feature:
1. It features outstanding self-priming capability, allowing startup without priming, and is suitable for use in various suction conditions.
2. The equipment can be repaired without disassembling the piping, enabling rapid repairs and significantly reducing downtime for maintenance.
3. This equipment maintains a specific clearance between rotors, ensuring no friction, and the clearance between the rotors and the housing is adjustable to extend service life effectively.
4. The pump handles a wide range of fluid viscosities, operates smoothly, and runs at low speeds. It utilizes high-quality seals to extend the service life of wear parts, ensuring leak-free operation and maintaining a clean production environment.
