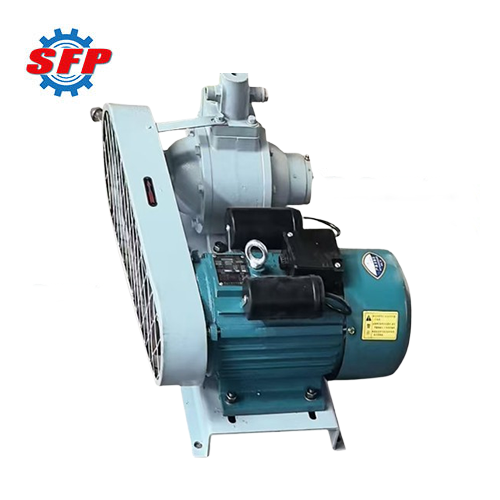

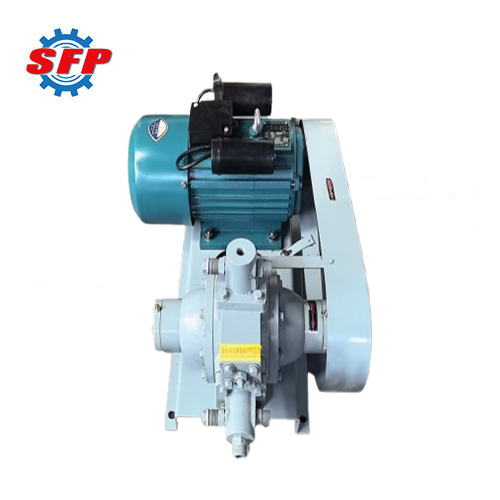

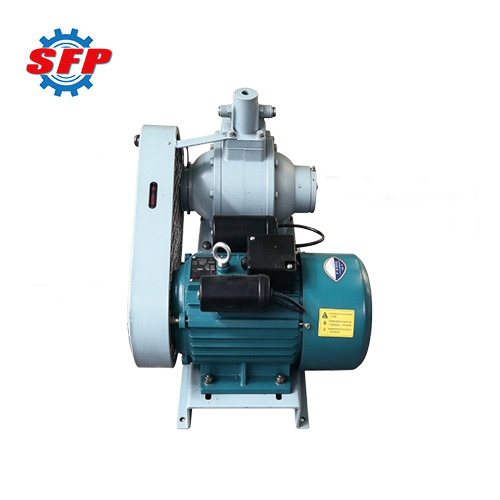

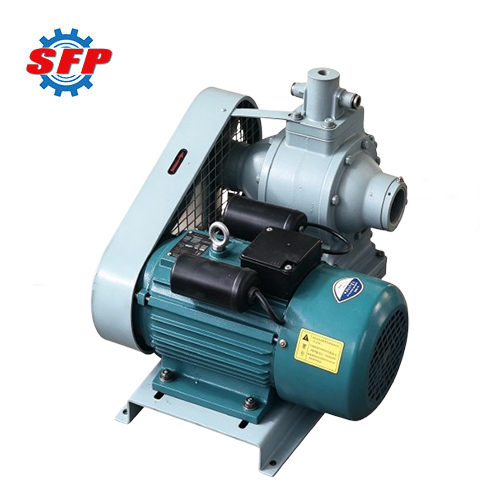

LPG gas transfer machine enables users to handle liquefied petroleum gas, propane, ethylene oxide, methanol, butadiene, and similar media, and is used in applications such as automotive gas stations, lpg loading and unloading, and refueling stations. This series of pumps is designed with the specific characteristics of LPG transfer and actual operating conditions in mind, utilizing the working chamber formed between the rotor and the pump body to achieve continuous suction and discharge of the medium, fulfilling the liquid transfer requirements between pipelines and storage equipment. Its positive displacement transfer principle, stable operation, compact design, and safe and reliable performance render it a stable and dependable transfer solution for industrial sectors that use LPG as fuel or a raw material.
Product Details:
When the LPG transfer pump starts, the rotor rotates inside the pump housing and maintains a tight fit against the inner walls of the pump chamber, forming multiple relatively independent working chambers between adjacent vanes. As the chambers pass the inlet, their volume gradually increases, causing the internal pressure to drop; the gas is then drawn into the pump chamber by the system pressure. The medium is then forced toward the discharge port as the rotor continues to rotate, where the chamber volume gradually decreases, causing the medium to be compressed and discharged through the discharge port.
Application:
LPG transfer pumps serve both to transfer liquid between storage tanks and between storage tanks and filling equipment, and to load, unload, and transfer liquefied petroleum gas. In practical applications, they can be used for filling LPG cylinders, loading and unloading LPG tank trucks, and at automotive refueling stations.
Feature:
1. It can maintain a relatively stable conveying capacity under appropriate operating conditions.
2. This pump can be fitted with optional safety protection devices, such as overload protection and ground fault protection, to ensure safety and reliability during operation.
3. The overall layout of this equipment is relatively compact, making it easy to integrate with LPG loading and unloading equipment, storage tank systems, and skid-mounted conveying units.
Performance Data:
| Model |
Speed
(r.p.m) |
Flow
(m³/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
| YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
| YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
| YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
| YQB15-5 |
780 |
15 |
| YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
| YQB10-5A |
600 |
10 |
| YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
| YQB35-5 |
780 |
35 |
| YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
