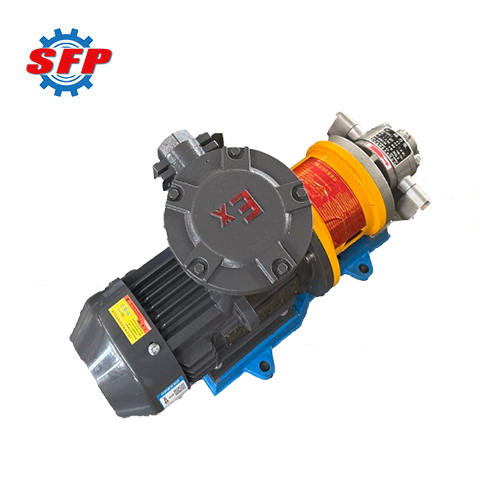

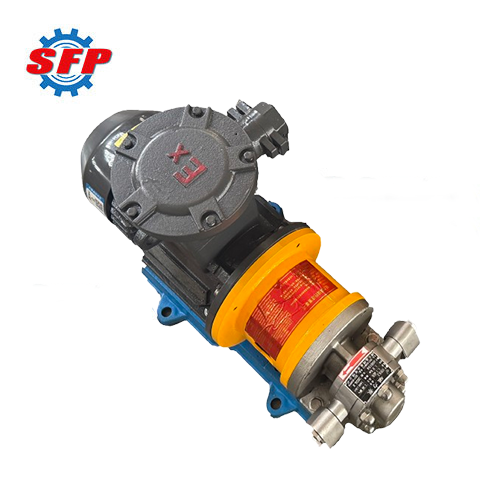

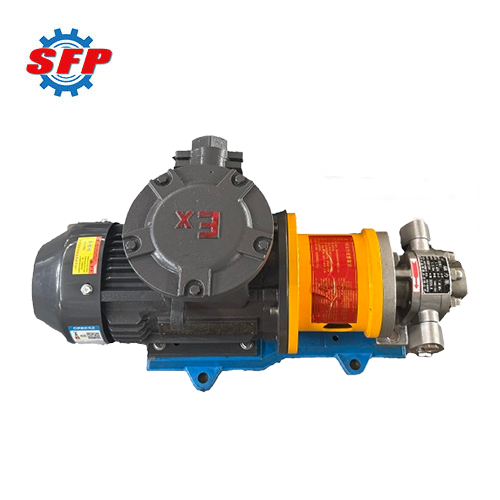

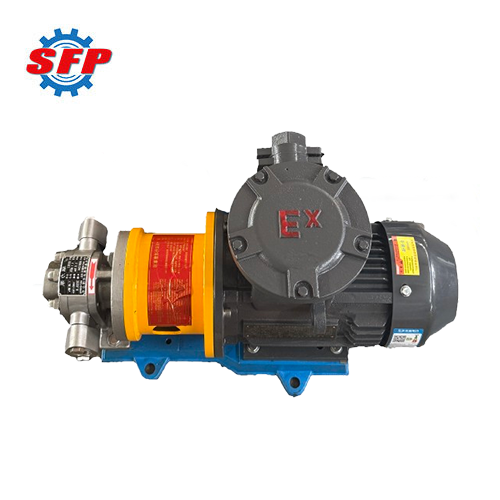

KCB magnetic drive pumps adopt a magnetic drive design, making them ideal for applications with strict requirements for fluid containment, cleanliness of the operating environment, and stable, continuous equipment operation, especially when handling volatile and flammable fluids, offering a more reliable pumping solution. In conveying industrial fluids such as fuel oil, heavy oil, and lubricating oil, this design not only prevents fluid loss due to leaks but also reduces the frequency of equipment maintenance.
Product Details:
Following the startup of the KCB gear oil pump, as the drive gear and driven gear begin to separate on the suction side, a certain degree of negative pressure is created inside the pump chamber, causing the fluid to enter the chamber under the influence of atmospheric pressure or inlet pressure. The liquid moves along the interior of the pump housing from the suction side to the discharge side as the gears rotate. When the two gears re-mesh, the space between them gradually decreases, causing the liquid to be squeezed and forced into the discharge line, thereby creating a continuous delivery process.
Application:
KCB series magnetic gear pumps, thanks to their magnetic design, achieve zero leakage when pumping fuel, lubricating oil, or volatile liquids, making them broadly applicable in the petroleum, chemical, lubrication, heating, and industrial boiler industries.
Feature:
1. The pump allows for the selection of appropriate materials for the pump body, gears, and related components based on the specific medium and operating conditions to meet the transfer requirements of various operating scenarios.
2. Its magnetic drive design effectively reduces reliance on seals, thereby minimizing maintenance issues caused by wear, aging, or improper installation of mechanical seals.
3.With its compact design, it is suitable for use in fuel supply, oil transfer, boiler systems, and oil loading and unloading applications.
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust pressure P |
Motor |
| m³/h |
l/min |
r/min |
Mpa |
Power Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
