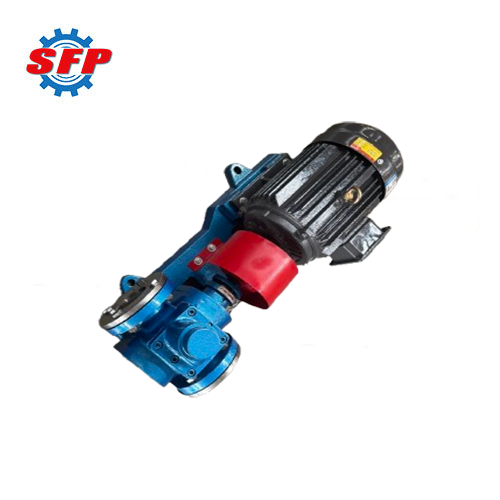

  • YCB Series Circular Arc Gear Pump

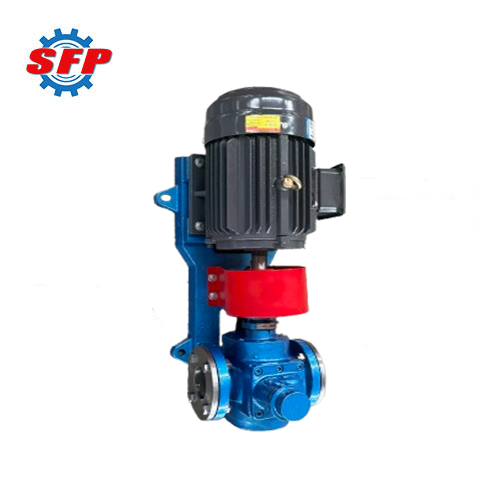

  • YCB Series Gear Pump for Fuel Oil

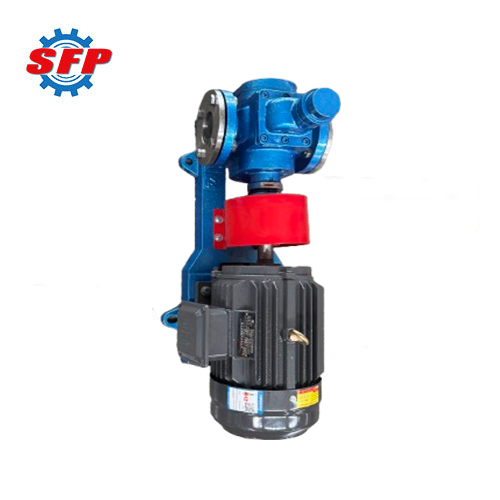

  • YCB Heavy Fuel Oil Transfer Pump

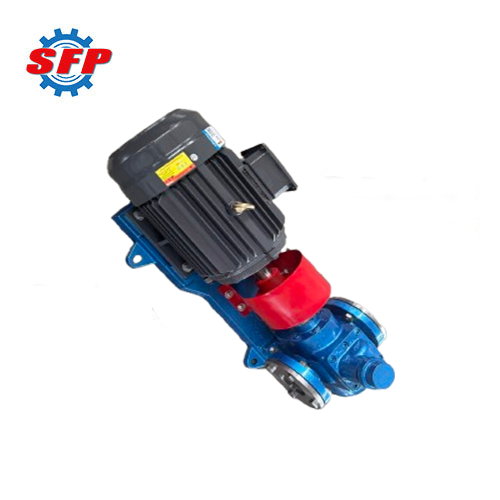

YCB Series Electric Gear Oil Pump
YCB Series Electric Gear Oil Pump
YCB Cast Iron Gear Pumps
The YCB cast iron gear pump is specialized for oil transfer, pressurization, and circulation applications, designed to ensure the stable delivery of diesel, machine oil, lubricating oil, fuel, or other lubricating oil-based media. This equipment relies on the pumping capacity generated by gear meshing to maintain good delivery continuity even when oil viscosity changes, providing a stable and efficient solution for oil depots, fuel transportation, boiler fuel supply, and lubrication systems for mechanical equipment.
Flow Rate: 0.6-97m³/h
Viscosity: ≤1500mm²/s
Discharge Pressure: 0.6/1.6Mpa
Product Description
Summarize:

YCB gear oil pump combines a reliable gear drive mechanism with a robust cast iron pump housing, specifically designed to meet the demands of industrial applications for continuous delivery, stable oil supply, and equipment durability, enabling it to perform exceptionally well under various operating conditions. Compared to traditional involute gears, this pump employs a circular arc gear pump design, which improves the force distribution during gear meshing to reduce unnecessary slippage, resulting in more stable operation and effectively reducing mechanical wear and operational noise.

Product Details:
YCB gear pump features a cast iron pump body and consists primarily of gears, shafts, the pump body, the pump cover, bearings, and shaft end seals. When the equipment starts up, as the gears rotate from the suction side, a low-pressure area forms between the gear teeth, allowing fluid to enter the pump chamber under external atmospheric pressure and be carried to the discharge side as the gears rotate. Upon reaching the discharge zone, the gears re-mesh, gradually reducing the volume between the teeth while compressing the fluid, which is then continuously discharged, achieving a stable delivery process.
Application:
YCB horizontal gear pumps serve various applications, including oil transfer, lubricant circulation, fuel supply, hydraulic power, and industrial oil transportation. For example, in oil depots and storage and transportation systems, they can transfer oil from storage tanks to pipelines or other equipment, or they serve in industrial boilers and combustion systems for fuel supply and pressurization.
Feature:
1. The device's traditional involute gears reduce unnecessary slippage during meshing, effectively minimizing mechanical wear and operating noise.
2. With each rotation, the gears form a relatively fixed working volume, making the pump available for applications requiring continuous, uniform oil delivery.
3. The YCB series is meticulously optimized for the fit between internal transmission components, ensuring the pump maintains stable operation during continuous delivery.
Performance Data:
Model Flow
(m³/h)
Pressure
(Mpa)
Rev
(rpm)
Npshr
(m)
Frequency
(hz)
YCB0.6-0.6 0.6
1.0
0.7
1.2
0.6 910
1390
1130
1710
5.5 50
50
60
60
YCB0.6-1.6 0.6
1.0
0.7
1.2
1.6 910
1400
1130
1710
7.0 50
50
60
60
YCB1.6-0.6 1.6
2.5
1.9
3.0
0.6 910
1400
1130
1710
5.5 50
50
60
60
YCB1.6-1.6 1.6
2.5
1.9
3.0
1.6 940
1440
1150
1750
7.0 50
50
60
60
YCB3.3-0.6 3.3
5.0
4.0
6.0
0.6 940
1420
1150
1730
5.0 50
50
60
60
YCB3.3-1.6 3.3
5.0
4.0
6.0
1.6 960
1440
1170
1750
7.0 50
50
60
60
YCB4-0.6 4.0
6.0
4.8
7.2
0.6 940
1420
1150
1730


5.0 50
50
60
60
YCB4-1.6 4.0
6.0
4.8
7.2
1.6 960
1440
1170
1750
7.0 50
50
60
60
YCB8-0.6 8.0
12.0
9.6
14.4
0.6 960
1440
1170
1750
5.0 50
50
60
60
YCB8-1.6 8.0
12.0
9.6
14.4
1.6 970
1460
1170
1760
7.0 50
50
60
60
YCB10-0.6 10.0
15.0
12.0
18.0
0.6 960
1440
1170
1750
5.0 50
50
60
60
YCB10-1.6 10.0
15.0
12.0
18.0
1.6 970
1470
1170
1770
7.0 50
50
60
60
