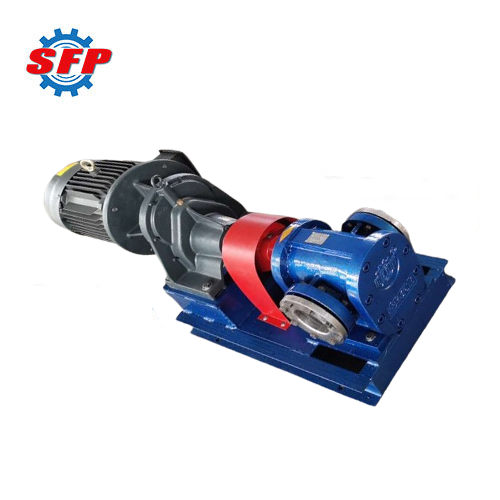

2CY gear pump is a product intended for the transfer of lubricating oil, fuel oil, and other lubricating fluids, making it suitable for industrial applications such as oil transfer, fuel delivery, and lubrication circulation systems. This equipment uses gear meshing to transfer the fluid, which ensures stable fluid delivery across a wide range of operating conditions, making it effective for equipment and production systems that require stable flow rates and continuous oil supply.
Product Details:

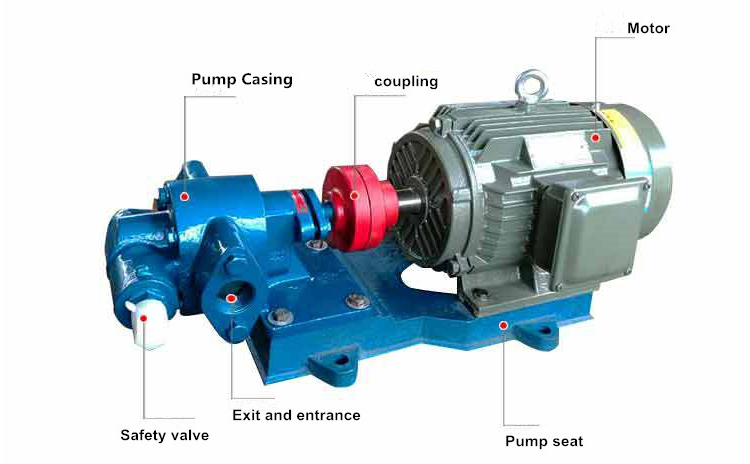

When the 2CY series gear pump is operating, the gears begin to rotate from the suction side, causing the clearance between the gears and the pump casing to gradually widen until a low-pressure zone forms inside the pump chamber, thereby drawing fluid into the pump. As the gears continue to rotate, fluid is drawn into the spaces between the gear teeth and flows along the pump chamber toward the discharge port. Upon re-engagement of the gears, the clearance between the teeth gradually decreases, forcing the fluid to be squeezed and continuously discharged through the discharge port.
.png)
Application:
1. It finds application in the petrochemical and refining industries for the transfer of various lubricating oils and fuel oils.
2. This product also excels as a transfer and pressure pump, effectively overcoming pipeline resistance to deliver oil products to designated locations.
3. In industrial combustion systems, this equipment can serve as an injection pressure pump for heavy oil or fuel oil, supplying high-pressure fuel at a stable pressure to the burner to ensure efficient combustion.
Feature:
1. The unique gear tooth profile design ensures extremely low operating noise, helping to maintain a quiet production environment.
2. With its compact structure and well-designed configuration, this equipment can provide a stable flow continuously over the long term under various operating conditions.
3. The key components of this equipment are made of high-quality materials and have undergone special heat treatment to enhance wear and abrasion resistance, thereby extending its service life.
