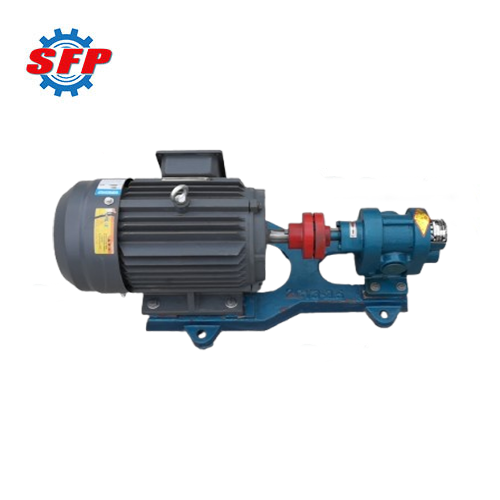

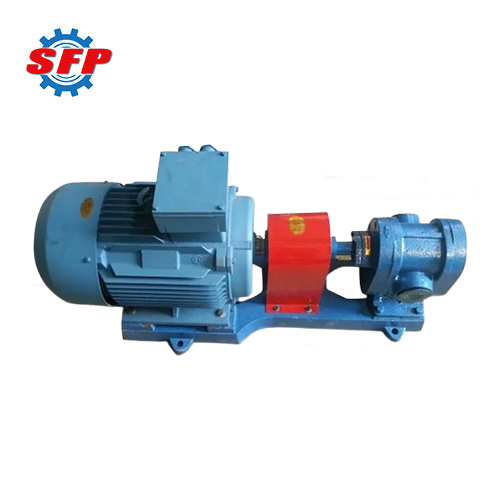

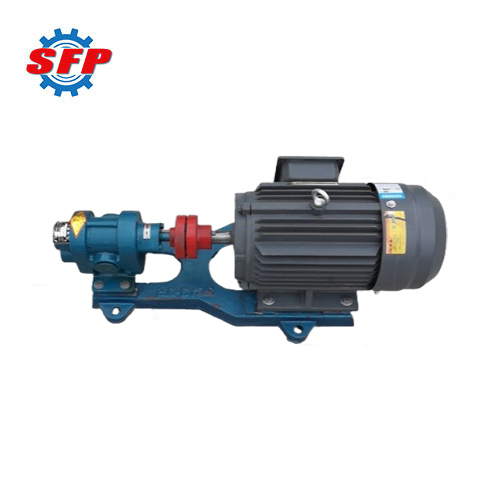

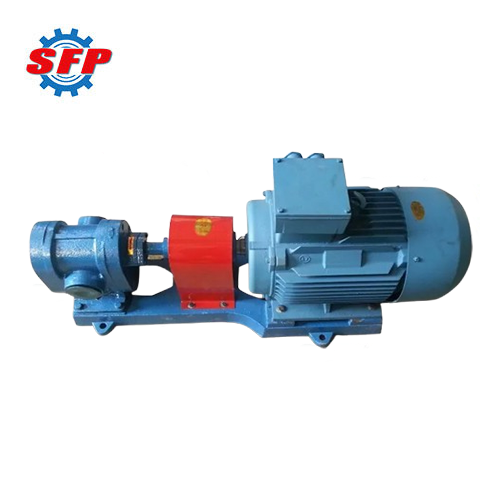

2CY series gear pumps feature low pressure pulsation, quiet operation, and high tolerance for oil contamination, they are commonly used in oil depots, docks, ships, factories, mines, and other applications to handle non-corrosive lubricants or equivalent fluids free of solid particles and fibers. Equipped with an integrated safety valve design, these pumps provide overload protection without requiring an external overflow circuit, effectively reducing system costs and minimizing maintenance downtime.
Product Details:
2CY series lubricating oil gear pump primarily consists of gears, shafts, pump covers, bearing bushings, and bearing seals. Its gears undergo nitriding treatment for high hardness and wear resistance, with all moving components lubricated by the conveyed medium. The bearing bushings are mounted with floating clearance within the pump body, allowing end clearance to adjust according to operating pressure automatically. This design ensures stable internal pressure, low output flow, and high volumetric efficiency.
Application:
1. Lubricating oil pumps suitable for all industrial applications.
2. Can be used as transfer pumps, booster pumps, and injection pumps in fuel systems.
3. This pump is able to serve as transfer pumps and booster pumps in oil transmission systems.
4. Its functions as a hydraulic pump, providing hydraulic power for hydraulic transmission systems.
Feature:
1. This pump features a compact overall structure with a small footprint, facilitating easy installation and maintenance.
2. It employs cutting-edge technology to ensure uniform fluid flow within the pump body, delivering stable and reliable flow output.
3. With a unique gear tooth design and high-precision machining technology, it operates at extremely low noise levels, creating a quieter and more comfortable working environment.
4. All critical components are crafted from premium alloy steel or cast iron, subjected to specialized heat treatment processes. This significantly enhances wear resistance and corrosion resistance, extending the service life.
Performance Data:
| Model |
Capacity Q |
Pressure |
Power |
Speed |
Inlet/Outlet Diameter
mm |
| m³/h |
L/min |
M pa |
Kw |
r/min |
| 2CY-0.6/2.5 |
0.6 |
10 |
2.5 |
61 |
940 |
G3/4” |
| 2CY-1.08/2.5 |
1.08 |
18 |
1400 |
| 2CY-1.5/2.5 |
1.5 |
25 |
63 |
960 |
G1” |
| 2CY-2.1/2.5 |
2.1 |
35 |
1420 |
| 2CY-3/2.5 |
3 |
50 |
1440 |
| 2CY-4 |
4 |
66 |
0.75 |
65 |
960 |
| 2CY-4.2/2.5 |
4.2 |
70 |
2.5 |
1440 |
G1 1/4” |
| 2CY-5-2.5 |
5 |
83 |
960 |
G1 1/2” |
| 2CY-6-2.5 |
6 |
100 |
67 |
1440 |
| 2CY-7 |
7 |
116 |
0.75 |
63 |
960 |
| 2CY-7.5/2.5 |
7.5 |
125 |
2.5 |
67 |
1440 |
| 2CY-8.5/2.5 |
8 |
135 |
69 |
960 |
G2’ |
| 2CY-12/2.5 |
12 |
200 |
1450 |
| 2CY-18/2.5 |
18 |
300 |
70 |
970 |
80mm |
| 2CY-20/2.5 |
20 |
335 |
1470 |
| 2CY-30/2.5 |
30 |
500 |
1470 |
| 2CY-38/1.0 |
30 |
633 |
1.0 |
72 |
980 |
100mm |
