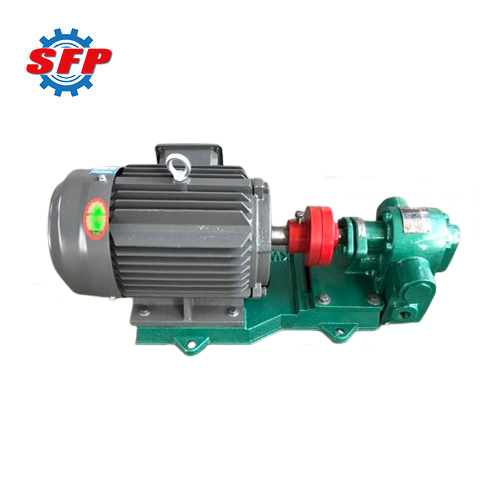

  • LCB Series Electric Gear Oil Pump

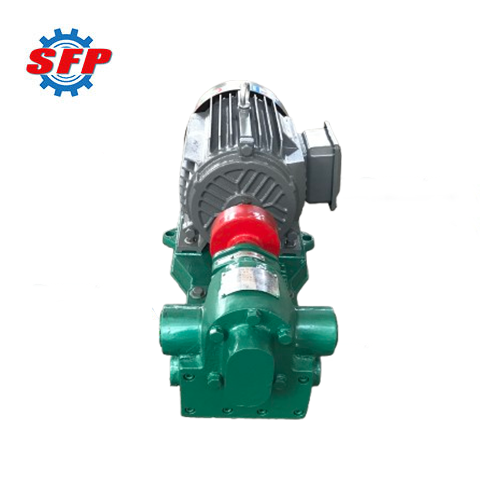

  • LCB Bitumen Transfer Pump

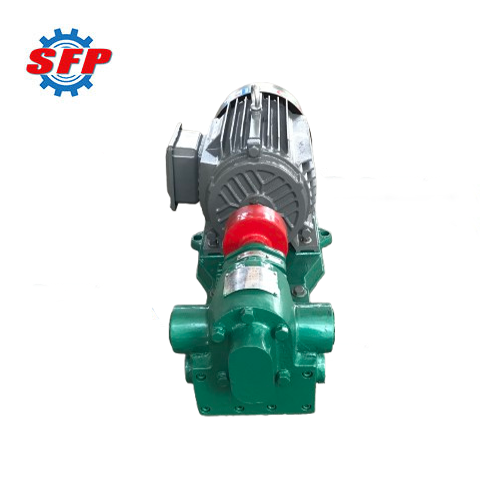

  • LCB Series Asphalt Gear Pump

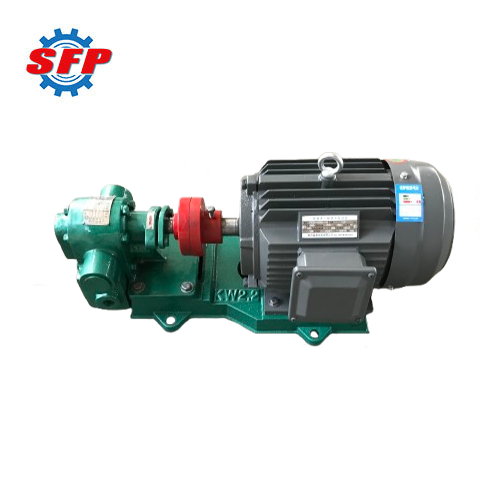

LCB High Viscosity Oil Transfer Pump
LCB High Viscosity Oil Transfer Pump
LCB Gear Fuel Oil Pump
LCB gear fuel oil pumps are specifically designed for conveying high-temperature, high-viscosity oils such as asphalt, lubricating oil, and heavy oil, as well as corrosive media, primarily used in asphalt spraying operations for road and plaza construction projects, and across industries including machinery, metallurgy, chemical, petroleum, construction, and papermaking. Furthermore, this equipment features an insulated jacket that enables heating or cooling of the conveyed fluid. Consequently, it is particularly well-suited for outdoor installations and processing scenarios in frigid regions where temperature maintenance of the medium is required.
Power: 1.5-30kW
Flow Rate: 1-58m³/h
Pressure: 0.28Mpa-1.0Mpa
Product Description
Summarize:

LCB series oil gear pump is a high-performance external gear pump specifically designed for media of varying viscosities, offering advantages such as high volumetric efficiency, bidirectional rotation, low pulsation, and low noise. This equipment is suitable for processing media like asphalt, lubricating oil, and heavy oil in industries including metallurgy, chemical processing, petroleum, and machining. Featuring an insulated jacket design, it can be heated via steam or thermal oil circulation, ensuring stable operation even in low-temperature environments.

Product Details:
LCB series high viscosity gear pump employs a hollow sandwich structure as its primary relief component, enabling both liquid conveyance and pump body heating/insulation. The body is constructed from cast steel, offering a service life five times that of cast iron. Manufactured from Class II Q235 steel, it meets requirements for conveying heavy oil and asphalt below 350°C that are non-corrosive and free of solid particles.
Application:
LCB series horizontal oil transfer pumps are suitable for conveying non-corrosive, solid-particle-free, and curable media with temperatures up to 300°C and viscosities ranging from 5 to 1500 cst. This equipment can be used with thermal oil, steam, hot water, cold water, and other media requiring liquid transfer. It is ideal for heating, conveying, and cooling applications, making it suitable for room-temperature curing, outdoor installations in cold regions, and scenarios requiring thermal insulation.
Feature:
1. The pump delivers excellent fluid conveyance capabilities, efficiently transporting various liquid media to meet diverse user requirements.
2. Featuring a compact design, the LCB centrifugal pump occupies minimal space during installation and operation, facilitating flexible placement in diverse environments.
3. The use of premium materials and advanced manufacturing techniques ensures the pump's reliability and stability, effectively reducing maintenance and replacement frequency.
Performance Data:
Model Rated Flow Rate Working Pressure MPA Vacuum Suction Height
(mm)
Diameter
(mm)
Motor Power
L/min m³/h
LCB1/0.36
LCB1/0.6
16.6 1 0.36
0.6
3 25 1.5
1.5
LCB2/0.36
LCB2/0.6
33.3 2 0.36
0.6
3 25 1.5
2.2
LCB3/0.36
LCB3/0.6
50 3 0.36
0.6
3 25 1.5
2.2
LCB4/0.6
LCB4/1.0
66.4 4 0.6
1.0
5 30 1.5
2.2
LCB5/0.36
LCB5/0.6
83.3 5 0.36
0.6
5 40 2.2
4.0
LCB6/0.36
LCB6/0.6
100 6 0.36
0.6
5 40 3.0
4.0
LCB7/0.6
LCB7/1.0
116 7 0.6
1.0
5 50 3.0
4.0
LCB10/0.6
LCB10/1.0
167 10 0.6
1.0
5 50 4.0
5.5
LCB12/0.36
LCB12/0.6
200 12 0.36
0.6
5 55 4.0
5.5
LCB18/0.36
LCB18/0.6
300 18 0.36
0.6
5 70 5.5
7.5
LCB25/0. 6 416 25 0.6 5 100 7.5
LCB29/0.36
LCB29/0.6
483.3 29 0.36
0.6
5 70 7.5
11.0
LCB38/0.36
LCB38/0.6
633 38 0.36
0.6
5 100 11.0
15.0
LCB58/0.36
LCB58/0.6
960 58 0.36
0.6
5 18.5
22
