Product Description

Summarize:

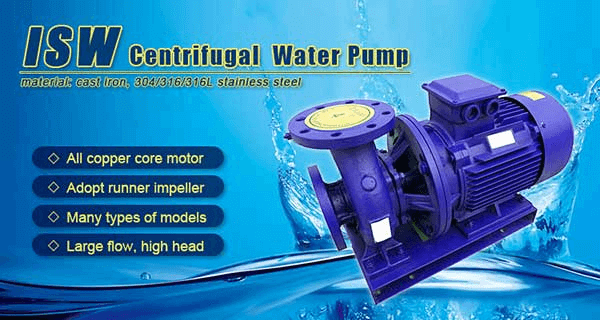

ISW centrifugal chemical pump is an energy efficient product featuring smooth running, low noise and high concentricity of components. In order to ensure that the pump operates without vibration, the motor adopts low-noise bearings and the impeller adopts the best static and dynamic balance design. Moreover, its shaft is made of hard alloy wear-resistant material, which solves the problem of serious leakage of packing seal of centrifugal pump, thus prolonging the service life and ensuring the tidiness of the operation place.

Application:

ISW series centrifugal pump consists of motor, pump body, impeller, bearing and sealing device and other components. When the pump is started, it is connected to the impeller of the pump through the shaft, which drives the impeller to rotate in high speed. The rotation of the impeller produces a low-pressure area, and the liquid in the pump body is under negative pressure and enters the pump casing. When the liquid leaves the impeller and enters the pump casing, due to the gradual expansion of the flow channel in the pump casing, the liquid flow rate slows down, and part of the kinetic energy is converted into static energy, which flows into the discharge pipe along the cutting direction.

Application:

It is used for transferring clear water and other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire-fighting pressurization, long-distance transportation, heating and ventilation refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment matching.

Feature:

1. With simple and reasonable structure, key components are made of high quality and durable parts, the trouble-free time of the whole machine is greatly improved.
2. The static and dynamic balancing of the shaft and impeller with excellent absolute concentricity ensures smooth operation without vibration.
3. The pump body is supported by two low-noise bearings, running smoothly, almost no noise except the weak sound of running.
4. The use of different materials of hard alloy seals to ensure that there is no leakage when conveying different media.

Performance Data:

Model	Capacity (m3/h)	Lift head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
15-80	1.1 1.5 2.0	8.5 8 7	2800	0.18	15
20-110	1.8 2.5 3.3	16 15 13.5	2800	0.37	20
20-160	1.8 2.5 3.3	33 32 30	2900	0.75	20
25-110	2.8 4 5.2	16 15 13.5	2900	0.55	25
25-125	2.8 4 5.2	20.6 20 18	2900	0.75	25
25-125A	2.5 3.6 4.6	17 16 14.4	2900	0.55	25
25-160	2.8 4 5.2	33 32 30	2900	1.5	25
25-160A	2.6 3.7 4.9	29 28 26	2900	1.1	25
32-100	4.5	12.5	2900	0.55	32
32-100（I）	4.4 6.3 8.3	13.2 12.5 11.3	2900	0.75	32
32-125	3.5 5 6.5	22 20 18	2900	0.75	32
32-125A	3.1 4.5 5.8	17.6 16 14.4	2900	0.55	32
32-160	6.5	32	2900	1.5	32
32-160A	4	25	2900	1.1	32
32-160(I)	4.4 6.3 8.3	33.2 32 30.2	2900	2.2	32
