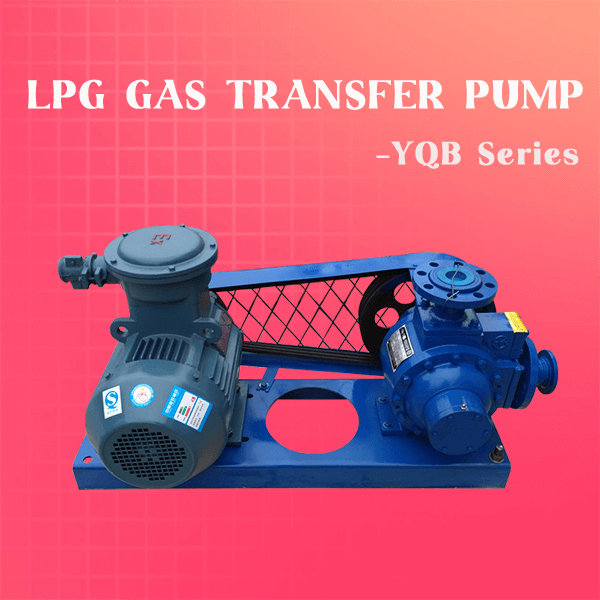

Recommend Industrial Small Liquefied Petroleum Gas Filling Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

LPG Gas Pump for Sale

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

LPG gas transfer pump has the characteristics of reliable performance, corrosion resistance, strong self-priming ability, compact structure, easy maintenance, etc. This pump is usually used to handle methanol, propylene, propane, liquid ammonia, ethylene oxide and various volatile liquids with similar properties. It can be used in work places such as loading and unloading of liquefied petroleum gas, filling of steel cylinders, feeding of workshops, as well as chemical, petroleum, pharmaceutical and other industries.

Product Details:

LPG gas filling pump is a positive displacement vane pump with advanced structure. The stator surface is made of composite curved surface, mechanical seals are used at both ends, and "O" type sealing rings are used on each fixed end face. When the rotor rotates, the volume of the oil inlet chamber gradually increases, forming negative pressure and generating suction, thereby sucking in the oil. When the rotor rotates to a certain angle, the volume gradually decreases, thereby discharging the oil. In addition, the matching parts of the rotating motion are all metal rather than non-metal, which is safe and reliable to use and has the function of one machine with multiple uses.

Application:

LPG transfer pumps are capable not only of filling storage tanks with liquefied petroleum gas, but also of transferring it from one tank to another for storage or transportation. They can also be used in hydraulic vapor recovery systems to improve energy efficiency.

Feature:

1. The internal rotating moving parts of this product adopt metal and non-metal cooperation to avoid static electricity.
2. Lpg gas transfer pump adopts explosion-proof motor with high safety performance.
3. The motor can be fine-tuned to reduce vibration and run smoothly.
4. Adopting belt type transmission, easy to maintain and repair.

Performance Data:

Model	Speed (r.p.m)	Flow (m³/h)	Pressure Difference (MPa)	Working Pressure (MPa)	Power (kW)	Inlet Size (inch)	Outlet Size (inch)	Temperature Range (℃)
YQB2-5	600	2	0.5	1.6	1.5	1	1	+40 -40
YQB5-5	780	5	0.5	1.6	2.2	1.2	1.2	+40 -40
YQB10-5	600	10	0.5	1.6	5.5	2	2	+40 -40
YQB15-5	780	15	0.5	1.6	5.5	2	2	+40 -40
YQB15-5A	780	15	0.4	1.6	4	2	2	+40 -40
YQB10-5A	600	10	0.4	1.6	4	2	2	+40 -40
YQB25-5	600	25	0.5	1.6	11	3	3	+40 -40
YQB35-5	780	35	0.5	1.6	11	3	3	+40 -40
YQB50-5	600	50	0.5	1.6	15	4	4	+40 -40
YQB60-5	780	60	0.5	1.6	15	4	4	+40 -40
YQB80-5	780	80	0.5	1.6	18.5	4	4	+40 -40
