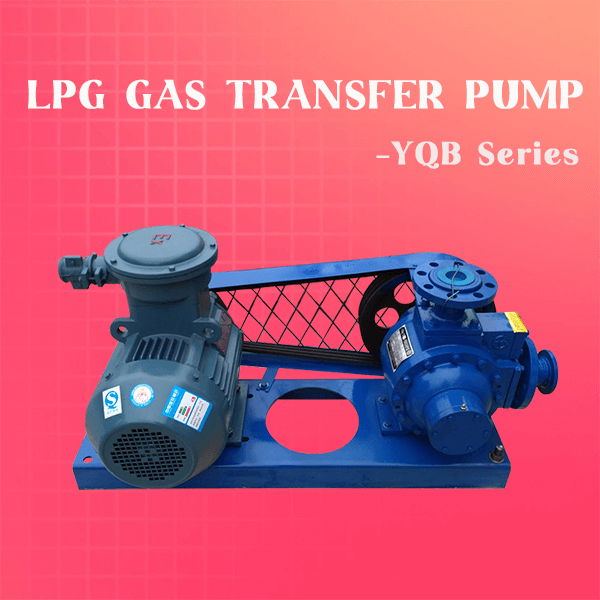

Lpg gas transfer pump is applied to delivery various volatile liquids or petroleum products with similar properties, such as liquefied petroleum gas, liquid ammonia, methanol, propylene, propane, ethylene oxide and other media. Especially suitable for LPG loading and unloading vehicles, gas filling workshops, gas cylinder filling and other workplaces. Moreover, the equipment adopts advanced structural design and high-quality sealing materials to ensure the safety and reliability of the pump when conveying liquefied petroleum gas and other flammable and explosive media.
Product Details:
Lpg gas transfer pump works by centrifugal sliding of the blade, and the flow rate is related to the rotation speed of the shaft. The curved surface is made of the original composite curve, which is composed of a stator and a rotor, a baffle plate and a blade, and the ten sealing cavity is composed of a stator and a rotor. The surface of the stator is a composite curve, when the rotor rotates, the volume of the inlet cavity increases gradually, and the negative pressure is formed. To suck oil into. When the rotor is rotated to a certain angle, the volume section is gradually reduced, thus the oil hydraulic pressure is reduced. Between the oil suction chamber and the pressure oil chamber, an oil block is arranged between the oil suction cavity and the oil pressure cavity. Blade by centrifugal force and two baffle structures. Thus, the surface of the stator is tightly combined with the inner surface of the pump, so that the pump can work normally under the rated condition.
.png)
Application:
1. Gas Conveying: It can be used for gas conveying, especially in the gas system that needs to convey liquefied petroleum gas or other volatile liquids.
2. Volatile Liquid: This pump can also be used for conveying dimethyl ether, chloromethane, ethylene oxide, methanol and other volatile liquids and petroleum products with similar properties.
3. Liquefied Petroleum Gas: This machine is able to convey liquefied petroleum gas, including propane, propylene, butadiene, isobutylene, etc. It is suitable for loading and unloading of liquefied petroleum gas into and out of trucks, filling of cylinders, and supplying of materials to the workshop and other workplaces.
Feature:
1. The internal rotating moving parts of this product adopt metal and non-metal cooperation to avoid static electricity.
2. Lpg gas transfer pump adopts explosion-proof motor with high safety performance.
3. The motor can be fine-tuned to reduce vibration and run smoothly.
4. Adopting belt type transmission, easy to maintain and repair.
Performance Data:
| Model |
Speed
(r.p.m) |
Flow
(m3/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
| YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
| YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
| YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
| YQB15-5 |
780 |
15 |
| YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
| YQB10-5A |
600 |
10 |
| YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
| YQB35-5 |
780 |
35 |
| YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
