Product Description

Summarize:

ZX series centrifugal ump is a single-stage, single-suction centrifugal pump featuring strong self-priming capability and easy operation. It is suitable for conveying clean water, seawater, acidic and alkaline chemical liquids, as well as solid-containing liquid media with solid content not exceeding 30% in applications such as agricultural irrigation, municipal drainage, industrial processes, and environmental protection projects. This equipment eliminates the need for foot valves in piping systems, significantly simplifying pipeline layout, improving the working environment, and reducing production and labor costs.

Product Details:

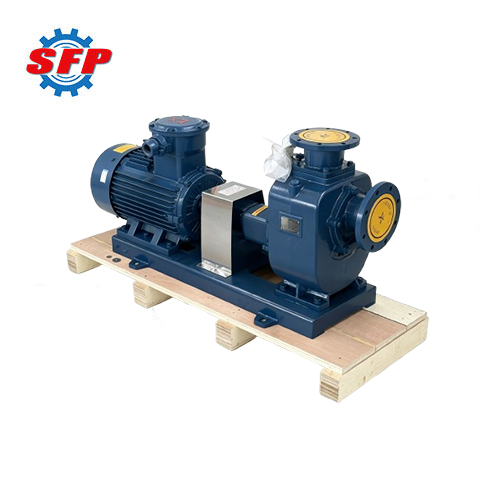

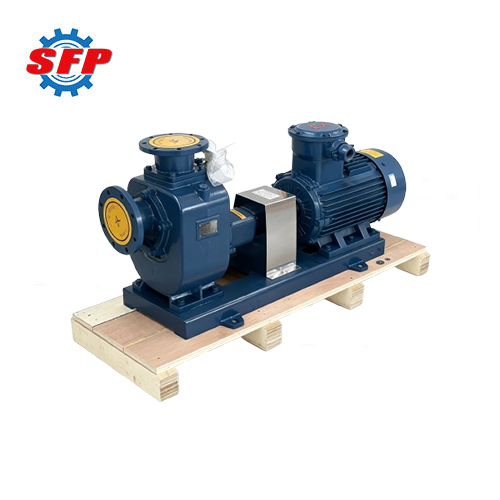

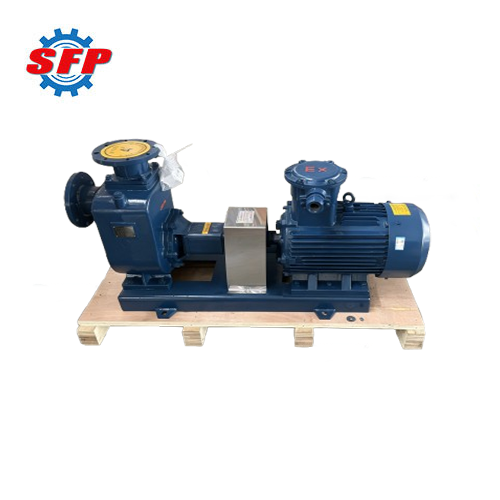

ZX series horizontal self-priming sewage pump adopts a single-stage, single-suction cantilevered structure, primarily consisting of the pump body, impeller, seals, bearings, and coupling. It propels liquid toward the outer edge of the volute chamber through centrifugal force, then discharges it via the pump outlet. The impeller's rotation converts the motor's mechanical energy into the liquid's kinetic and pressure energy, thereby achieving fluid conveyance.

Application:

1. In industrial manufacturing, it serves as an ideal choice for chemical, pharmaceutical, dye, printing and dyeing, brewing, power generation, electroplating, papermaking, petroleum, and mining industries, capable of conveying various chemical liquid media.
2. For agricultural irrigation, when fitted with a swing-arm spray nozzle, this pump propels water into the air where it disperses into fine droplets for misting,which makes it an excellent tool for farms, nurseries, orchards, and tea plantations.
3. In municipal and construction engineering, this pump is widely used in urban environmental protection, building water supply, firefighting systems, equipment cooling, and industrial/mining washing applications.

Feature:

1. Featuring a compact and rational structural design with no check valve, this pump offers simplicity and reliability. It is characterized by easy operation, smooth running, and low maintenance requirements.
2. With exceptional self-priming capability, eliminating the need for a foot valve and requiring only a single priming to achieve lifelong self-priming functionality, making startup operations exceptionally convenient.
3. The pump exhibits excellent corrosion resistance. Materials such as cast iron, stainless steel 304, or 316L can be selected based on the conveyed medium, meeting the specialized demands of industries like chemical processing and pharmaceutical manufacturing.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	m³/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
