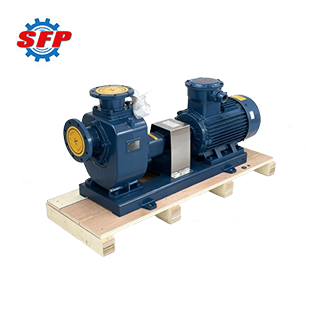

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Product Description

Summarize:

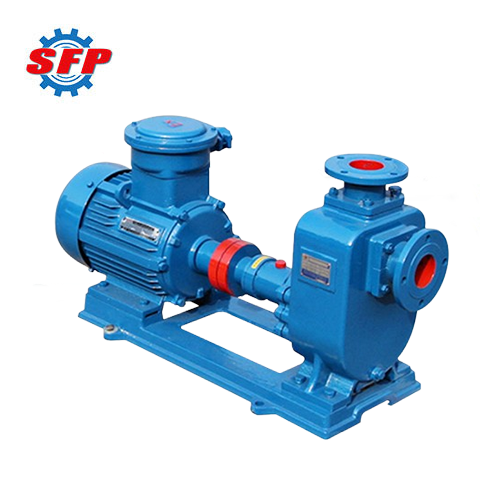

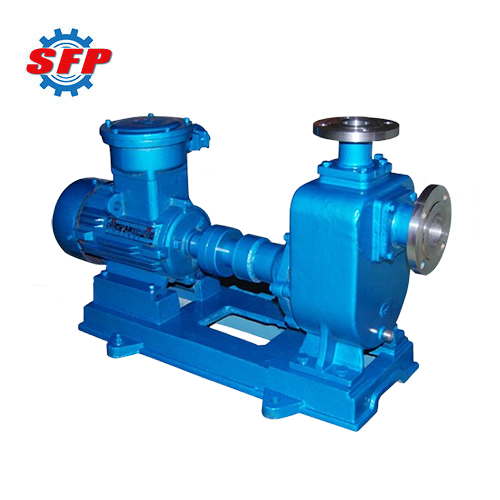

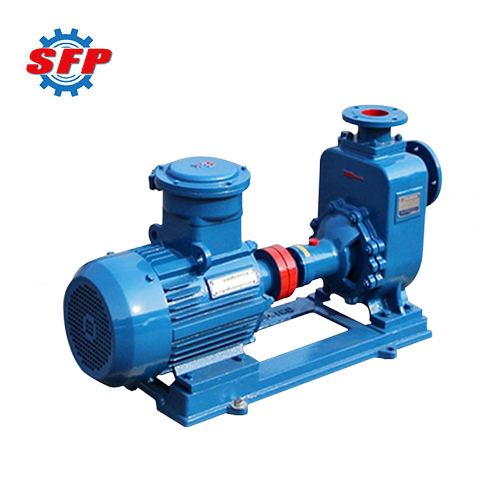

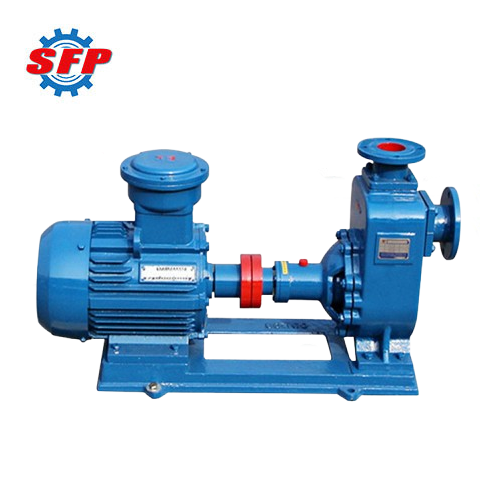

CYZ series horizontal self-priming pump is a self-priming centrifugal oil pump designed to transport oil-based liquids without solid particles and at temperatures not exceeding 80°C, such as fuel oil, diesel, kerosene, gasoline, and other similar media. With its simple structure, smooth operation, high flow rate, high efficiency, ease of adjustment, and wide range of applications, this pump is an ideal choice for oil loading and unloading operations in the petroleum industry, shipping, land-based oil storage facilities, and oil tankers.

Product Details:

CYZ series centrifugal oil pumps consist of a pump body comprising an intake chamber, liquid storage chamber, spiral chamber, liquid return port, and gas-liquid separation chamber. After normal startup, the liquid moves from the center of the impeller to the periphery under the action of centrifugal force, thereby sucking in liquid. The gas-liquid mixture is separated inside the pump, with gas discharged and liquid returning to the storage chamber before re-entering the impeller, completing the self-priming process.

Application:

CYZ series self-priming pumps are designed for the transportation of petroleum products such as diesel, gasoline, kerosene, and aviation kerosene, as well as liquids like seawater and freshwater. These pumps are commonly used as cargo oil pumps, bilge pumps, fire pumps, and ballast pumps on ships, and they are also an ideal choice for the petroleum industry, land-based oil tankers, and oil tankers.

Feature:

1. This pump has strong self-priming capabilities. Before operation, it is only necessary to ensure that the pump body is filled with a specified amount of priming oil.
2. During operation, they exhibit minimal vibration and low noise levels, making them suitable for prolonged continuous operation.
3. Its structural design is rational, with components that are easy to disassemble and replace, thereby reducing maintenance costs.
4. On oil tankers or water transport vessels, they can also serve as bilge pumps, with excellent bilge pumping performance.
5. They can achieve high flow rates while maintaining high operational efficiency.

Performance Data:

Model	Flow m³/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Port(mm)
Model	Flow m³/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Inlet	Outlet
25CYZ-20	3.2	20	6.5	2900	0.75	25	25
25CYZ-32	3.2	32	6.5	2900	1.1	25	25
40CYZ-20	6.3	20	6.5	2900	1.1	40	32
40CYZ-40	10	40	6.5	2900	4	50	40
50CYZ-12	15	12	6.5	2900	1.5	50	50
50CYZ-20	18	20	6.5	2900	2.2	50	50
50CYZ-35	14	35	6.5	2900	4	50	50
50CYZ-40	10	40	6.5	2900	4	50	50
50CYZ-50	12.5	50	6.5	2900	5.5	50	50
50CYZ-60	15	60	6.5	2900	7.5	50	50
50CYZ-75	20	75	6.5	2900	11	50	50
65CYZ-15	30	15	6.5	2900	3	65	50
65CYZ-32	25	32	6	2900	5.5	65	50
80CYZ-13	35	13	6	2900	3	80	65
80CYZ-17	43	17	6	2900	4	80	65
80CYZ-22	40	22	6	2900	5.5	80	65
80CYZ-25	50	25	6	2900	7.5	80	80
80CYZ-32	50	25	6	2900	7.5	80	80
80CYZ-55	60	25	6	2900	18.5	80	80
80CYZ-70	60	70	6	2900	22	80	80
100CYZ-20	100	20	6	2900	11	100	80
100CYZ-40	100	40	6	2900	22	100	100
100CYZ-40A	100	40	6	1470	22	100	80
100CYZ-65	100	65	6	2900	30	100	100
100CYZ-75	70	75	6	2900	30	100	100
150CYZ-45	170	45	5	2900	37	150	100
150CYZ-55	160	55	5	2900	45	150	100
150CYZ-65	170	65	5	2833	55	150	100
150CYZ-80	160	80	5	1450	55	150	100
200CYZ-63	280	63	5	1450	90	200	150
250CYZ-50	400	50	5	1480	90	250	200
300CYZ-50	500	50	5	1450	110	300	250
300CYZ-55	550	55	5	1450	132	300	250
