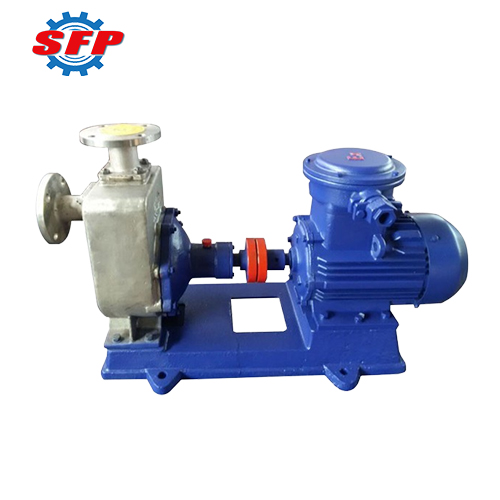

Product Description

Summarize:

CYZ series self-priming oil pump is the latest pump product developed by our company on the basis of digesting, absorbing and improving relevant technical information at home and abroad. The pump can be used to handle oil liquids such as fuel oil, diesel, kerosene, gasoline without contain solid particles and the temperature does not exceed 80°C. It can also meet the transportation requirements of chemical, petroleum, electricity, food, metallurgy and other industrial fields. Moreover, this machine has good self-priming ability, simple structure, smooth operation, convenient adjustment and other characteristics.

Product Details:

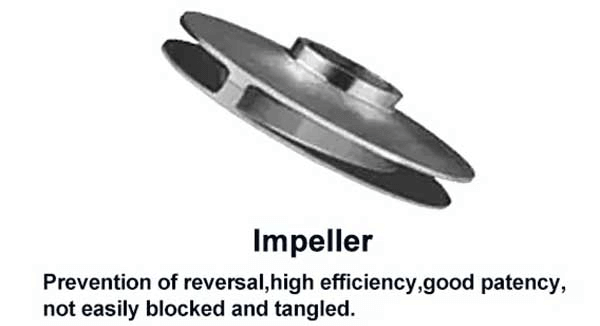

CYZ series self priming oil pump comprises suction room, store liquid room, vortex room, liquid returning hole, gas and liquid dividing room, etc. After the pump starts normally, the impeller sucks in the liquid stored in the suction chamber and the air in the suction pipeline together and mixes them completely in the impeller. Under the action of centrifugal force, the liquid entrained with gas flows to the outer edge of the scroll chamber, forming a white foam belt with a certain thickness and a high-speed rotating liquid ring on the outer edge of the impeller.

Application:

CYZ series self priming oil pump is available for delivering fuel oil, diesel oil, kerosene, gasoline and other media which do not contain solid particles and the temperature does not exceed 80℃. It is an ideal choice for petroleum industry, onshore oil depots and tankers, and can also be used in cargo oil pumps, bilge pumps, fire pumps and ballast pumps of ships and cooling water circulation of machines.

Advantage:

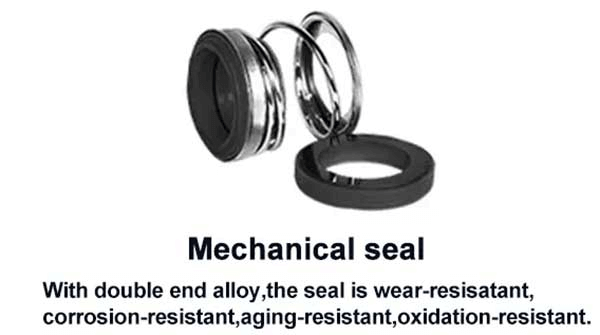

1. It is made of high-quality materials and the seals are carbide mechanical seals, so it has a long service life.
2. The suction pipeline does not need to be equipped with a bottom valve, the pipeline system is simple, and the working conditions are improved.
3. It is characterized by simple structure, convenient operation and maintenance, stable work, high efficiency, long service life and good self-priming performance.
4. This machine can also be used as a cleaning pump for tanker compartments and an efficient water supply system for ships. The use of this pump can give full play to the advantages of its use, improve the efficiency and quality of work, and ensure the saving of time and material resources.

Performance Data:

Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Port(mm)
Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Inlet	Outlet
25CYZ-20	3.2	20	6.5	2900	0.75	25	25
25CYZ-32	3.2	32	6.5	2900	1.1	25	25
40CYZ-20	6.3	20	6.5	2900	1.1	40	32
40CYZ-40	10	40	6.5	2900	4	50	40
50CYZ-12	15	12	6.5	2900	1.5	50	50
50CYZ-20	18	20	6.5	2900	2.2	50	50
50CYZ-35	14	35	6.5	2900	4	50	50
50CYZ-40	10	40	6.5	2900	4	50	50
50CYZ-50	12.5	50	6.5	2900	5.5	50	50
50CYZ-60	15	60	6.5	2900	7.5	50	50
50CYZ-75	20	75	6.5	2900	11	50	50
65CYZ-15	30	15	6.5	2900	3	65	50
65CYZ-32	25	32	6	2900	5.5	65	50
80CYZ-13	35	13	6	2900	3	80	65
80CYZ-17	43	17	6	2900	4	80	65
80CYZ-22	40	22	6	2900	5.5	80	65
80CYZ-25	50	25	6	2900	7.5	80	80
80CYZ-32	50	25	6	2900	7.5	80	80
80CYZ-55	60	25	6	2900	18.5	80	80
80CYZ-70	60	70	6	2900	22	80	80
100CYZ-20	100	20	6	2900	11	100	80
100CYZ-40	100	40	6	2900	22	100	100
100CYZ-40A	100	40	6	1470	22	100	80
100CYZ-65	100	65	6	2900	30	100	100
100CYZ-75	70	75	6	2900	30	100	100
150CYZ-45	170	45	5	2900	37	150	100
150CYZ-55	160	55	5	2900	45	150	100
150CYZ-65	170	65	5	2833	55	150	100
150CYZ-80	160	80	5	1450	55	150	100
200CYZ-63	280	63	5	1450	90	200	150
250CYZ-50	400	50	5	1480	90	250	200
300CYZ-50	500	50	5	1450	110	300	250
300CYZ-55	550	55	5	1450	132	300	250
