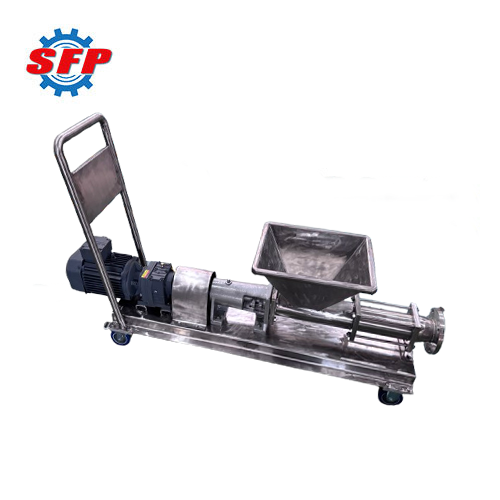

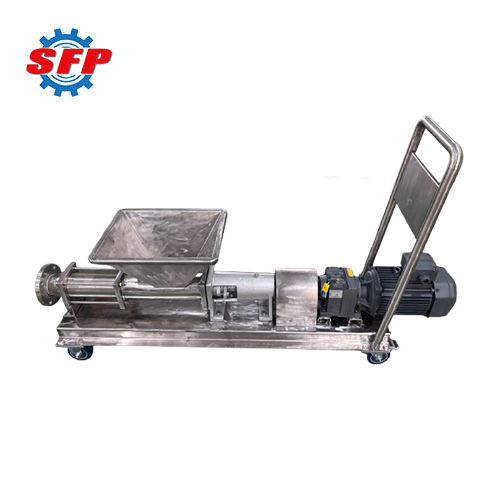

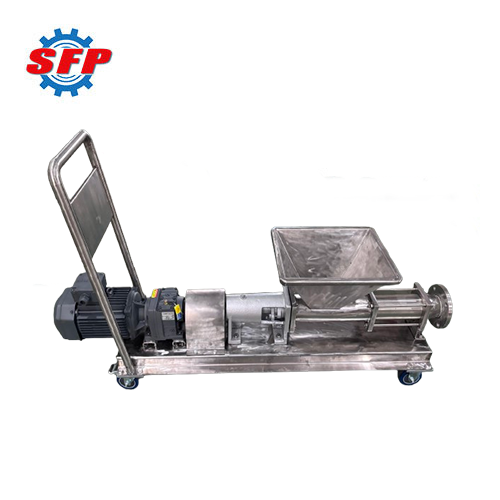

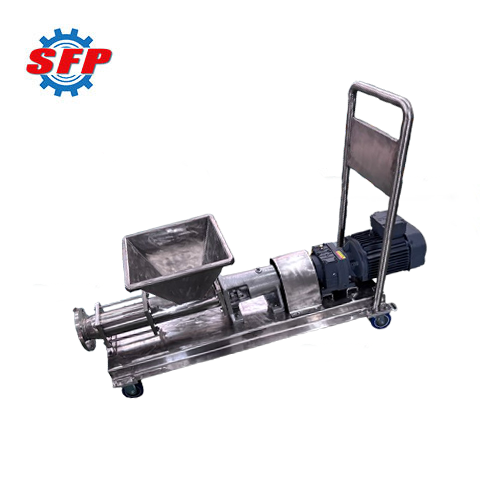

G series screw pump refers to a closed-structure screw pump characterized by low pulsation, smooth operation, and stable flow. It is frequently used in the paper, construction, brewing, power generation, environmental protection, and food industries to handle high-viscosity media containing hard or solid particles. What's more, because the internal structure of the pump features low relative sliding speeds, it effectively prevents particle abrasion on flow-through components when conveying slurries containing small hard particles, which substantially extends the pump's service life.
Product Details:
G series sintaless steel screw pumps consist of a single-start rotor and a double-start rubber stator. Upon rotation of the rotor within the stator, distinct sealed chambers are formed, which continuously move from the suction end to the discharge end, effectively propelling the fluid smoothly to the opposite end. This operating principle ensures that virtually no shearing or agitation occurs during the transfer process, thereby preserving the fluid’s original properties.
(2).png)
Application:
1. It is applicable for conveying crude oil, cement slurry, coatings, and lime slurry in the petroleum and mining sectors.
2. This equipment meets the conveyance requirements for liquid media such as industrial and domestic wastewater containing solid particles and fibers in environmental protection.
3. In the marine and shipbuilding industries, its screw pumps can also be used to extract oil-water mixtures, oil-contaminated sludge, and high-viscosity waste oil from the bottom of ship holds.
4. In industries such as food processing, brewing, and pharmaceuticals, equipment components can be made from food-grade stainless steel, enabling gentler handling of media such as honey, cheese, yeast, and syrup, thereby ensuring the integrity of the media.
Feature:
1. This pump delivers a uniform flow rate with minimal pressure pulsation, making it suitable for applications that require high flow stability and are sensitive to shear forces.
2. When conveying slurries containing fine, hard particles, the pump’s internal structure and material selection significantly reduce particle abrasion on the flow-passing components.
3. The materials for the rotor and stator can be selected based on the conveyed medium and operating conditions to enhance the equipment’s corrosion and wear resistance, thereby ensuring optimal performance.
Performance Data:
| Model |
Flow
(m³/h) |
Pressure
(MPa) |
Speed
(r/min) |
Motor power
(kw) |
Inlet/Outsize Size
(mm) |
Max Solid Size
(mm) |
| G10-1 |
0.1 |
0.6 |
960 |
0.55 |
25 |
0.8 |
| G10-2 |
1.2 |
0.55 |
25 |
| G13-1 |
0.4 |
0.6 |
960 |
0.55 |
25 |
0.8 |
| G13-2 |
1.2 |
0.55 |
25 |
| G15-1 |
0.6 |
0.6 |
960 |
0.55 |
25 |
1 |
| G15-2 |
1.2 |
0.75 |
25 |
| G20-1 |
0.8 |
0.6 |
960 |
0.75 |
25 |
1.5 |
| G20-2 |
0.6 |
1.1 |
25 |
| G25-1 |
2 |
0.6 |
960 |
1.5 |
32 |
2 |
| G25-2 |
1.2 |
2.2 |
32 |
| G30-1 |
5 |
0.6 |
960 |
2.2 |
50 |
2.5 |
| G30-2 |
1.2 |
3 |
50 |
| G35-1 |
8 |
0.6 |
960 |
3 |
65 |
3 |
| G35-2 |
1.2 |
4 |
65 |
| G40-1 |
12 |
0.6 |
960 |
4 |
80 |
3.8 |
| G40-2 |
1.2 |
5.5 |
80 |
| G50-1 |
20 |
0.6 |
960 |
5.5 |
100 |
5 |
| G50-2 |
1.2 |
7.5 |
100 |
| G60-1 |
30 |
0.6 |
960 |
11 |
125 |
6 |
| G60-2 |
1.2 |
15 |
125 |
| G70-1 |
45 |
0.6 |
720 |
11 |
150 |
8 |
| G70-2 |
1.2 |
18.5 |
| G85-1 |
65 |
0.6 |
720 |
15 |
150 |
10 |
| G85-2 |
0.6 |
30 |
| G105-1 |
80 |
0.6 |
720 |
22 |
200 |
10 |
| G135-1 |
100 |
0.6 |
720 |
30 |
200 |
10 |
