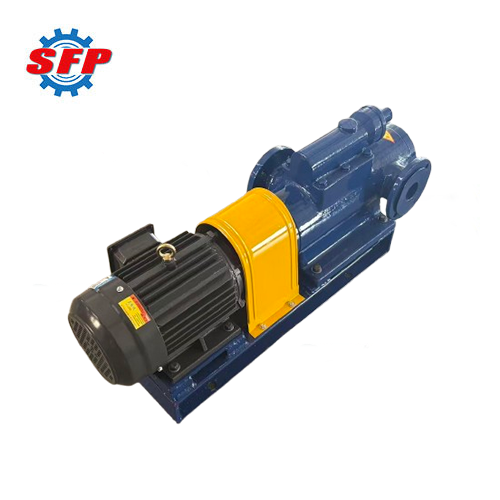

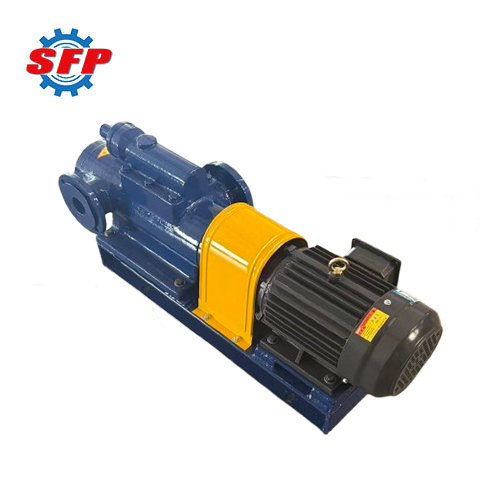

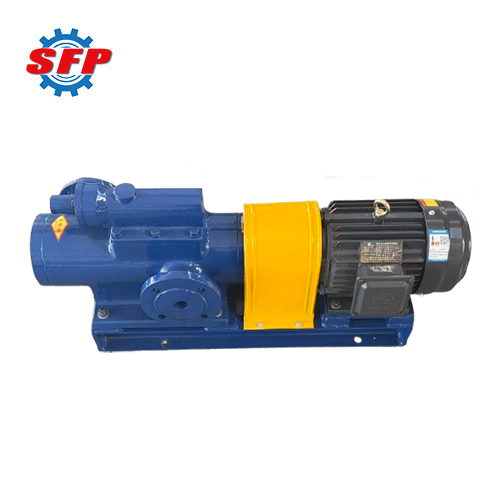

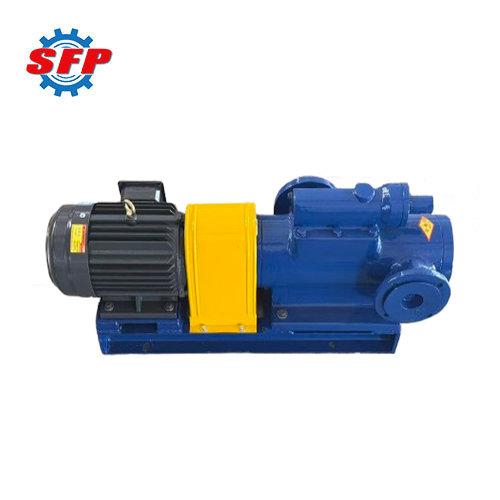

Large Quantity 3G Series Horizontal Triple Screw Oil Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

3G series screw pumps are suitable for conveying corrosive oils and similar fluids without solid particles, with viscosities ranging from 30 to 760 mm²/s. They can handle media such as asphalt, heavy oil, fuel oil, lubricating oil, and high-viscosity chemical raw materials. They find extensive application across energy, marine, industrial, petrochemical, metallurgical, and construction sectors, delivering long-term, stable flow rates. With low operational noise and 15-25% higher efficiency than gear pumps, these units are particularly well-suited for applications with stringent noise requirements.

Product Details:

3G series three-screw pump transmits fluid through the meshing of a main screw and two driven screws. When the main screw rotates, it drives the driven screws to rotate synchronously, forming continuous sealed chambers. These chambers advance forward with the screw rotation, pushing the fluid from the inlet to the outlet, thereby achieving fluid pressurization and conveyance.

Application:

3G series screw pumps are specifically designed for conveying various non-corrosive oils and similar fluids, including fuel oil, heavy oil, lubricating oil, hydraulic oil, asphalt, and other analogous liquid media. When transporting high-viscosity media, heating can be employed to reduce viscosity for easier conveyance, with heating temperatures typically not exceeding 350°C. This equipment finds extensive application across industries such as petroleum, chemical fiber, metallurgy, machinery, power generation, machine tools, marine, glass, and highway construction.

Feature:

1. The meshing action of the screws minimizes pressure pulsations within the pump housing, guaranteeing stable fluid conveyance.
2. The continuous rotation of the screw pump enables smooth liquid delivery to the outlet, ensuring stable flow rates over extended periods.
3. With low inertia in its rotating components, the equipment exhibits minimal starting torque and vibration, resulting in exceptionally low operational noise.

Performance Data:

Model	Flow		Pressure (Mpa)	Speed (r/min)	Power KW		NPSHr (m)
Model	m³/h	L/min	Pressure (Mpa)	Speed (r/min)	Shaft	Motor	NPSHr (m)
90*2-42	28.2	470.9	0.6	950	6.6	11	5.5
	27.5	457.6	1.0	950	10.2	15
	43.1	718.8	0.6	1450	10	15
	41.9	698.5	1.0	1450	15.5	18.5
90*2-46	34.0	566.7	0.8	950	9.7	11	5.5
	52.6	875.4	0.6	1450	12	15
	520	866	0.8		14.9	18.5
	51.4	8561	1.0		18.6	22
100*2-46	48.0	800	0.8	950	13.3	15	5.5
	72.7	1212	0.6	1450	165	18.5
	72.0	1200	0.8		20.4	22
	71.2	1187	1.0		25.5	30
100*2-51	56.9	948.9	0.6	950	12.5	15	5.5
	55.7	928.6	1.0	950	20.8	30
	86.9	1448.3	0.6	1450	19.1	22
	850	1417.2	1.0	1450	31.8	37
110*2-46	60.9	1015	0.6	950	13.7	18.5	5.5
	58.9	951.7	1.0	950	21.8	30
	96.7	1611	0.6	1450	21.9	30
	94.6	1577	1.0	1450	33.9	45
120*2-42	67.9	1131	0.6	950	15.5	18.5	5.5
	65.4	1090	1.0	950	24.5	30
	108	1802	0.6	1450	24.7	30
	105	1760	1.0	1450	38.2	45
120*2-46	79.6	1327	0.6	950	17.8	22	5.5
	77.2	1285	1.0	950	28.2	37
	126	2101	0.6	1450	28.5	37
	123	2059	1.0	1450	44.1	55
150*2-46	158	2640	0.6	950	34.6	45	5.5
	154	2582	1.0	950	54.5	75
	241.7	4029.7	0.6	1450	53.8	7590
	236.5	3942.2	1.0	1450	82.2
