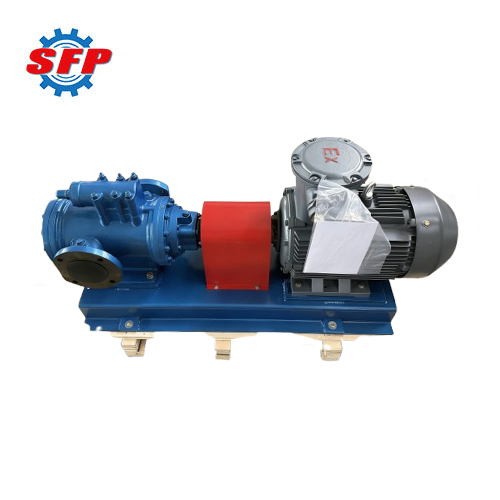

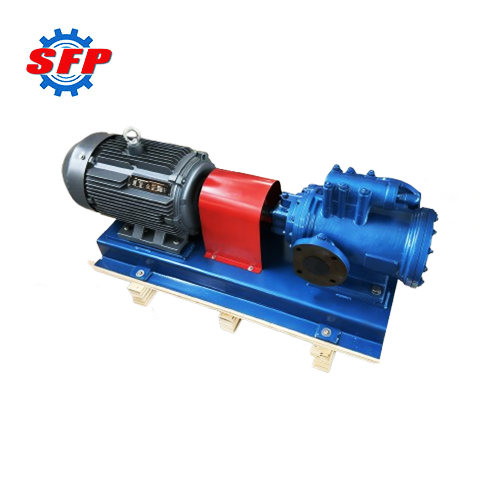

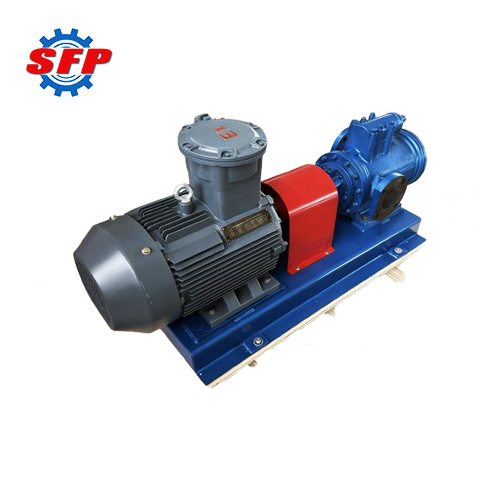

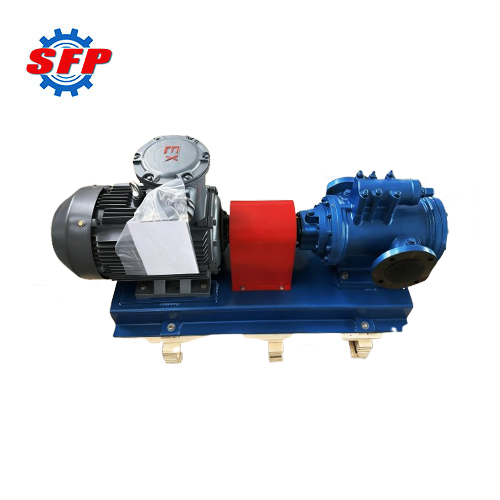

2W screw pump is a positive-displacement rotary pump designed based on the principle of twin-screw meshing. It features low vibration, low noise, and smooth operation. This equipment is specifically designed for media of various viscosities and lubricity levels, as well as media containing small amounts of impurities, and can be applied in industries such as machinery, petroleum, and metallurgy. What's mpre, the unit can be equipped with an insulated jacket or heating system to heat or cool high-viscosity media, ensuring smooth conveyance.
Product Details:
2W twin-screw pump features a double-suction design, where the interlocking of the drive and driven screws, combined with the precise fit between the screws and the pump housing, creates a series of sealed chambers within the pump body. As the screws rotate, these sealed chambers move continuously forward, pushing the fluid within them toward the discharge port, thereby ensuring stable and reliable fluid transfer.
Application:
1. In the food and pharmaceutical industries, they can handle sanitary-grade media such as syrups, oils, dairy products, and pharmaceutical solutions; by selecting sanitary-grade materials and sealing configurations, they meet the hygiene requirements for food and pharmaceutical production.
2. In the shipbuilding and offshore engineering sectors, these pumps are suitable for the transfer of ballast water, bilge water, fuel oil, and lubricating oil on ships, as well as the transfer of crude oil and other media on offshore platforms.
3. In the environmental protection and municipal sectors, it is suitable for conveying media containing solids, such as sludge, sewage, and biogas liquid, and can also be used for chemical dosing in wastewater treatment plants.
Feature:
1. Equipped with mechanical seals or bellows-sealed mechanical seals, this pump features a long service life, minimal leakage, and a wide range of applications.
2. Utilizing a synchronous gear drive, there is no contact between the two rotors, ensuring reliable flow even during brief periods of dry running.
3. It features an external bearing design and independent lubrication, this pump is capable of handling a variety of non-lubricating media.
