Product Description

Summarize:

3RP series lobe filling pump can meet the suspension containing solid particles, corrosive media and high hygiene requirements of the media filling requirements. It can be applied to liquid filling production in food, beverage, pharmaceutical, chemical, daily chemical and other industries to meet the filling requirements of different industries. The device is characterized by high filling precision, smooth operation, compact structure, pollution-free filling process, simple structure and convenient operation.

Product Details:

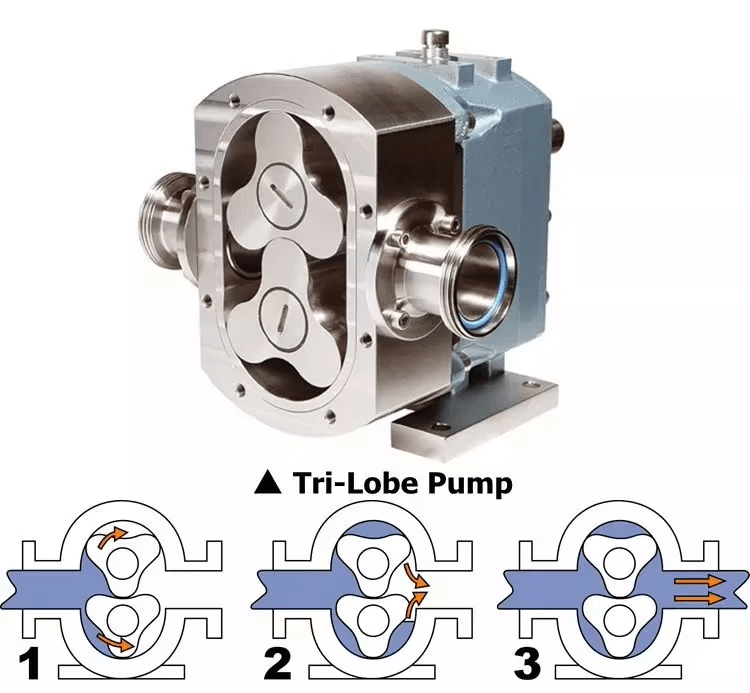

This machine is mainly composed of rotor, shaft seal, gear box, and a pair of synchronous meshing active gears to realize the transfer of media. It adopts the gear transmission method, the main shaft and auxiliary shaft drive the rotor to rotate synchronously in reverse, so that the volume of the pump changes, thus forming a higher vacuum and discharge pressure.

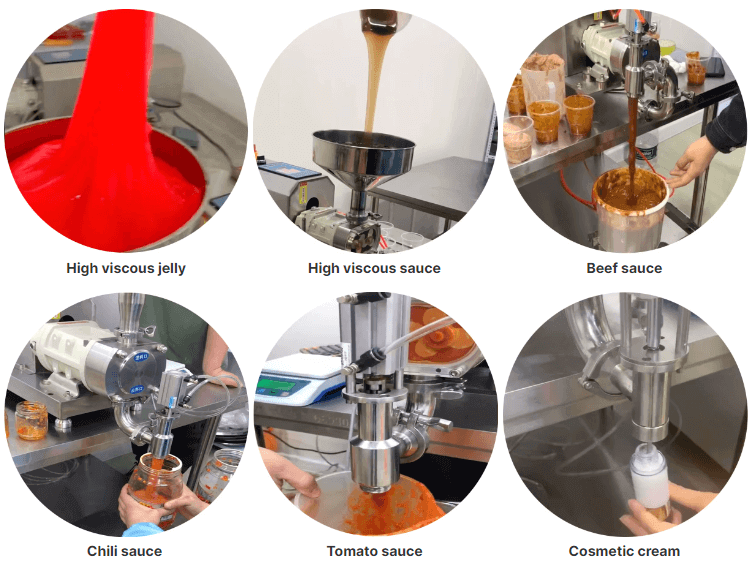

Application:

1. Chemical Industry: Fat, dissolvent, resin, paint, pigment, oil agent.
2. Other Industry: Contruction industry, plastic industry, textile industry, coal floatation agent.
3. Food Industry: Yogurt, ice cream, cheese, soft drink, fruit jelly, ketchup, oil, syrup, chocolate.
4. Daily Chemicals: Facial foam, hair gel, hair dyes, toothpaste, shampoo, shoe polish, cosmestics.
5. Pharmacy: Nutrition liquid, chinese traditional patent medicine, medicine grease, biological products.

Feature:

1. All models with mechanical seal flushing.
2. Easy for cleaning. It has good CIP (clean-in-place) and SIP (steam-in-place) feature.
3. All parts of the pump in contact with transported materials are made of Stainless Steel and meet sanitation standards.
4. High efficiency, reliability, corrosion resistance and can transfer liquid with particles and viscosity up to 1,000,000 cps.
5. Different materials for the balance mechanical seals: SiC-Tungsten Carbide, SiC-SiC, Tungsten Carbide-Tungsten Carbide.
6. Different drives for options:stepless speed reducer, fixed ratio reducer, variable frequency motor, explosion proof motor, etc.

Performance Data:

Model	Flow		Pressure	Speed	Power	Pipe size
Model	L/100r	m3/h	Mpa	rpm	kw	DN
3RP-6	6	1.8	0-1.2	10-500	0.75	20/25
3RP-9	9	2.6	0-0.6	10-500	1.1	25/32
3RP-18	18	4.3	0-0.2	10-400	1.5	32/50
3RP-36	36	8.5	0-0.6	10-400	2.2	50/65
3RP-60	60	14.3	0-0.6	10-400	4	65/80
3RP-105	105	25	0-1.2	10-400	11	80/100
3RP-150	125/250	35	0-0.6	10-400	18.5	100/125
3RP-250	250	45	0-0.6	10-400	22	125/150
