Product Description

Summarize:

3RP series rotary lobe pump is characterized by strong self-priming capability, corrosion resistance, high sanitary standards, and extended service life. It is mainly used for conveying suspensions containing solid particles and corrosive media within a temperature range of -30 to 180°C. This pump finds extensive application in industries such as food, beverage, biopharmaceuticals, chemicals, and environmental protection. Additionally, the pump's robust handling capacity ensures intact delivery of fruit pulp, meat chunks, and suspended fillers, preserving the integrity of the conveyed medium.

Product Details:

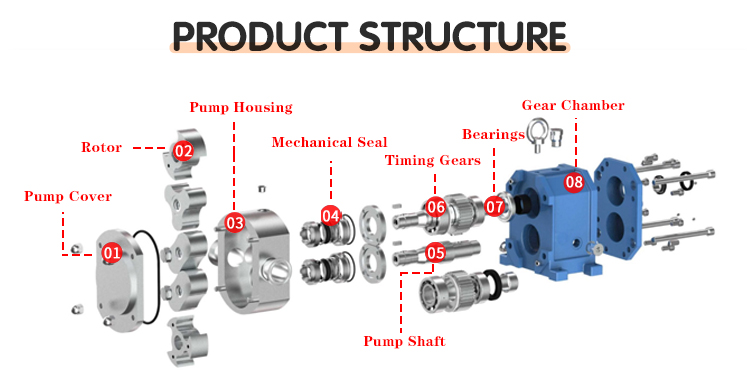

3RP series rotary vane pump primarily consists of a rotor, shaft seal, gearbox, and a pair of meshing drive gears, through the drive of the rotor to achieve medium transportation. By adopting a gear transmission mechanism, the main shaft and auxiliary shaft drive the rotor to rotate synchronously in opposite directions, causing the pump chamber volume to change. This generates higher vacuum levels and exhaust pressures, enabling stable and efficient transportation of highly corrosive, high-viscosity media.

Application:

1. In the chemical fiber industry, it can be used to convey materials such as polyester, polypropylene, synthetic fibers.
2. It can be used in the fodd indystry to process media such as chocolate, yogurt, syrups, honey, jams, condiments, and tomato juice.
3. In the pharmaceutical field, this pump can meet the conveying requirements for various ointments, medicinal emulsions, syrups and pharmaceuticals.
4. In the daily chemical industry, this product is able to convey hand sanitizer, shampoo, skin cream, detergent, washing powder slurry, and daily chemical raw materials.

Feature:

1. This pump not only conveys high-viscosity media but also handles three-phase mixtures of gas, liquid, and solid materials, demonstrating exceptional adaptability.
2. Its inlet and outlet connections can be customized with either flange or threaded connections based on specific application requirements.
3. The rotor design features clearance between components with no friction coefficient, significantly extending the pump's service life.
4. By incorporating a variable frequency drive, flow rates can be freely adjusted, enabling it to function as a versatile metering pump.
5. The inlet and outlet ports can be connected via flanges or threads based on specific requirements.

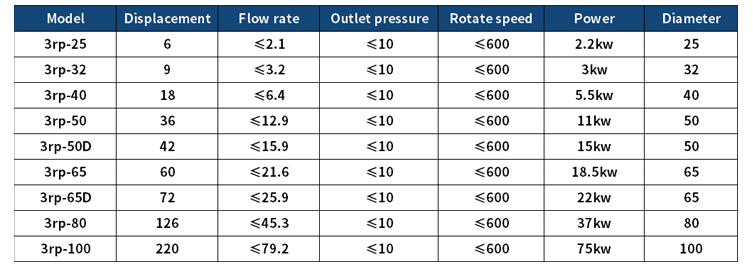

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/Outlet (mm)
Model	l/100r	m³/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/Outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
