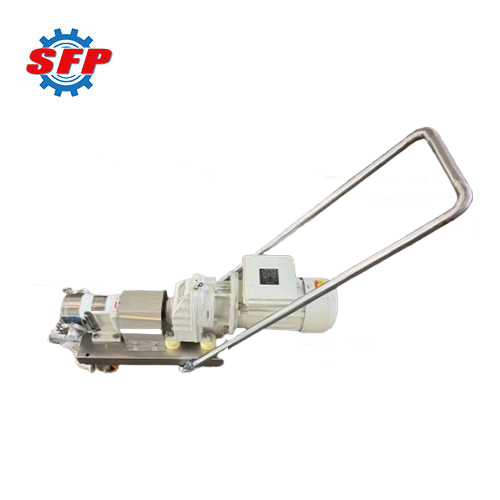

3RP Series Mobile Lobe Pump
3RP Series Mobile Lobe Pump
3RP Series High Viscosity Lobe Pump
3RP series high viscosity lobe pump is capable of conveying high-viscosity liquids, liquids containing solid particles, and shear-sensitive fluids, finding widespread application in industries such as food, beverages, bio-pharmaceuticals, personal care, petroleum, chemicals, construction, and printing. The internal components of this pump series that come into contact with the fluid are made of stainless steel, offering excellent corrosion resistance and hygienic performance, meeting the stringent hygiene standards of processing industries while also reducing the time and cost associated with equipment maintenance and cleaning.
Flow Rate: 6-250m³/h
Viscosity: 30-100000cp
Temperature Range: -30℃~180℃
Product Description
Summarize:

3RP lobe pump is a positive displacement pump characterized by strong self-priming capability, smooth operation, high pumping efficiency, reliable sealing, low noise, and a long service life. This pump is suitable for conveying suspensions containing solid particles, as well as corrosive and high-viscosity liquids with viscosities ranging from 30 cSt to 100,000 cSt, meeting the pumping requirements of industries such as pharmaceuticals, personal care, food, beverages, marine, printing, and energy. With its low pulsation and low shear force characteristics, this equipment effectively preserves the original properties of media such as jams, chocolate, meat purees, and emulsions during conveyance, while ensuring consistent product quality.

Product Details:
3RP series lobe pump is a positive displacement pump that relies on two rotors rotating in opposite directions in sync to create a vacuum at the inlet during rotation, thereby drawing in the material to be conveyed. During operation, the two counter-rotating rotors divide the chamber into small compartments; as the rotors rotate, the enclosed volume gradually increases, drawing the medium into the pump chamber. Once the medium is sealed within the chamber by the rotors, it is pushed toward the outlet, thereby completing the entire transfer process.
Application:
3RP series lobe pumps has a wide range of applications and is specifically designed for pumping corrosive media and high-viscosity suspensions containing solid particles. They can be used to pump media such as fresh cream, whey, carbonated beverages, jam, emulsions, fats and oils, and cement slurry, and are increasingly being adopted in industries including food, beverages, personal care, pharmaceuticals, chemicals, construction, marine, and energy.
Feature:
1. It requires no disconnection of piping during maintenance, allowing for quick repairs and significantly reducing downtime.
2. This equipment features strong self-priming capability and can be started without priming, making it suitable for a wide range of suction applications.
3. The unit features a rational internal design with few components, making it easy to clean and preventing bacterial growth caused by prolonged retention of the medium.
4. It employs an advanced three-lobe screw rotor design, enabling smooth, pulsation-free material transfer. This effectively reduces shear and compression forces, thereby preserving the material’s original properties.
Performance Data:
