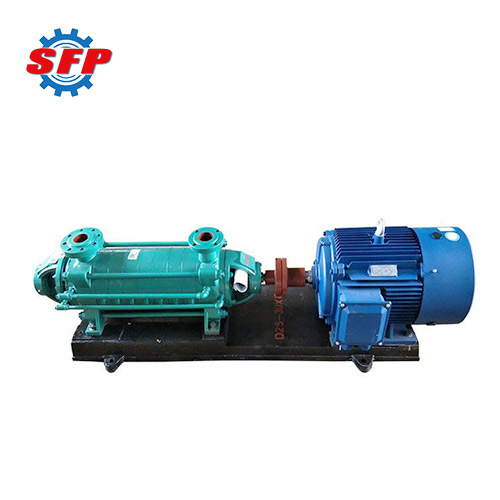

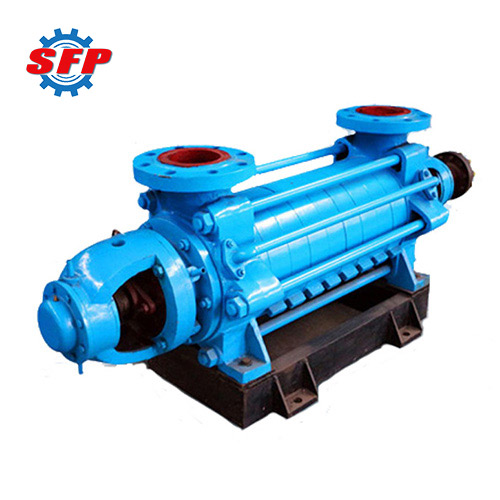

DG Horizontal Multi-Stage Centrifugal Pump pump is suitable for conveying clean water (containing less than 1% of the quality of miscellaneous.Particle size less than 01 mm) and other liquids with physicochemical properties similar to that of clean water. This machine is not more than 105℃, it is suitable for small boiler feed water pump or conveying similar hot water and other occasions.
| D/DG/DF/MD(P)6-25 | D/DG/DF/MD(P)6-50 | D/DG/DF/MD(P)6-80 | D/DG/DF/MD(P)12-25 |
| D/DG/DF/MD(P)12-50 | D/DG/DF/MD(P)12-80 | D/DG/DF/MD(P)25-30 | D/DG/DF/MD(P)25-50 |
| D/DG/DF/MD(P)25-80 | D/DG/DF/MD(P)46-30 | D/DG/DF/MD(P)46-50 | D/DG/DF/MD(P)46-80 |
| D/DG/DF/MD(P)85-45 | D/DG/DF/MD(P)85-67 | D/DG/DF/MD(P)85-80 | D/DG/DF/MD(P)85-100 |
| D/DG/DF/MD(P)120-50 | D/DG/DF/MD(P)120-100 | D/DG/DF/MD(P)150-30 | D/DG/DF/MD(P)150-50 |
| D/DG/DF/MD(P)150-80 | D/DG/DF/MD(P)150-100 | D/DG/DF/MD(P)155-30 | D/DG/DF/MD(P)155-67 |
| D/DG/DF/MD(P)200-50 | D/DG/DF/MD(P)200-100 | D/DG/DF/MD(P)200-150 | D/DG/DF/MD(P)210-70 |
| D/DG/DF/MD(P)280-43 | D/DG/DF/MD(P)280-65 | D/DG/DF/MD(P)280-95 | D/DG/DF/MD(P)280-100 |
| D/DG/DF/MD(P)300-45 | D/DG/DF/MD(P)360-40 | D/DG/DF/MD(P)360-60 | D/DG/DF/MD(P)360-95 |
| D/DG/DF/MD(P)450-60 | D/DG/DF/MD(P)450-95 | D/DG/DF/MD(P)500-57 | D/DG/DF/MD(P)550-50 |
| D/DG/DF/MD(P)580-60 | D/DG/DF/MD(P)640-80 | D/DG/DF/MD(P)720-60 | D/DG/DF/MD(P)1100-85 |
| Flow rate: | 3.7 ~ 1350m3/h |
| Head: | 49 ~1800m |
| Efficiency: | 32%-84% |
| NPSHr: | 2 ~ 7m |
| Motor power: | 3 ~ 1120kw |
| Weight: | 78-3750kg |
