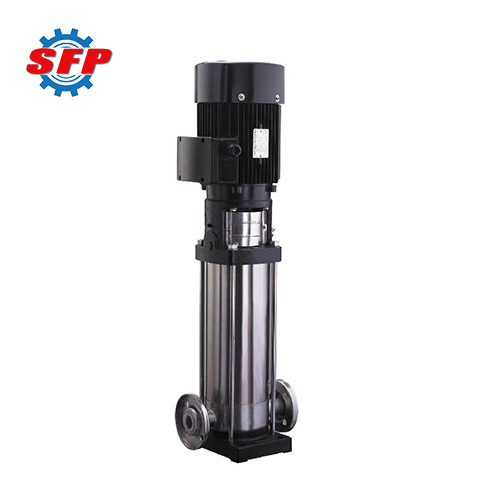

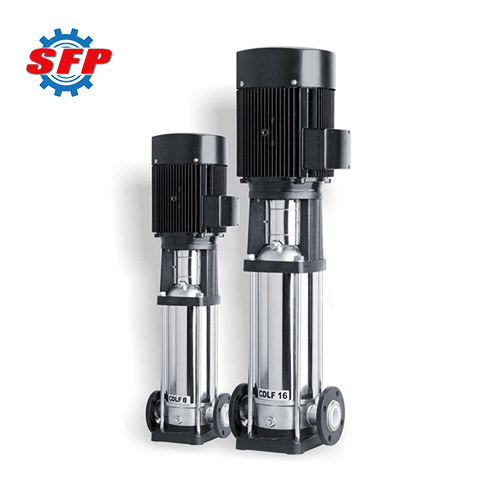

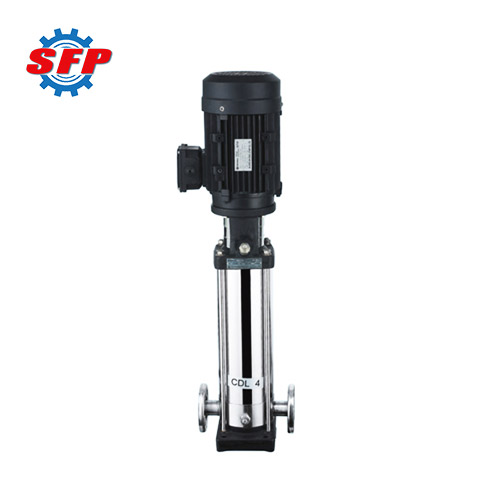

Volume CDL/CDLF Vertical Stainless Steel Multistage Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

CDL/CDLF series multistage centrifugal pump belongs to a vertical multi-stage centrifugal pump that can be used for water treatment, water supply, industrial pressurization, and agricultural irrigation to treat clear water or liquids with physicochemical properties similar to clear water. The equipment adopts excellent hydraulic model and advanced manufacturing technology, which greatly improves the performance of the pump and effectively extends its service life.

Product Details:

CDL/CDLF series centrifugal pump utilizes new sealing technology and can be easily dismantled with stainless steel casing mechanical seal. It is designed to be driven by a standard motor with the motor output shaft directly connected to the pump shaft by means of a coupling. Its pressure-resistant cylinder and runner assembly can be fixed between the pump head and the inlet and outlet sections by solid bolts, and its position needs to be on the same plane at the bottom of the pump. And the pump can be equipped with an intelligent protector, thus effectively preventing dry rotation, phase loss and overload.

Application:

1. Irrigation: Farmland irrigation, sprinkler irrigation, drip irrigation.
2. Industrial Pressurization: Process water system, cleaning system, high-pressure flushing system, fire-fighting system.
3. Water Treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators and water treatment systems for swimming pools.
4. Water Supply: Water plant filtration and transportation, water plant district water delivery, main pipe pressurization, high-rise building pressurization.
5. Industrial Liquid Transportation: Cooling and air conditioning systems, boiler feed water and condensing systems, machine tools, acid and alkaline media transportation.

Feature:

1. This machine utilizes standard motor, and users can easily equip the motor according to their needs.
2. With compact structure, small size, light weight, low noise, significant energy saving effect, and convenient maintenance.
3 Intelligent protectors can be equipped according to user needs to effectively protect the pump from dry running, lack of phase, and overload.
4. The overflow part of the machine is made of stainless steel plate stamping and welding, making the pump suitable for mildly corrosive media.
5. It adopts an excellent hydraulic model and advanced manufacturing technology, which greatly improves the performance and service life of the pump.
6. The water inlet and outlet of the CDL/CDLF centrifugal pump are located on the same horizontal line of the pump seat, which can be directly used in the pipeline.
7. This machine uses mechanical seals made of cemented carbide and fluorine rubber for the shaft seal, which can improve the reliability of pump operation and the temperature of the conveying medium.

Parameter Data:

Model	Power	Flow Rate	1	1.2	1.6	2	2.4	2.8	3.2	3.5
Model	(KW)	(m3/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
CDL2.2	0.37	H(m)	18	17	16	15	13	12	10	8
CDL2.3	0.37	H(m)	27	26	24	22	20	18	15	12
CDL2.4	0.55	H(m)	36	35	33	30	26	24	20	16
CDL2.5	0.55	H(m)	45	43	40	37	33	30	24	20
CDL2.6	0.75	H(m)	53	52	50	45	40	36	30	24
CDL2.7	0.75	H(m)	63	61	57	52	47	41	35	28
CDL2.9	1.1	H(m)	80	78	73	67	61	54	45	37
CDL2.11	1.1	H(m)	98	95	89	82	73	64	54	44
CDL2.13	1.5	H(m)	116	114	106	98	89	78	65	52
CDL2.15	1.5	H(m)	134	130	123	112	100	90	73	60
CDL2.18	2.2	H(m)	161	157	148	136	121	108	91	76
CDL2.22	2.2	H(m)	197	192	180	165	148	130	110	90
CDL2.26	2.2	H(m)	232	228	214	198	179	158	130	110
