Product Description

Summarize:

D series horizontal multistage pump belongs to a vertical multistage centrifugal pump, which is used for conveying clear water or other media with physical and chemical properties similar to water. When conveying hot water, oil, corrosive liquids or abrasive particles and other media, it is only necessary to change the material of the pump or the material of the over-flow parts, sealing form and increase the cooling system to achieve the purpose. The pump can be used in industrial and urban water supply and drainage, garden sprinkler irrigation, fire booster and long-distance water transmission and other fields.

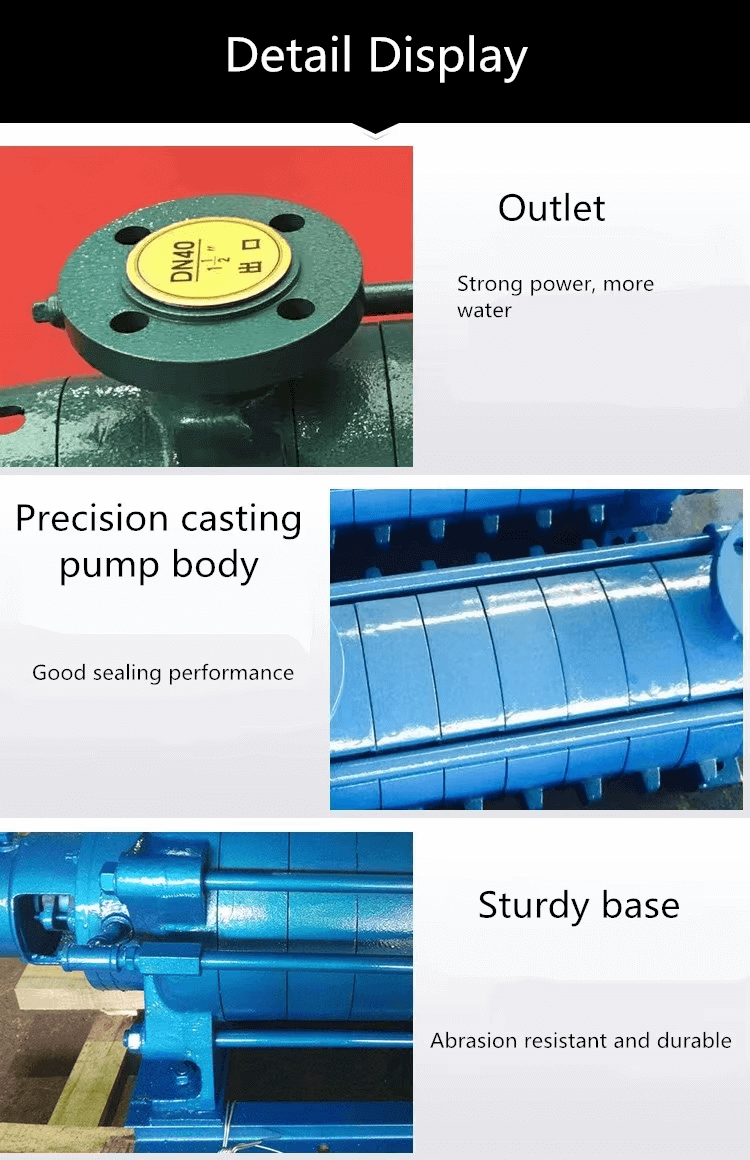

Product Details:

With the rotor rotating, the liquid will be thrown to the edge of the pump chamber, forming a low-pressure area in the center of the pump chamber, thus enabling the liquid to be continuously sucked into the pump chamber. The liquid continues to be accelerated and pressurized in the pump chamber with the rotation of the rotor, and the rotor does work on the liquid to further increase the energy of the liquid. Under the action of pressure difference, the pressurized liquid is discharged from the outlet of the pump chamber into the subsequent pipeline or equipment.

Application:

This machine is suitable for conveying clear water containing no solid particles with a temperature lower than 80℃ or liquids with similar physical and chemical properties as clear water. It is mainly used for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance water supply, heating, bathroom and other cold and warm water circulation pressurization and equipment matching, especially suitable for small boiler feed water.

Feature:

1. Adopting advanced hydraulic mode, so the conveying efficiency is high and the performance range is wide.
2. The seal of the machine has soft packing seal or mechanical seal for choice. The sealing is safe and reliable, simple structure, easy and quick maintenance.
4. The shaft is designed as a fully closed structure to ensure no contact with medium, no rust and long service life.

Performance Data:

Model	Flow m3/h	Head m	Speed rpm	Power kw		NPSHr m
Model	Flow m3/h	Head m	Speed rpm	Shaft	Motor	NPSHr m
D/DG6-25*3	3.75	76.5	2950	2.37	5.5	2
	6.3	75		2.36		2
	7.5	73.5		3.19		2.5
D/DG6-25*4	3.75	102	2950	3.16	7.5	2
	6.3	100		3.81		2
	7.5	98		4.26		2.5
D/DG6-25*5	3.75	127.5	2950	3.95	7.5	2
	6.3	125		4.77		2
	7.5	122.5		5.32		2.5
D/DG6-25*6	3.75	153	2950	4.37	11	2
	6.3	150		5.72		2
	7.5	147		6.39		2.5
D/DG6-25*7	3.75	178.5	2950	5.52	11	2
	6.3	175		6.67		2
	7.5	171.5		7.45		2.5
D/DG6-25*8	3.75	204	2950	6.31	15	2
	6.3	200		7.63		2
	7.5	196		8.52		2.5
D/DG6-25*9	3.75	229.5	2950	7.1	15	2
	6.3	225		8.58		2
	7.5	220.5		9.58		2.5
D/DG6-25*10	3.75	255	2950	7.89	18.5	2
	6.3	250		9.53		2
	7.5	245		10.65		2.5
D/DG6-25*11	3.75	280.5	2950	8.68	18.5	2
	6.3	275		10.5		2
	7.5	269.5		11.71		2.5
