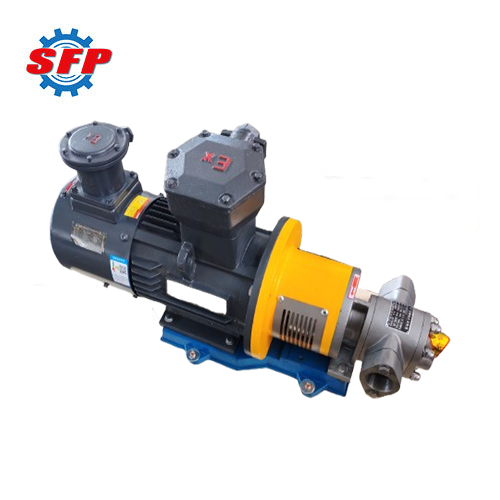

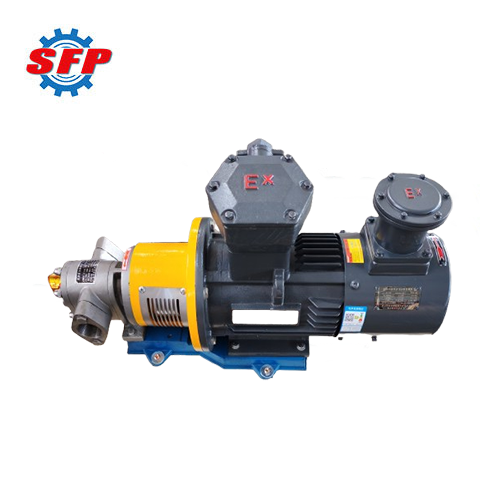

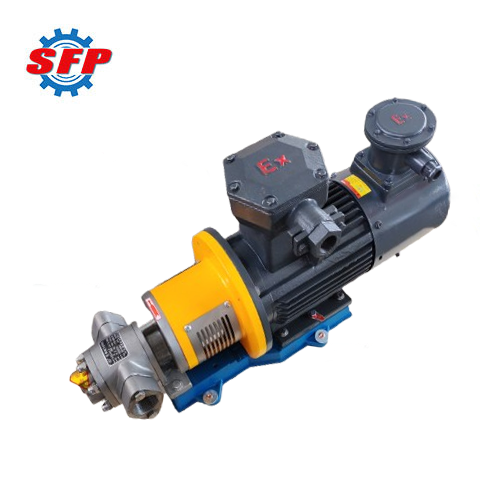

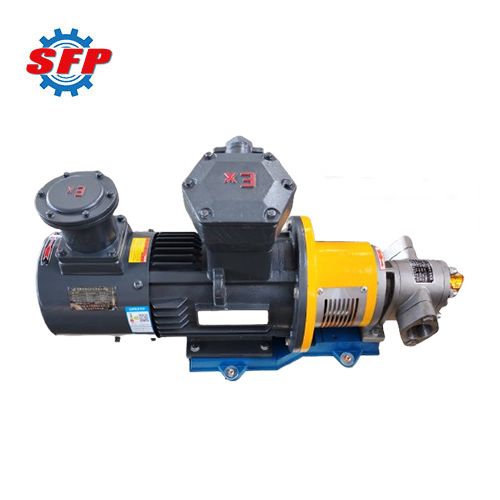

KCB Series Magnetic Gear Pump
KCB Series Magnetic Gear Pump
KCB Series Mganetic Gear Pump
KCB series magnetic gear pumps are specifically designed for conveying non-corrosive lubricants or similar liquids, including lubricating oils, vegetable oils, crude oil and diesel free from solid particles or fibres, with a maximum operating temperature of 300°C. With their high-efficiency delivery, stable operation, and low maintenance requirements, these pumps are widely chosen across industries such as petroleum, metallurgy, chemical processing, power generation, and food production.
Head Lift: 28-145m
Flow Rate: 1.1-900m³/h
Power: 1.5-350Kw
Product Description
Summarize:


KCB magnetic drive pumps are suitable for handling oil-based media such as vegetable oil, crude oil, diesel, lubricating oil, and animal oil that contain no solid particles or fibers. They can be applied to fluid handling in various industrial settings, including oil depots, docks, ships, farms, mines, petroleum, chemical, metallurgical, and power plant sectors. Note that the medium temperature must not exceed 300°C, and viscosity should range between 5 and 1500 cSt. For conveyance of higher-viscosity media, this can be achieved by operating at lower rotational speeds.

Product Details:
KCB series magnetic drive pump primarily consists of gear oil pump gears, shafts, pump body, valves, and shaft end seals. Two sets of gears within the pump body mesh with each other, dividing the entire working chamber into two independent sections: the suction chamber and the discharge chamber. When the pump operates, the drive gear rotates the driven gear. A local vacuum forms at the gear meshing clearance, thereby drawing liquid into the pump.
Application:
1. Marine Industry: It is often used in the fuel delivery and lubricating oil circulation systems on ships.
2. Machinery Industry: In machine tools, construction machinery and other equipment, to provide stable oil delivery for the lubrication system of the equipment.
3. Food Industry: In some processing processes that require the use of edible oils and fats, such as the circulation of oils and fats in the production line of fried food.
4. Petrochemical Industry: This machine is used in oil refineries, chemical plants and other places to transport crude oil, diesel oil, lubricating oil and other oil liquids.
Feature:
1. This pump effectively reduces pressure fluctuations, enabling smooth medium delivery while significantly minimising pipeline vibration and noise.
2. Its gears, bushings and other wear parts feature standardised designs, ensuring high interchangeability and low long-term maintenance costs.
3. The removable rear cover design allows maintenance of gears and bearings without dismantling pipelines, thereby minimising downtime.
Performance Data:
Model Capacity Q Speed Exhaust pressure P Motor
m³/h l/min r/min Mpa Power Kw
KCB-18.3 1.1 18.3 1400 1.45 1.5
KCB-33.3 2 33.3 1420 1.45 2.2
KCB-55 3.3 55 1400 0.33 1.5
KCB-83.3 5 83.3 1420 0.33 2.2
KCB-135 8 135 940 0.33 2.2
KCB-200 12 200 1440 0.33 4
KCB-300 18 300 960 0.36 5.5
KCB-483.3 29 483.3 1440 0.36 7.5
KCB-633 38 633 970 0.28 11
KCB-960 58 960 1470 0.28 11
KCB-1200 72 1200 740 0.6 37
KCB-1600 96 1600 980 45
KCB-1800 110 1800 740 0.6 55
KCB-2500 150 2500 985 75
KCB-2850 170 2850 740 0.6 90
KCB-3800 230 3800 989 110
KCB-4100 245 4100 743 0.6 132
KCB-5400 325 5400 989 160
KCB-5600 330 5600 744 0.6 160
KCB-7600 460 7600 989 200
KCB-7000 420 7000 744 0.6 185
KCB-9600 570 9600 989 250
KCB-13000 800 13000 490 0.6 315
