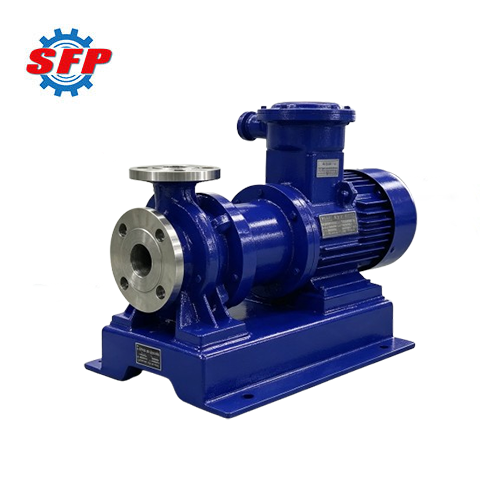

CQ series magnetic drive pumps employ advanced magnetic drive technology, eliminating the liquid leakage issues associated with traditional pumping equipment caused by seal aging, wear, or installation errors, thereby significantly improving operational reliability. Characterized by their compact design, reliable operation, advanced technology, and leak-free performance, these pumps are ideally suited for industrial applications where safe production, environmental protection, and high media purification standards are required, such as in scientific research, electroplating, pharmaceuticals, and defense sectors.
Product Details:

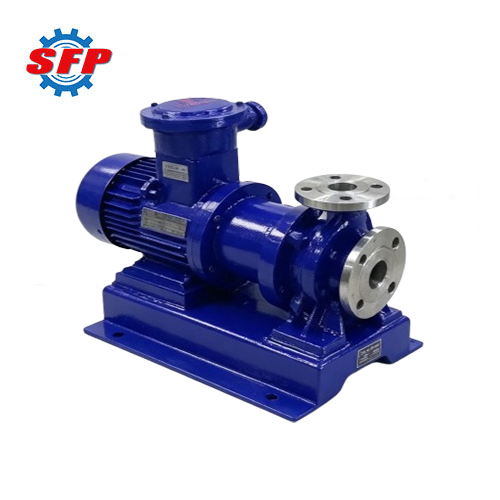

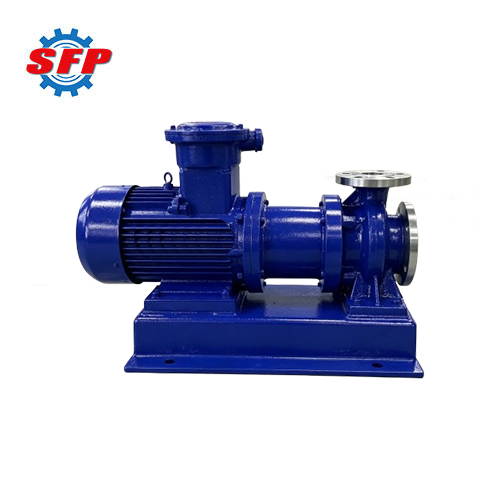

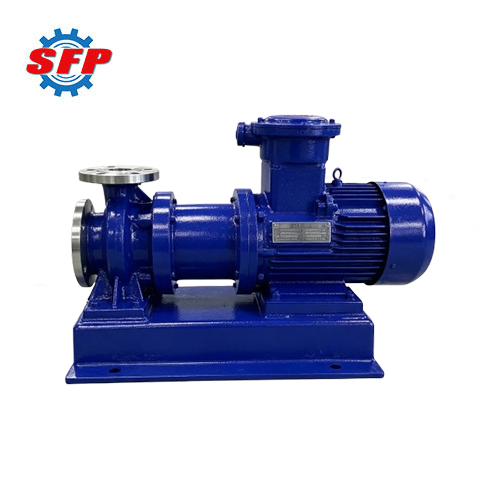

CQ horizontal magnetic pumps utilize the principle of magnetic coupling to transport fluids. The motor drives the outer magnetic rotor to rotate; the magnetic field causes the inner magnetic rotor to rotate in sync with it, and this inner magnetic rotor is connected to the impeller, thereby transmitting the motor’s power to the interior of the pump to facilitate fluid transfer. Since the pump chamber is completely sealed by an isolation sleeve, the transported fluid remains within a closed space at all times, which effectively prevents fluid leakage into the external environment.
Application:
1. In the chemical industry, this equipment enables stable conveyance of various corrosive raw materials and process fluids, thereby reducing equipment damage and safety hazards caused by media leaks.
2. This machine can be deployed in wastewater treatment, recirculation filtration, chemical dosing, and other related processes in the environmental protection industry
3. In the pharmaceutical industry, it is used for pharmaceutical solutions, process fluids, and production processes where contamination must be avoided.
Feature:
1. By eliminating mechanical seals in the CQ series, liquid leaks caused by seal aging and wear are minimized to the greatest extent possible, significantly reducing the risk of leaks while enhancing production safety.
2. The equipment features a simple design and a small footprint, making it adaptable to environments with limited production space.
3. It operates with low noise and minimal vibration, meeting the noise and safety requirements of various industries.
Performance Data:
| Type |
Lift Head
(m) |
Flow
(L/min) |
Motor Power
(kW) |
Vltage
(V) |
| BCQ-1.2 |
1.2 |
16 |
0.025 |
220 |
| 10CQ-3 |
3 |
19 |
0.025 |
220 |
| 16CQ-8 |
8 |
25 |
0.12 |
380/220 |
| 20CQ-12 |
12 |
50 |
0.37 |
380/220 |
| 25CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-25 |
25 |
110 |
1.5 |
380 |
| 40CQ-20 |
20 |
180 |
2.2 |
380 |
| 50CQ-25 |
25 |
240 |
4 |
380 |
| 16CQ-8 |
8 |
25 |
0.18 |
380/220 |
| 20CQ-12 |
12 |
50 |
0.37 |
380/220 |
| 25CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-25 |
25 |
110 |
1.5 |
380 |
| 40CQ-20 |
20 |
180 |
2.2 |
380 |
| 40CQ-40 |
40 |
200 |
4 |
380 |
| 50CQ-25 |
25 |
240 |
4 |
380 |
| 50CQ-40 |
40 |
200 |
4 |
380 |
| 50CQ-50 |
45 |
220 |
5.5 |
380 |
| 65CQ-25 |
25 |
280 |
5.5 |
380 |
| 65CQ-35 |
35 |
450 |
7.5 |
380 |
| 80CQ-35 |
35 |
850 |
11 |
380 |
| 80CQ-50 |
50 |
850 |
15 |
380 |
| 100CQ-32 |
32 |
|
22 |
380 |
| 100CQ-50 |
50 |
|
37 |
380 |
