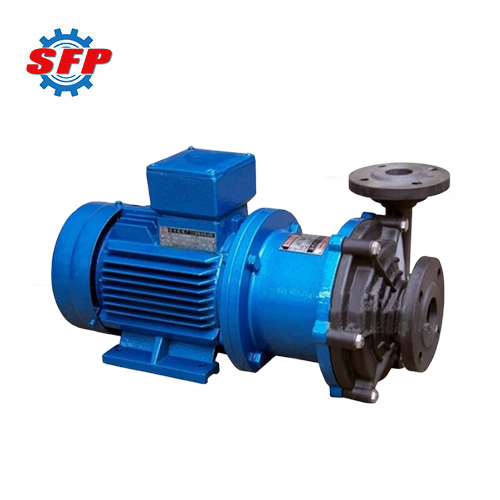

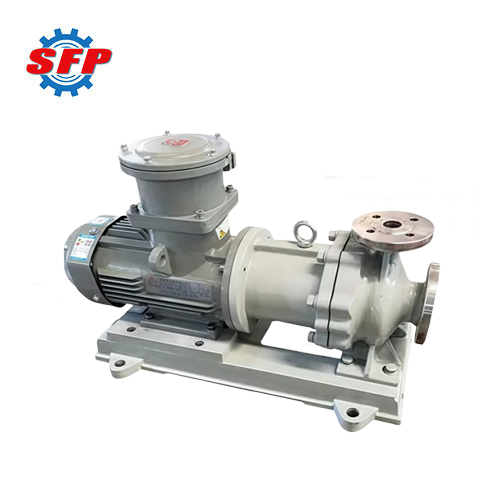

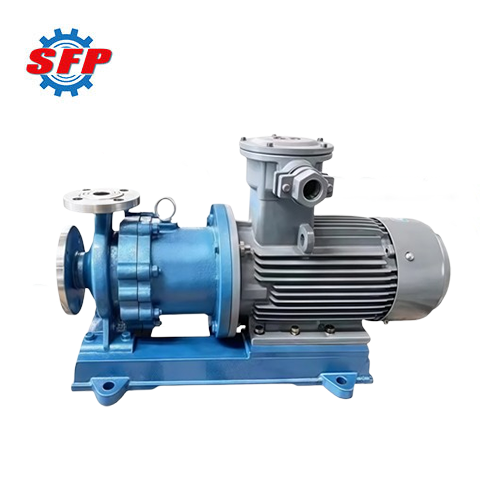

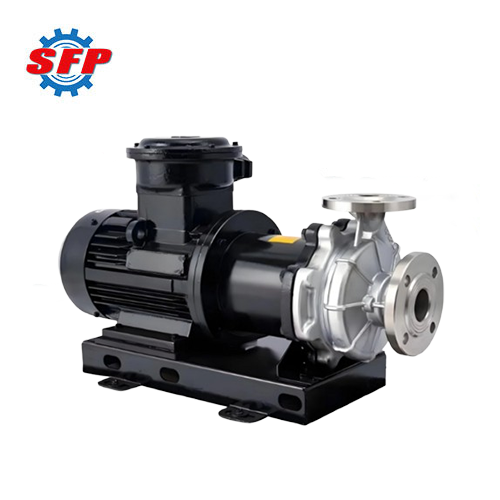

Bulk Price CQ Series Horizontal Magnetic Drive Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

Automatic Mineral Water Water Bottle Filling Machine

Water Filling Bottle Machine

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

G Series Sludge Screw Pump

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

CQ series magnetic centrifugal pumps are suitable for conveying acids, alkalis, oils, rare liquids, and volatile liquids in industries such as chemicals, petroleum, electroplating, pharmaceuticals, food processing, and metallurgy. This pump employs advanced magnetic drive technology, replacing dynamic seals with static seals, ensuring that the pump's flow components remain in a completely sealed state. This completely eliminates the leakage issues inherent in mechanical seals used in other pumps. Additionally, due to its excellent corrosion resistance and ability to prevent contamination of the conveyed medium, the pump is particularly suitable for transporting liquids prone to leakage, flammability, or explosiveness.

Product Details:

CQ series horizontal magnetic pump consists of three main components: the pump head assembly, the magnetic actuator, and the electric motor. The magnetic actuator is the core component, consisting of an outer magnetic rotor, an inner magnetic rotor, and a non-magnetic magnetic isolation sleeve. When the motor drives the outer magnetic rotor to rotate via a coupling, the magnetic field can pass through the air gap and the non-magnetic material isolation sleeve, driving the inner magnetic rotor connected to the impeller to rotate synchronously, thereby achieving contactless synchronous transmission.

Application:

CQ series magnetic centrifugal pumps are suitable for use in various industries such as chemical, pharmaceutical, petroleum, electroplating, food, film and photo processing and printing, research institutions, and defense industries for the transportation of dilute acids, dilute alkalis, dilute oils, toxic liquids, and volatile liquids. They can also be used as auxiliary components for water circulation equipment and filters, and are particularly suitable for the transportation of liquids that are prone to leakage, flammable, and explosive.

Feature:

1. When overloaded, the relative sliding of the inner and outer magnetic rotors of the pump protects the motor and pump.
2. The pump shaft sealing method has been changed from dynamic sealing to a closed static seal, completely eliminating medium leakage.
3. It does not require independent lubrication or cooling water, thereby reducing energy consumption. Synchronous drive is achieved through a coupling, eliminating contact and friction, resulting in low power consumption, high efficiency, and reduced impact of motor vibration on the pump, as well as reduced impact of cavitation vibration in the pump on the motor.

Performance Data:

Type	Lift Head (m)	Flow (L/min)	Motor Power (kW)	Vltage (V)
BCQ-1.2	1.2	16	0.025	220
10CQ-3	3	19	0.025	220
16CQ-8	8	25	0.12	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
50CQ-25	25	240	4	380
16CQ-8	8	25	0.18	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
40CQ-40	40	200	4	380
50CQ-25	25	240	4	380
50CQ-40	40	200	4	380
50CQ-50	45	220	5.5	380
65CQ-25	25	280	5.5	380
65CQ-35	35	450	7.5	380
80CQ-35	35	850	11	380
80CQ-50	50	850	15	380
100CQ-32	32		22	380
100CQ-50	50		37	380
