Summarize:
ZYB gear pumps, with their rational design and reliable performance characteristics, have become the core conveyance equipment for delivering high-temperature, high-viscosity, and impurity-laden media such as heavy oil, lubricating oil, and coal tar. They demonstrate adaptability and durability that surpass those of ordinary gear pumps, particularly in lubricating oil delivery, the building materials industry, metallurgy, chemical processing, and fuel combustion systems, ensuring their suitability for long-term, continuous operation. By optimizing the clearance between the gears and the pump housing, this machine effectively reduces the likelihood of internal leakage and maintains a constant outlet pressure, avoiding combustion inefficiencies or process interruptions caused by pressure fluctuations.
Product Details:

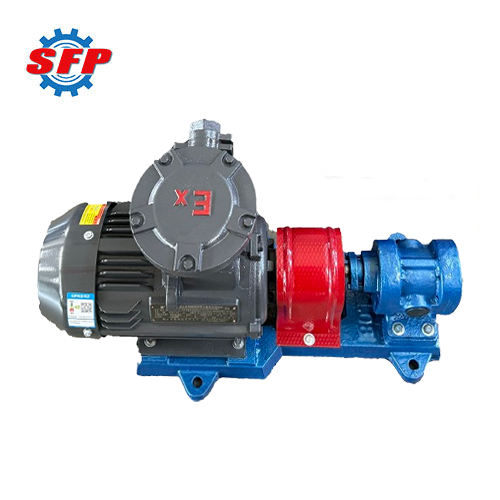

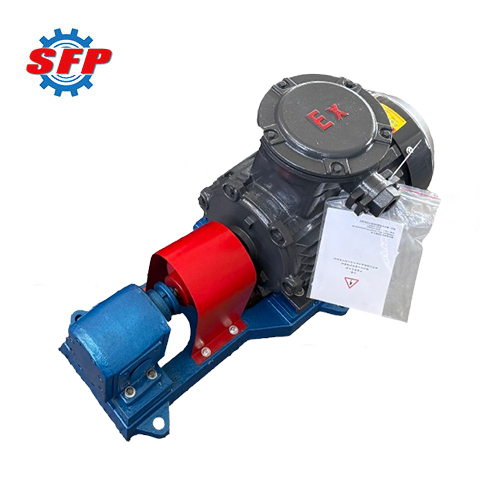

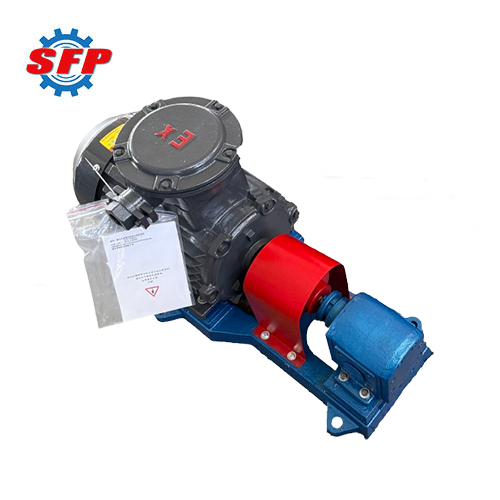

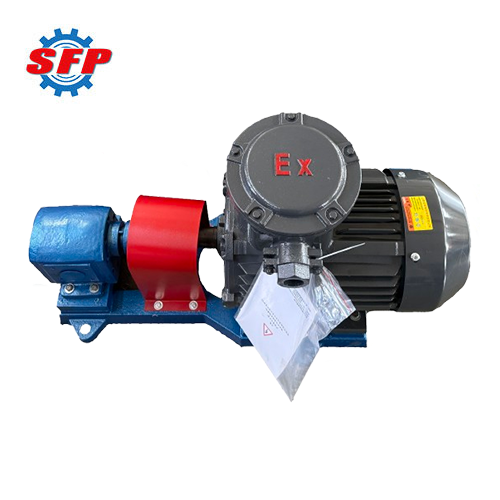

ZYB heavy oil transfer pump primarily relies on the meshing and rotation of the drive and driven gears within the pump housing to create suction and discharge chambers. Upon gear disengagement, the sealed working volume expands to form a local vacuum, drawing the fluid into the pump body. The fluid is then transported to the discharge side as the gears rotate and re-mesh. As the gears re-mesh, the fluid in the gear teeth is squeezed and discharged through the outlet, thereby completing the transfer process. The unit also features a self-sealing lubrication system and an automatic clearance adjustment mechanism, which both reduce the risk of dry running during startup and minimize the load on the gears during meshing.
Application:
ZYB series pumps are versatile for fuel supply in asphalt mixing plants for road construction projects, as well as for oil loading, unloading, and pipeline transportation in oil processing systems. Particularly when handling diesel, heavy fuel oil, coal tar, and other heavy oils, these pumps excel at handling impurities and can be flexibly deployed in oil transfer systems as transfer pumps, booster pumps, or injection pumps.
Feature:
1. During operation, this equipment can effectively convey high-viscosity media while maintaining relatively stable flow rates and outlet pressure.
2. Its self-lubricating design minimizes the impact of normal operational wear on the equipment, making it suitable for industrial systems that require long-term, reliable operation.
3. This pump features key components made of wear-resistant materials, which effectively enhance durability and extend the service life of the equipment during the conveyance of media.
Performance Data:
| Type |
Inlet & Outlet |
Flow |
Pressure |
Speed |
Suction Height |
Power |
| mm |
m³/h |
L/min |
MPa |
r/min |
m |
kw |
| ZYB4/0.6 |
25 |
4 |
66 |
0.6 |
960 |
5 |
1.5 |
| ZYB7/0.6 |
40 |
7 |
116 |
0.6 |
960 |
5 |
3 |
| ZYB13/0.6 |
50 |
13 |
216 |
0.6 |
960 |
5 |
4 |
| ZYB13/1.0 |
50 |
13 |
216 |
1.0 |
960 |
5 |
5.5 |
| ZYB18/0.6 |
70 |
18 |
300 |
0.6 |
960 |
5 |
7.5 |
| ZYB18/1.0 |
70 |
18 |
300 |
1.0 |
960 |
5 |
11 |
| ZYB30/0.6 |
80 |
30 |
500 |
0.6 |
960 |
5 |
7.5 |
| ZYB38/0.4 |
100 |
38 |
633 |
0.4 |
960 |
5 |
15 |
| ZYB45/0.6 |
100 |
45 |
750 |
0.4 |
960 |
5 |
18.5 |
| ZYB60/0.6 |
100 |
60 |
1000 |
0.4 |
960 |
5 |
22 |
