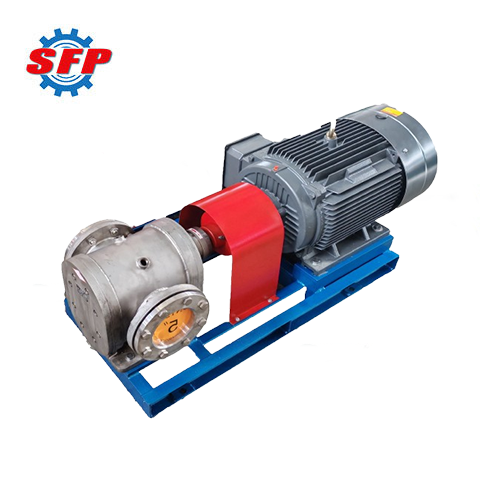

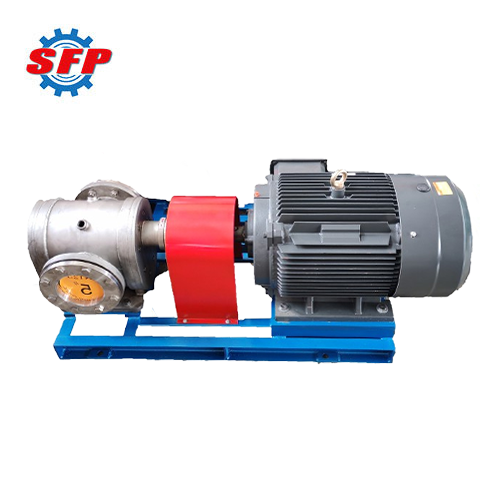

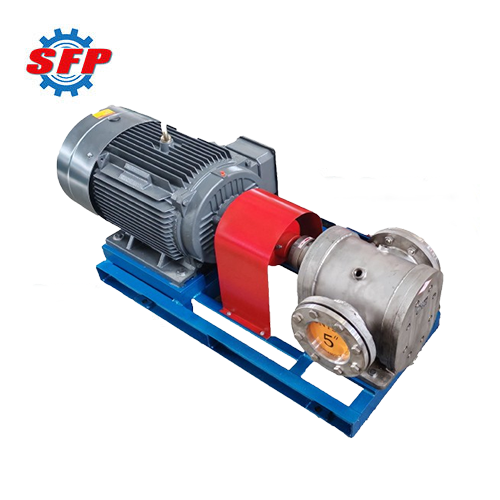

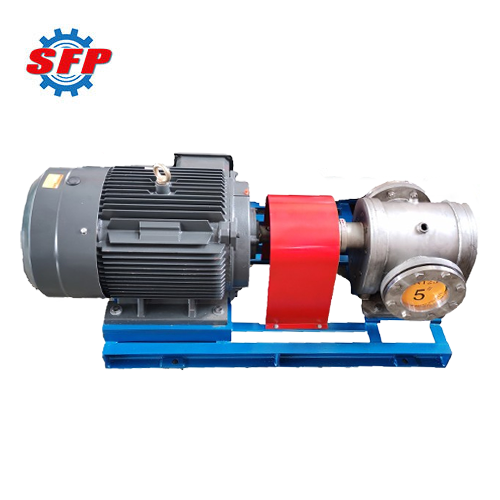

2CY gear pump delivers outstanding and stable performance whether pumping lubricating oil, fuel oil, or low-corrosive, highly lubricating industrial fluids. Through its precise gear meshing design and well-engineered structure, this product not only maintains a stable flow rate for extended periods under complex operating conditions but also effectively prevents fluid leakage during the transfer process. As a result, it provides a more stable and reliable fluid transfer solution for industries such as shipping, ports, oil depots, factories, and mines.
1. This series of equipment features optimal internal clearance control combined with precision gear technology, effectively improving volumetric efficiency.
2. It provides stable, continuous conveying performance over extended periods, minimizing cost losses resulting from equipment downtime due to malfunctions.
3. The precision-machined gears and advanced processing techniques ensure smoother gear meshing, reduce vibration and noise during operation, and enhance the reliability of the equipment.
| Model | Capacity Q | Pressure | Power | Speed | Inlet/Outlet Diameter | |
| m³/h | L/min | M pa | Kw | r/min | ||
| 2CY-0.6/2.5 | 0.6 | 10 | 2.5 |
61 |
940 | G3/4” |
| 2CY-1.08/2.5 | 1.08 | 18 | 1400 | |||
| 2CY-1.5/2.5 | 1.5 | 25 | 63 |
960 | G1” |
|
| 2CY-2.1/2.5 | 2.1 | 35 | 1420 | |||
| 2CY-3/2.5 | 3 | 50 | 1440 | |||
| 2CY-4 | 4 | 66 | 0.75 | 65 |
960 | |
| 2CY-4.2/2.5 | 4.2 | 70 | 2.5 |
1440 | G1 1/4” | |
| 2CY-5-2.5 | 5 | 83 | 960 | G1 1/2” |
||
| 2CY-6-2.5 | 6 | 100 | 67 | 1440 | ||
| 2CY-7 | 7 | 116 | 0.75 | 63 | 960 | |
| 2CY-7.5/2.5 | 7.5 | 125 | 2.5 |
67 | 1440 | |
| 2CY-8.5/2.5 | 8 | 135 | 69 |
960 | G2’ |
|
| 2CY-12/2.5 | 12 | 200 | 1450 | |||
| 2CY-18/2.5 | 18 | 300 | 70 |
970 | 80mm |
|
| 2CY-20/2.5 | 20 | 335 | 1470 | |||
| 2CY-30/2.5 | 30 | 500 | 1470 | |||
| 2CY-38/1.0 | 30 | 633 | 1.0 | 72 | 980 | 100mm |
