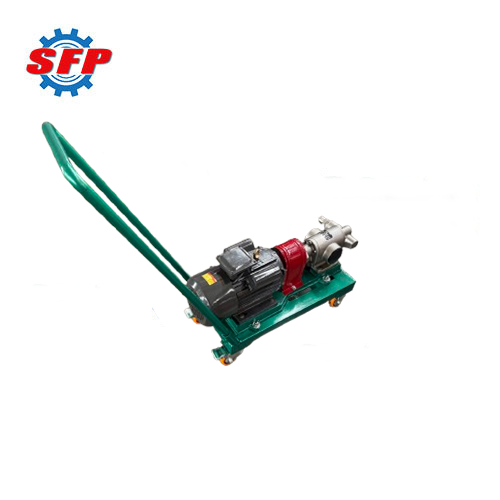

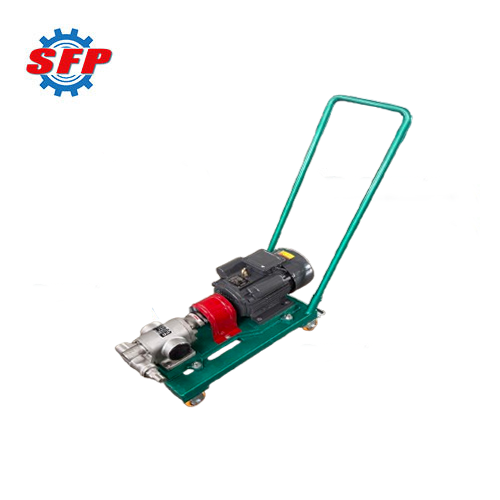

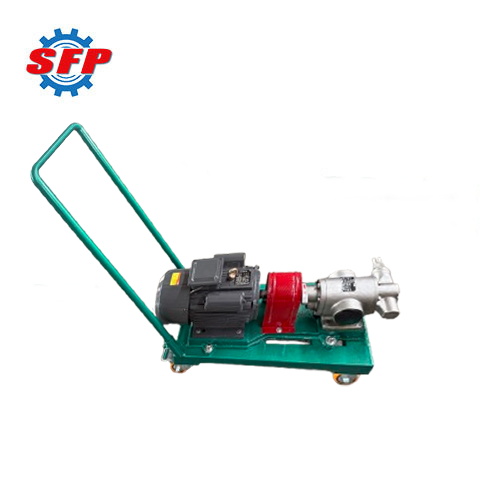

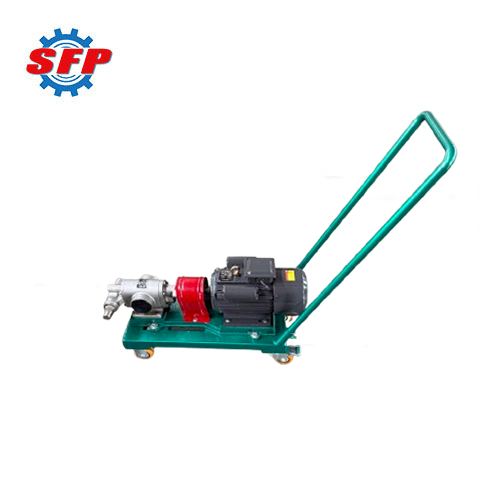

ZYB horizontal gear oil pumps are typically deployed for conveying diesel, lubricating oil, coal tar, heavy oil, fuel oil, and other high-viscosity, lubricating liquid media, finding applications in boiler systems, fuel supply, oil transfer, and lubricating oil circulation systems. This series of equipment uses a gear-meshing delivery mechanism instead of the high-speed acceleration of liquids by impellers, making it exceptionally well-suited for liquids with high viscosity and poor flowability. By employing a self-sealing lubrication and self-adjusting structural design, it reduces mechanical wear and the risk of leaks during operation while significantly extending the service life of key components.
Product Details:
In the ZYB series gear pumps, the motor drives the drive gear to rotate, and the drive gear, in turn, drives the driven gear to rotate in the opposite direction. When the gears gradually disengage, the fluid enters the pump housing under external pressure. The medium moves along the inner wall of the pump housing toward the discharge side as the gears continue to rotate, and when the gears re-engage, the volume of the gear pockets gradually decreases, forcing the medium toward the discharge port and thus creating a continuous cycle of suction, delivery, and discharge.
Application:
ZYB series gear pumps are engineered for pumping high-viscosity fluids such as heavy oil, fuel oil, diesel, lubricating oil, and coal tar. As such, they can be implemented in power plant transfer and pressurization systems to provide a continuous fuel supply to boiler or engine combustion systems, as well as in fuel supply and boiler systems for oil transfer, lubricating oil circulation, and tank loading and unloading.
Feature:
1. This machine maintains a relatively stable delivery state even when pipeline resistance changes, thereby improving delivery efficiency.
2. The pump body and internal structure are optimally designed to minimize the torque exerted on the gears during operation, thereby reducing gear wear.
3. ZYB gear pumps maintain continuous delivery capacity and relatively stable volumetric delivery characteristics even when pumping high-viscosity fluids, thereby resolving issues such as suction difficulties or reduced flow rates.
Performance Data:
| Type |
Inlet and Outlet |
Flow |
Pressure |
Speed |
Suction Height |
Power |
| mm |
m³/h |
L/min |
MPa |
r/min |
m |
kw |
| ZYB4/0.6 |
25 |
4 |
66 |
0.6 |
960 |
5 |
1.5 |
| ZYB7/0.6 |
40 |
7 |
116 |
0.6 |
960 |
5 |
3 |
| ZYB13/0.6 |
50 |
13 |
216 |
0.6 |
960 |
5 |
4 |
| ZYB13/1.0 |
50 |
13 |
216 |
1.0 |
960 |
5 |
5.5 |
| ZYB18/0.6 |
70 |
18 |
300 |
0.6 |
960 |
5 |
7.5 |
| ZYB18/1.0 |
70 |
18 |
300 |
1.0 |
960 |
5 |
11 |
| ZYB30/0.6 |
80 |
30 |
500 |
0.6 |
960 |
5 |
7.5 |
| ZYB38/0.4 |
100 |
38 |
633 |
0.4 |
960 |
5 |
15 |
| ZYB45/0.6 |
100 |
45 |
750 |
0.4 |
960 |
5 |
18.5 |
| ZYB60/0.6 |
100 |
60 |
1000 |
0.4 |
960 |
5 |
22 |
