Product Description

Summarize:

YHCB series circular gear pumps are designed to transfer high viscosity fluids such as oils, resins and chemical solutions. There are also applications in industries where precise and reliable fluid transfer is required, such as the petrochemical, food processing and pharmaceutical industries. Their robust design, precise flow control, self-priming capability and ease of maintenance make them the best choice for companies that need efficient and reliable fluid transfer solutions.

Product Details:

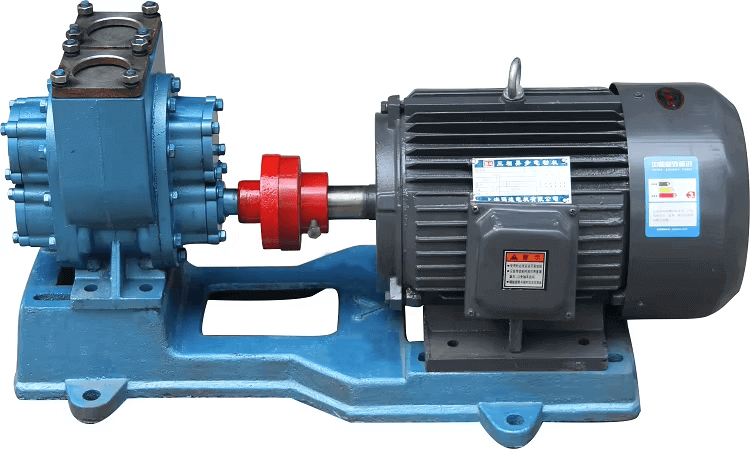

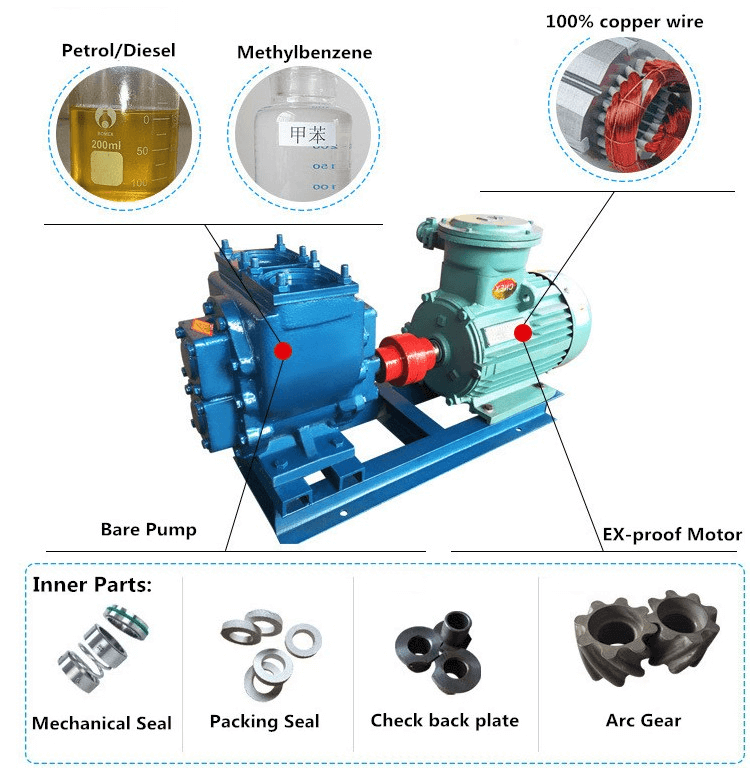

YHCB series high pressure gear pump is a kind of positive displacement pump, which is composed of two gears, pump body and front and rear covers. Two closed spaces are formed inside the product. When the gears rotate, the teeth of the suction chamber gradually disengage from each other, and the volume between the teeth gradually increases, which can form a vacuum or negative pressure area. As the gear continues to rotate, the inhaled liquid can be brought to the discharge chamber side. In the discharge chamber side, the gear teeth gradually meshed, the volume between the teeth gradually decreases, so that the liquid will be compressed and extruded out of the pump body, into the piping system.

Application:

YHCB series circular arc gear pumps are special gear pumps for fuel delivery by tanker trucks, which are mainly used for conveying non-corrosive liquids with viscosity from 5 to 1500 cSt and temperature not exceeding 80℃, without solid particles, such as gasoline, kerosene, diesel oil, mechanical lubricating oil, liquefied petroleum gas (LPG), diamine acetate, amine acetate, and methylamine acetate, etc. The main parts of the pump can be made of different materials according to the needs of users. The main parts of the pump made of different materials can be selected according to the needs of users to convey various chemical media such as acid, alkali, benzene, toluene, xylene, alcohol, alkene, ester, ketone and so on with appropriate concentration.

Feature:

1 Made from high quality materials such as cast iron and stainless steel to ensure durability, wear and corrosion resistance.
2. Designed to operate with minimal noise, which is critical in environments where noise control is important.
3. Compact and lightweight design makes installation and maintenance easier and more convenient.
4. simplifies the start-up process and ensures reliable operation.

Performance Data:

Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Motor
Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Type	Power(kw)
50YHCB-15	15	0.6	960	70	5	YB132S-6	3
50YHCB-20	20	0.2	1100	70	5	YB132S-6	3
65YHCB-30B	30	0.4	970	70	5	YB132M2-6	5.5
65YHCB-35	35	0.6	1440	70	5	YB132M-4	7.5
65YHCB-35A	35	0.6	960	70	5	YB160M-6	7.5
76YHCB-40	40	0.6	1440	70	5	YB132M-4	7.5
76YHCB-40A	40	0.6	970	70	5	YB160M-6	7.5
76YHCB-40B	40	0.4	970	70	5	YB160M-6	7.5
76YHCB-50	50	0.6	970	70	5	YB160L-6	11
80YHCB-60	60	0.6	970	70	5	YB160L-6	11
80YHCB-60A	60	0.6	970	70	5	YB160L-6	11
80YHCB-60B	60	0.4	970	70	5	YB160L-6	11
80YHCB-80	80	0.6	970	70	5	YB160L-5	15
100YHCB-100	100	0.4	970	70	5	YB200L1-6	18.5
150YHCB-150	150	0.4	980	70	5	YB225M-4	30
200YHCB-200	200	0.4	740	70	5	YB280M-6	45
