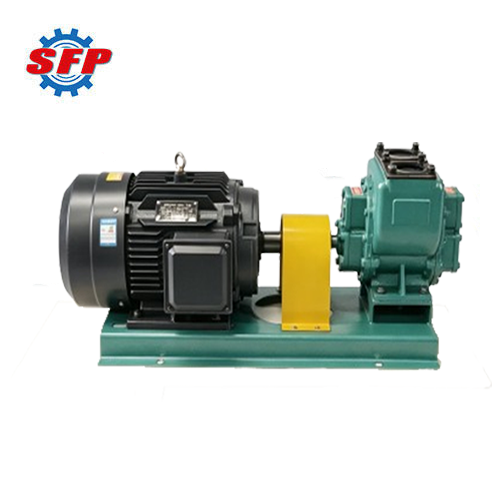

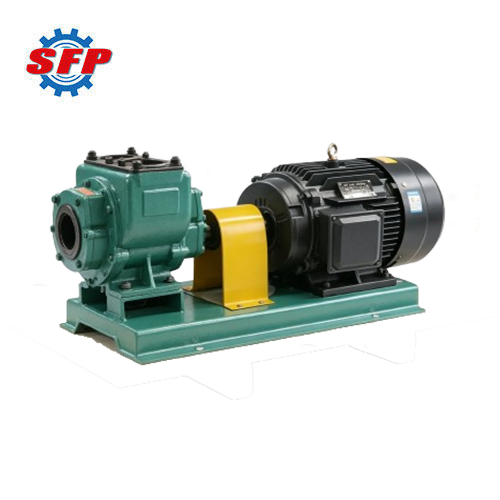

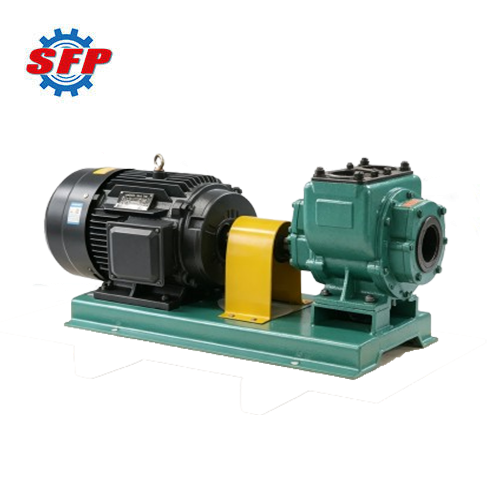

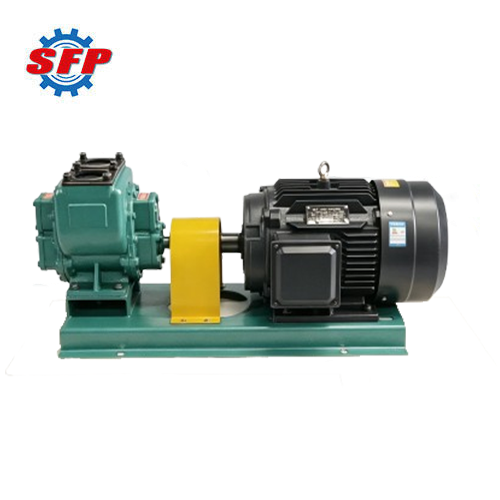

Product Description

Summarize:

YHCB gear pumps are engineered to convey diesel, fuel oil, lubricating oil, heavy oil, and other oil-based media with certain lubricating properties, providing stable delivery performance in applications like marine fuel transfer, industrial oil circulation systems, tanker truck loading and unloading, and petroleum product transportation. This series of equipment features a well-designed structure, reliable sealing performance, stable delivery capacity, and ease of installation and maintenance to address practical challenges during transfer operations, such as continuous operation, frequent starts and stops, and limited on-site installation space. The YHCB series allows users to select the appropriate pump model, drive motor, and sealing configuration based on specific operating conditions, ensuring the equipment is optimally matched to the particular oil transfer system.

Product Details:

In the YHCB series arc-tooth gear pumps, the driving gear rotates the driven gear, creating a low-pressure area on the suction side that draws fluid into the pump chamber through the inlet. The oil enters the spaces between the teeth, and the gears then move the fluid along the pump chamber toward the discharge port. When the gears enter the meshing zone, the working volume gradually decreases, causing the oil to be squeezed and continuously discharged through the discharge port, completing the pumping process.

Application:

YHCB series arc gear pumps are utilized for handling non-corrosive oil-based liquids free of solid particles with viscosities ranging from 5 to 1,500 cSt, such as gasoline, diesel, kerosene, fuel oil, and lubricating oil. In boiler fuel systems and industrial supply systems, they can also serve as oil supply, pressurization, or transfer equipment.

Feature:

1. Its arc-tooth gear design not only reduces unnecessary impact and mechanical wear during operation but also significantly lowers mechanical shock and operating noise, effectively extending the equipment’s service life.
2. With its compact and well-designed overall structure, this series is suitable for mobile conveying equipment as well as conveying systems that require efficient use of space.
3. This series of equipment relies on gear meshing to create volumetric displacement for conveying, providing a continuous oil supply.

Performance Data:

Model	Capacity (m³/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Motor
Model	Capacity (m³/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Type	Power(kw)
50YHCB-15	15	0.6	960	70	5	YB132S-6	3
50YHCB-20	20	0.2	1100	70	5	YB132S-6	3
65YHCB-30B	30	0.4	970	70	5	YB132M2-6	5.5
65YHCB-35	35	0.6	1440	70	5	YB132M-4	7.5
65YHCB-35A	35	0.6	960	70	5	YB160M-6	7.5
76YHCB-40	40	0.6	1440	70	5	YB132M-4	7.5
76YHCB-40A	40	0.6	970	70	5	YB160M-6	7.5
76YHCB-40B	40	0.4	970	70	5	YB160M-6	7.5
76YHCB-50	50	0.6	970	70	5	YB160L-6	11
80YHCB-60	60	0.6	970	70	5	YB160L-6	11
80YHCB-60A	60	0.6	970	70	5	YB160L-6	11
80YHCB-60B	60	0.4	970	70	5	YB160L-6	11
80YHCB-80	80	0.6	970	70	5	YB160L-5	15
100YHCB-100	100	0.4	970	70	5	YB200L1-6	18.5
150YHCB-150	150	0.4	980	70	5	YB225M-4	30
200YHCB-200	200	0.4	740	70	5	YB280M-6	45
