Product Description

Summarize:

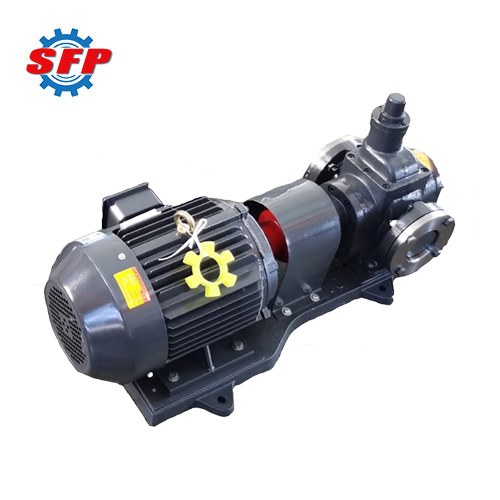

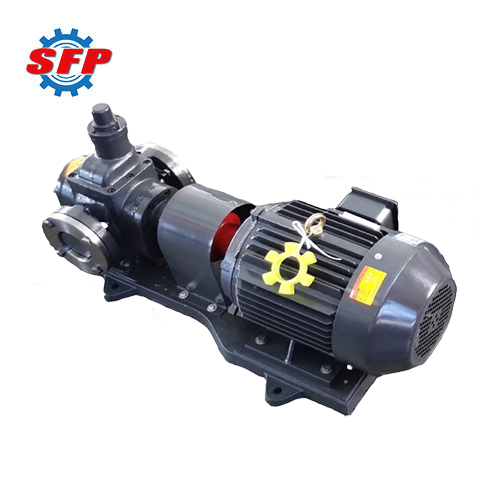

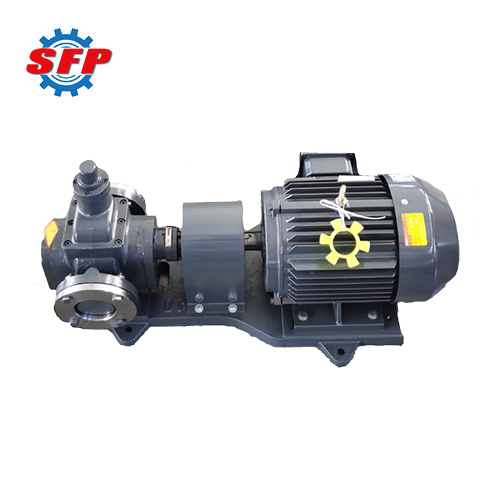

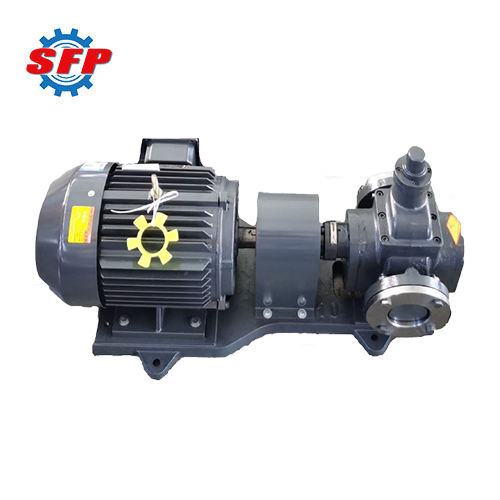

YCB series gear pumps incorporate advanced arc-tooth gear design, which enhances smoothness during gear meshing, reduces mechanical shock and operating noise, and improves the overall operational stability of the equipment. Compared to traditional gear pumps, this series not only possesses higher volumetric efficiency and energy-saving performance but also maintains a stable delivery capacity under continuous operating conditions, allowing for widespread application in the power, chemical, marine, building materials, and metallurgical industries.

Product Details:

This equipment is driven by a motor that rotates the gears, causing them to gradually separate on the suction side and form a sealed chamber. At the same time, as the volume gradually increases, a vacuum is created, drawing the fluid into the pump. With the continuous rotation of the gears, the sealed volume gradually decreases, allowing the fluid to be discharged steadily and thereby enabling continuous delivery. At the same time, the curved-tooth design ensures smoother fluid flow during delivery and improves delivery accuracy.

Application:

YCB arc circular gear pumps are tailored for heavy oil, fuel oil, diesel, lubricating oil, resin, asphalt, and other media with lubricating properties but free of solid particles, offering stable and efficient fluid transfer solutions for industries such as metallurgy, power generation, shipbuilding, building materials, chemicals, energy, and food processing.

Feature:

1. This series of pumps utilizes precision-machined gears, which not only effectively reduce internal leakage and improve pumping efficiency but also maintain a stable flow rate even when operating at low speeds.
2. Its key components are manufactured from high-strength, wear-resistant materials, offering excellent wear resistance and a long service life, thereby better meeting the pumping needs of various industries.
3. With a simple structure and rational design, the pump allows for easy replacement of components, significantly reducing equipment maintenance costs and downtime.
4. Its arc-tooth gear design reduces noise and vibration during operation and ensures smoother gear meshing.

Performance Data:

Model	Flow (m³/h)	Pressure (Mpa)	Rev (rpm)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6 1.0 0.7 1.2	0.6	910 1390 1130 1710	5.5	50 50 60 60
YCB0.6-1.6	0.6 1.0 0.7 1.2	1.6	910 1400 1130 1710	7.0	50 50 60 60
YCB1.6-0.6	1.6 2.5 1.9 3.0	0.6	910 1400 1130 1710	5.5	50 50 60 60
YCB1.6-1.6	1.6 2.5 1.9 3.0	1.6	940 1440 1150 1750	7.0	50 50 60 60
YCB3.3-0.6	3.3 5.0 4.0 6.0	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB3.3-1.6	3.3 5.0 4.0 6.0	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB4-0.6	4.0 6.0 4.8 7.2	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB4-1.6	4.0 6.0 4.8 7.2	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB8-0.6	8.0 12.0 9.6 14.4	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB8-1.6	8.0 12.0 9.6 14.4	1.6	970 1460 1170 1760	7.0	50 50 60 60
YCB10-0.6	10.0 15.0 12.0 18.0	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB10-1.6	10.0 15.0 12.0 18.0	1.6	970 1470 1170 1770	7.0	50 50 60 60
