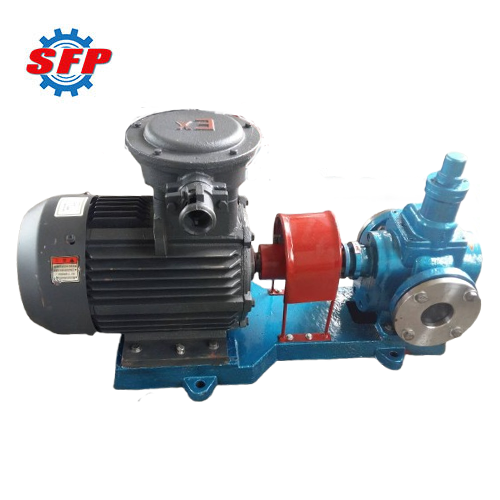

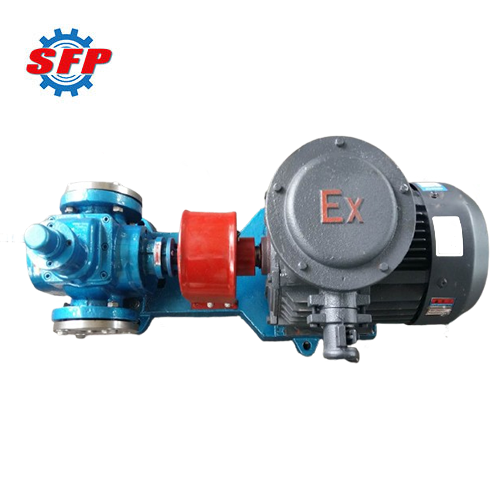

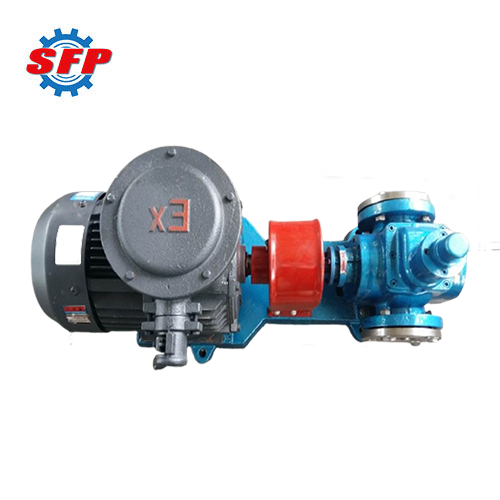

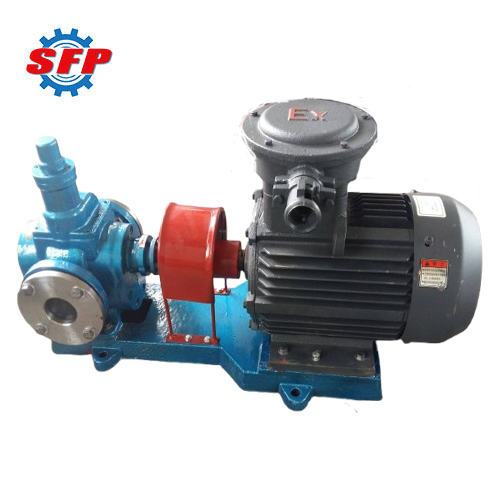

New Technology YCB Series Horizontal Oil Circular Gear Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

YCB series gear oil pumps are positive displacement internal gear pumps capable of reliably and stably conveying non-corrosive hydraulic oils, lubricating oils, fuel oils, and other oil-based media that do not contain solid particles or fibers. Thanks to the pump's unique double-arc sine gear design, it ensures pulsation-free, low-noise operation, no liquid lock phenomena, and strong self-priming performance during the conveying process. It can meet the delivery requirements for applications such as lubrication systems, asphalt transportation, fuel supply, and hydraulic stations.

Product Details:

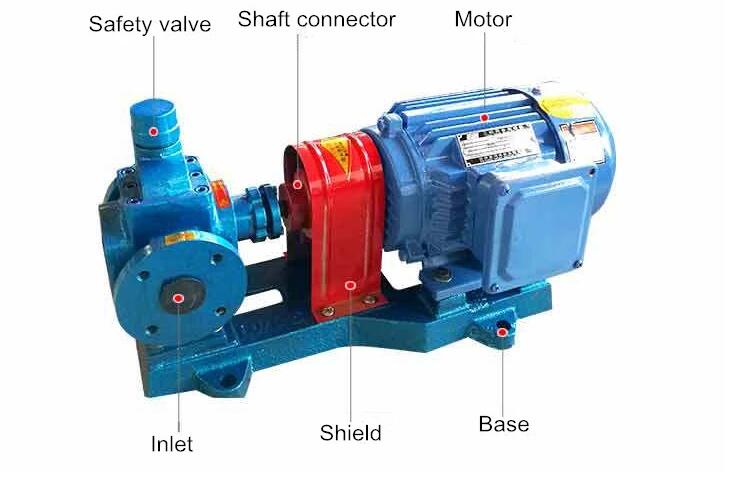

YCB series horizontal gear pump mainly consists of a drive gear, a driven gear, a pump body, front and rear cover plates, and seals. When the pump is started, the drive gear meshes with the driven gear to drive the driven gear to rotate synchronously. At the same time, the tips and surfaces of the gears form a sealed working chamber with the pump body. As the gears rotate, the volume of the working chamber changes, thereby achieving the suction and discharge of fluid.

Application:

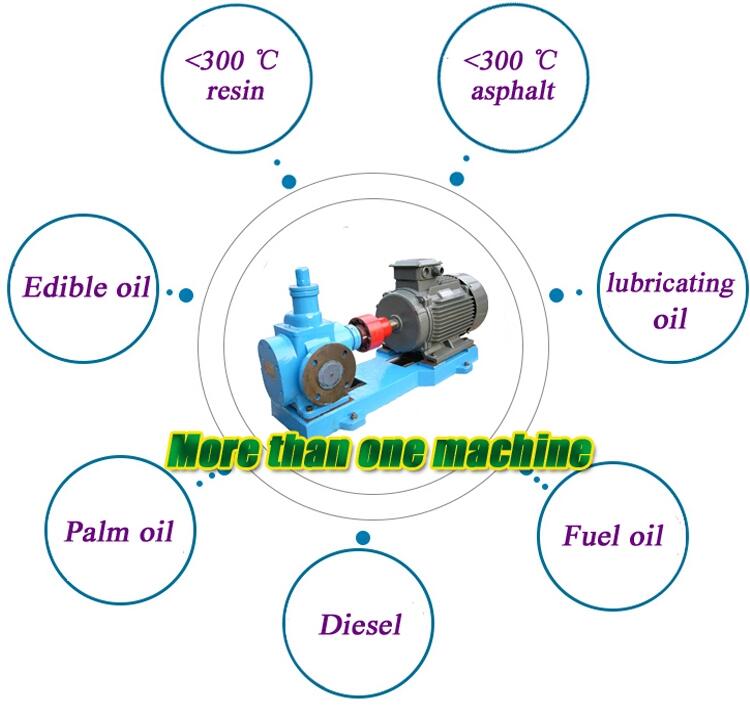

YCB series gear oil transfer pumps are capable of conveying lubricating oils or similar media with a viscosity of 5–1500 cSt, free of solid particles and fibers, at temperatures below 200°C. These pumps can be used as lubrication pumps in industries such as power generation, chemicals, petroleum, and shipping, as well as serving as transfer pumps or booster pumps in oil transfer systems. Meanwhile, they can also function as hydraulic pumps to provide hydraulic power for hydraulic systems. Furthermore, the pump can be used as a fuel pump for boosting and injecting into oil transportation systems and oil supply systems.

Feature:

1. It adopts a double circular arc sine curve tooth profile, which features no pulsation, low noise, and long service life.
2. This machine has a compact structure and is made of durable materials, which can effectively reduce equipment downtime and maintenance costs.
3. The pump body of the pump is manufactured using reliable materials and advanced technology, ensuring high-performance operation even under harsh conditions.

Performance Data:

Model	Flow (m³/h)	Pressure (Mpa)	Rev (rpm)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6 1.0 0.7 1.2	0.6	910 1390 1130 1710	5.5	50 50 60 60
YCB0.6-1.6	0.6 1.0 0.7 1.2	1.6	910 1400 1130 1710	7.0	50 50 60 60
YCB1.6-0.6	1.6 2.5 1.9 3.0	0.6	910 1400 1130 1710	5.5	50 50 60 60
YCB1.6-1.6	1.6 2.5 1.9 3.0	1.6	940 1440 1150 1750	7.0	50 50 60 60
YCB3.3-0.6	3.3 5.0 4.0 6.0	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB3.3-1.6	3.3 5.0 4.0 6.0	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB4-0.6	4.0 6.0 4.8 7.2	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB4-1.6	4.0 6.0 4.8 7.2	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB8-0.6	8.0 12.0 9.6 14.4	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB8-1.6	8.0 12.0 9.6 14.4	1.6	970 1460 1170 1760	7.0	50 50 60 60
YCB10-0.6	10.0 15.0 12.0 18.0	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB10-1.6	10.0 15.0 12.0 18.0	1.6	970 1470 1170 1770	7.0	50 50 60 60
