WCB Gear Pump
WCB Gear Pump
WCB Series Gear Pump
WCB series gear pump belongs to a kind of portable energy-saving oil, which is designed to handle lubricating oil or other liquids with properties similar to lubricating oil without solid particles and fibers. This machine is commonly used in oil refineries, substations, power plants, oil depots and other fields. It is characterized by reasonable structure, international standards, easy maintenance, long service life and simple appearance.
Flow Rate: 30-75L/min
Head Lift: 0.3Mpa
Power: 0.37-0.75kW
Product Description
Summarize:


WCB series portable gear pump is a low-pressure portable oil transfer pump designed to convey lubrication oil or other liquids with properties similar to lubricating oil that do not contain solid particles. Besides, it can also handle media with little lubrication and small particles compared with other common gear pumps. This pump has good self-priming, so each time the pump is turned on without the need to fill the liquid, it can quickly self-priming and begin to transport the medium.

Product Details:

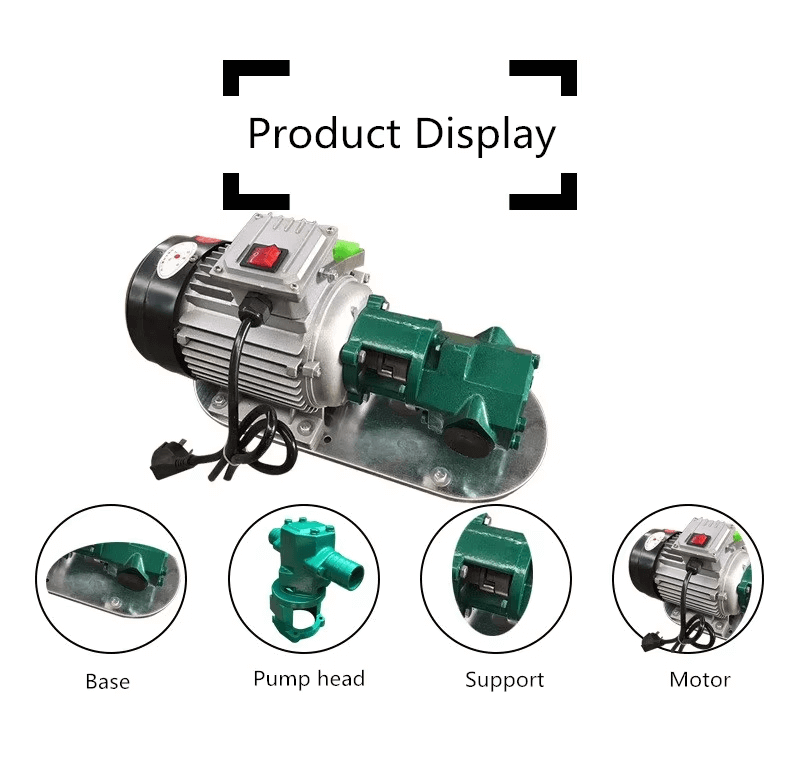

WCB series oil transfer gear pump is mainly composed of gear, shaft, pump body, pump cover, bearing sleeve, shaft end seal, etc. It has a simple and compact structure. Moreover, it adopts the structure of separating coupling and medium, and the bearing can be lubricated separately, which improves the applicability and life of pumps.


Application:
WCB portable gear oil pump can be adopated to convey various kinds of vegetable oils, such as diesel oil, lubricating oil, edible oil, motor oil, kerosene, diesel oil and so on. Therefore, this equipment becomes an ideal choice for oil drum transportation, refineries, power plants, substations, gas stations and oil depots.
Feature:

1. This pump offers a compact and well-designed structure, making it easier to use and maintain.
2.  Its gears are made of alloy steel and undergo special heat treatment, resulting in a surface hardness exceeding HRC 60, which extends the pump’s service life.
3. The unit is self-lubricating through the pumped medium, eliminating the need to add additional lubricant during routine operation and simplifying the operating process.
4. The equipment exhibits exceptional self-priming capability, eliminating the need to fill the pump with liquid before each startup, while enabling rapid self-priming and immediate delivery of the medium.

Performance Data:
Type Flow
(L/min)
Head Lift
(m)
Power
(w)
Voltage
(v)
Material
WCB30 30 30 370 220 Cast iron
WCB50 50 30 550 220
WCB75 75 30 750 220
WCB30P 30 30 370 220 Stainless
Steel
WCB50P 50 30 550 220
WCB75P 75 30 750 220
