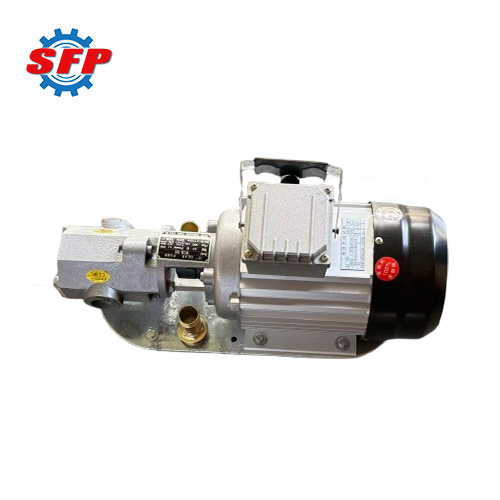

  • WCB Series Small Gear Oil Pump

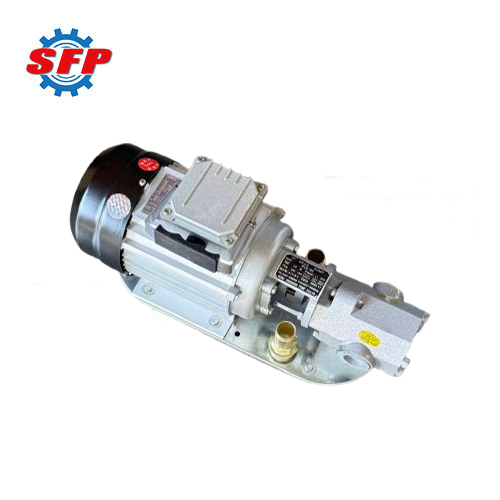

  • WCB Series Heavy Oil Gear Pump

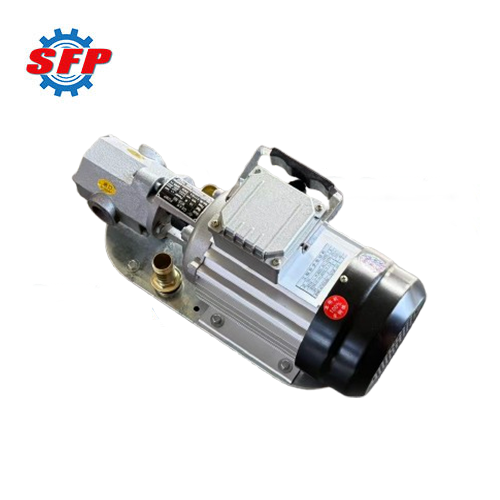

  • WCB Series Electric Gear Oil Pump

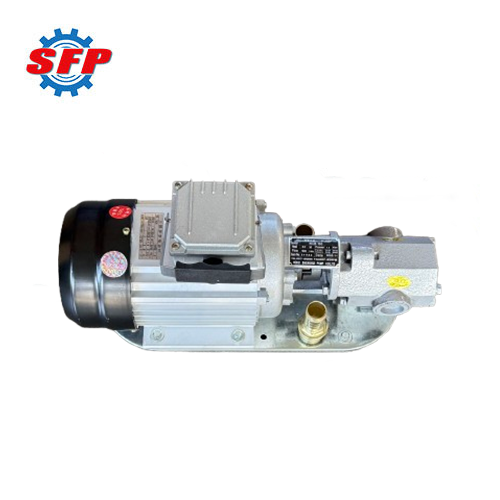

WCB Series Cast Iron Oil Pump
WCB Series Cast Iron Oil Pump
WCB Cast Iron Gear Pump
WCB series gear pumps are primarily designed for handling lubricating oils, fuel oils, edible oils, and chemical liquids free of solid particles and with temperatures not exceeding 80°C, ensuring long-term stable operation in power plants, substations, refineries, and small boiler facilities. With features such as user-friendly operation, strong self-priming capability, compact size, and exceptionally long service life, they have become the conveying experts for construction machinery and lubrication systems.
Head Lift: 30m
Flow Rate: 30-75L/min
Material: Cast Iron / Stainless Steel
Product Description
Summarize:


WCB portable gear pump is a low-pressure, miniature portable oil transfer pump specifically designed for conveying non-corrosive lubricants or similar media free of solid particles and fibers. It is suitable for fuel transfer systems, fuel systems, hydraulic transmission systems, and meets the transfer requirements of industries such as power plants, substations, refineries, and machine tools. To effectively extend its service life and enhance efficiency, it is constructed from alloy steel with special heat treatment, achieving a surface hardness exceeding HRB60, thereby ensuring 7,000 hours of continuous, trouble-free operation.

Product Details:
WCB series small gear pump primarily consists of gears, shafts, a pump body, and shaft end seals. The motor drives the drive gear to rotate, causing the driven gear to mesh in reverse, thereby forming sealed chambers within the pump body. As the gears rotate, the increasing volume of the inlet gear teeth creates a vacuum that draws in oil, which is then carried along the gear teeth and the inner wall of the pump casing to the outlet side. Simultaneously, the decreasing volume of the outlet gear teeth forces the liquid out, achieving continuous, pulsation-free, metered delivery.
Application:
WCB series gear pumps can be used to convey lubricating oils, fuel oils, edible oils, and chemical liquids free of solid particles and at temperatures not exceeding 80°C. They are widely applied in refineries, power plants, substations, machine tools, and small boilers.
Feature:
1. This pump requires no oil filling upon initial use; fluid is automatically drawn in, delivering oil in just 3 seconds.
2. Its compact size allows for one-handed portability, and the absence of anchor bolts ensures quick and easy relocation.
3. The equipment's gears utilize quenching technology, achieving a hardness of HRC60 for sustained continuous operation.


Performance Data:
Model Flow
(L/min)
Head
(m)
Power
(kw)
Voltage Material Port Size
(mm)
WCB30 30 30 0.75 220v/380v cast iron 20
WCB50 50 30 0.75 220v/380v cast iron 20
WCB75 75 30 0.75 220v/380v cast iron 25
WCB100 100 30 1.1 220v/380v cast iron 32
WCB30SS 30 30 0.75 220v/380v stainless steel 20
WCB50SS 50 30 0.75 220v/380v stainless steel 20
WCB75SS 75 30 0.75 220v/380v stainless steel 25
WCB100SS 100 30 1.1 220v/380v stainless steel 32
