SHHLB series gear pumps are positive displacement pumps specifically designed for conveying media of varying properties and viscosities. They meet the transportation requirements of industries such as petroleum, chemical, oil and fat, coatings, pharmaceuticals, and food processing. With their high volumetric efficiency, high-viscosity conveyance capability, zero leakage, and continuous, trouble-free operation, these pumps have increasingly become a cost-effective choice for replacing other equipment in applications like wind turbine lubrication and food syrup processing.
Product Details:

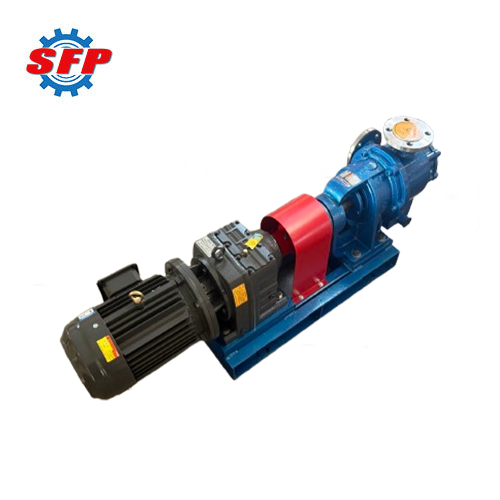

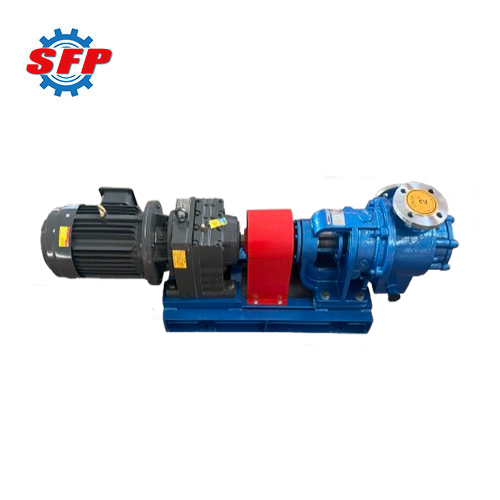

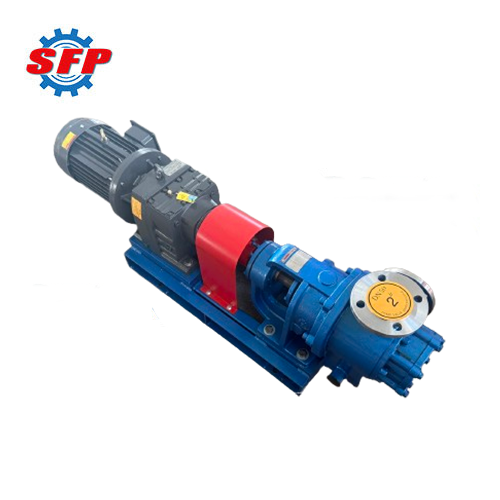

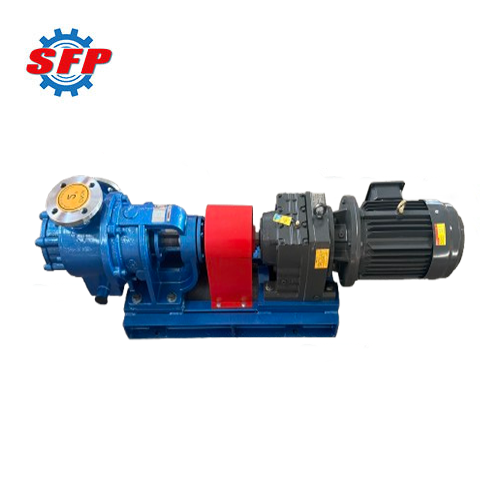

SHHLB internal gear pump primarily consists of an inner rotor, outer rotor, shaft, pump body, front cover, bracket, seals, bearings, and other components. This product employs either packing seals or mechanical seals for sealing. When conveying high-temperature, high-viscosity, or highly corrosive media, packing seals can be used. For transporting media prone to crystallization, an insulating jacket can be designed between the pump body and front cover to melt the medium via steam during operation.
Application:
SHHLB series gear pumps are positive displacement pumps specifically designed for conveying media of varying properties and viscosities. They are primarily used in industries such as petroleum, chemical, oil and fat, coatings, pharmaceuticals, and food processing.
Feature:
1. It possesses excellent self-priming capability and high volumetric efficiency, ensuring stable operation across a wide range of pressures and flow rates.
2. Compatible with various corrosive media; operating temperature can reach 300°C when using appropriate component materials.
3. The inner and outer rotors rotate in the same direction, minimizing wear and extending service life.
4. This unit operates stably across a broad spectrum of pressures and flow rates.
