Product Description

Summarize:

YHCB series circular arc gear pumps are suitable for conveying non-corrosive liquids with viscosity 5～1500cSt, temperature not exceeding 80℃ and without solid particles. Meanwhile, the product can also choose different materials to suit acid, alkali, benzene, xylene, toluene, alcohol, ketone, ester and various chemical media with suitable concentration. The machine has the advantages of large flow, high head, small volume, low noise, low rotational speed, and strong self-priming ability.

Product Details:

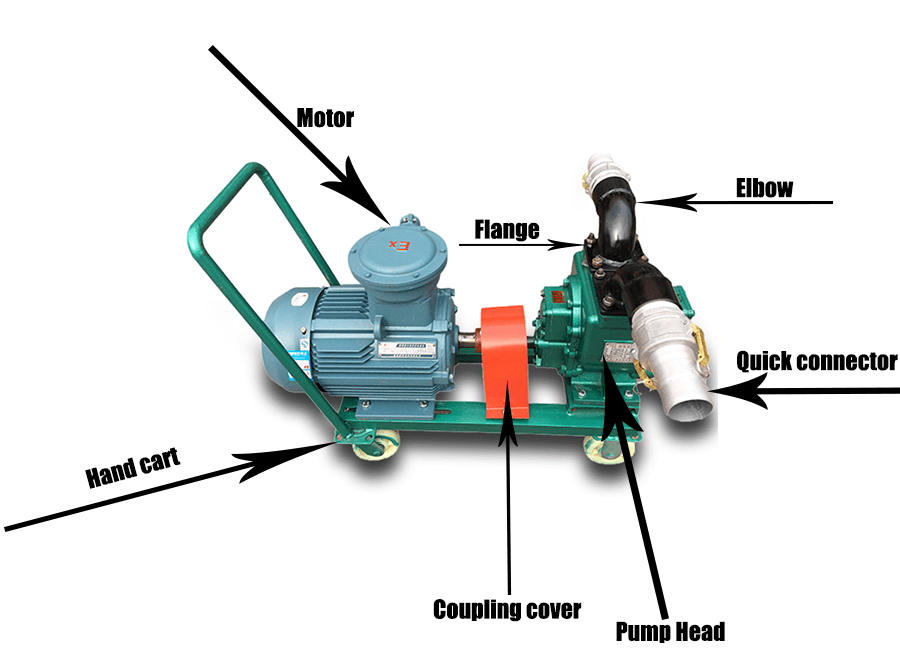

Mobile YHCB gear oil pump is a kind of positive displacement pump. It consists of two gears, pump body and front and rear covers, forming two closed spaces. When the gears rotate, the volume of the space on the disengaged side changes from large to small, and finally a vacuum is formed. When the liquid is sucked in, the volume of the space on the gear meshing side changes from large to small, and the liquid is thus squeezed into the pipeline. In addition, the suction and discharge chambers are separated by the meshing lines of the two gears, and the gears are made of special materials that are explosion-proof.

Application:

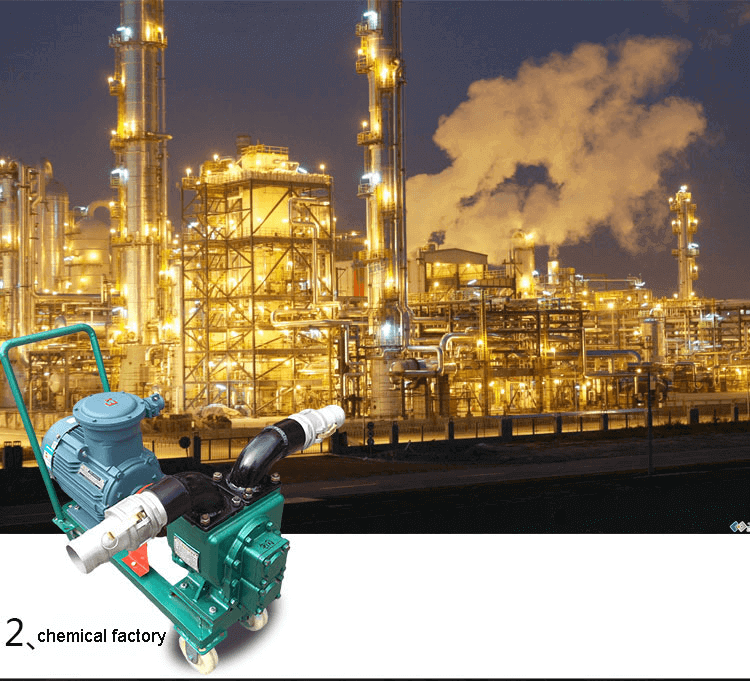

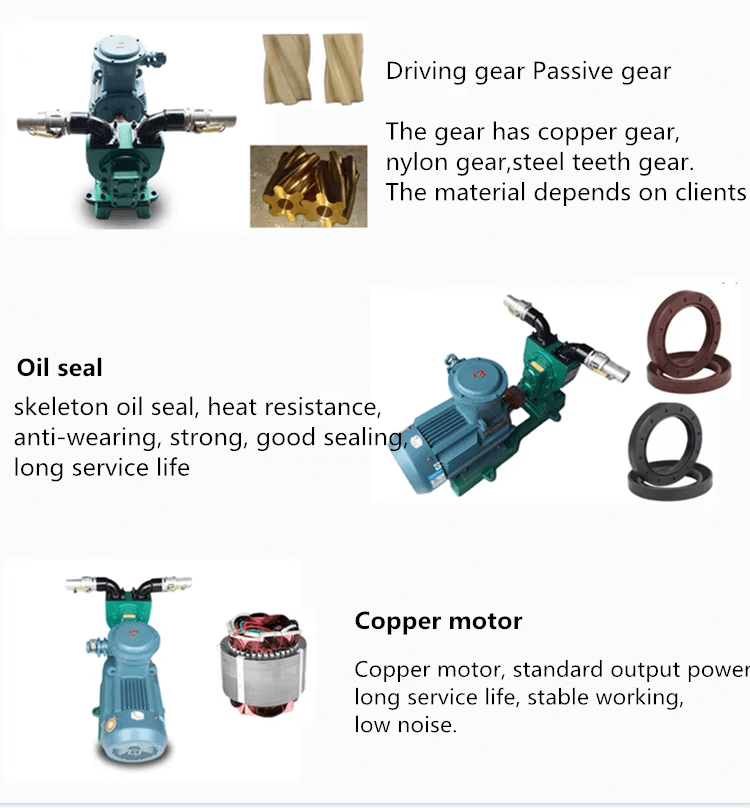

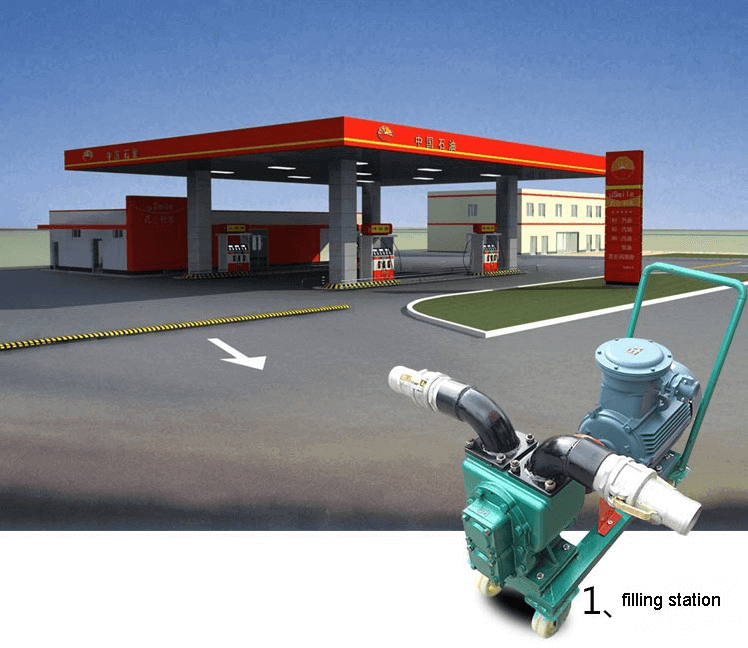

YHCB movable gear pump is mainly suitable for conveying various oil media with viscosity 5-1500cst, temperature below 80℃, no solid particles, no corrosive, including gasoline, kerosene, diesel lubricating oil, liquefied petroleum gas, diamine acetate, triamine acetate, hexamethylamine acetate, etc. The pumps are mainly used in the transportation of gasoline, kerosene, diesel lubricating oil and other flammable and explosive media. The product can also choose nylon wheel and copper wheel materials to meet the requirements of transporting gasoline, kerosene, diesel fuel and other flammable and explosive media, is a good vehicle explosion-proof oil pump.

Feature:

1. Wide application: Suitable for conveying various oils with low viscosity and without solid particles or corrosiveness.
2. High efficiency and energy saving: Compared with the variable gear pump, the same amount of liquid transportation, energy consumption is less.
3. Large flow rate: This machine has the advantages of large flow rate, high head, small volume, low noise, strong self-absorption ability, and easy installation, maintenance and disassembly.
4. Double-arc gear structure: It is composed of double-arc gears, which is a new product adapted to the development of the demand for oil transfer pumps, and belongs to the special gear pumps with high efficiency and energy saving.

Performance Data:

Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Motor
Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Type	Power(kw)
50YHCB-15	15	0.6	960	70	5	YB132S-6	3
50YHCB-20	20	0.2	1100	70	5	YB132S-6	3
65YHCB-30B	30	0.4	970	70	5	YB132M2-6	5.5
65YHCB-35	35	0.6	1440	70	5	YB132M-4	7.5
65YHCB-35A	35	0.6	960	70	5	YB160M-6	7.5
76YHCB-40	40	0.6	1440	70	5	YB132M-4	7.5
76YHCB-40A	40	0.6	970	70	5	YB160M-6	7.5
76YHCB-40B	40	0.4	970	70	5	YB160M-6	7.5
76YHCB-50	50	0.6	970	70	5	YB160L-6	11
80YHCB-60	60	0.6	970	70	5	YB160L-6	11
80YHCB-60A	60	0.6	970	70	5	YB160L-6	11
80YHCB-60B	60	0.4	970	70	5	YB160L-6	11
80YHCB-80	80	0.6	970	70	5	YB160L-5	15
100YHCB-100	100	0.4	970	70	5	YB200L1-6	18.5
150YHCB-150	150	0.4	980	70	5	YB225M-4	30
200YHCB-200	200	0.4	740	70	5	YB280M-6	45
