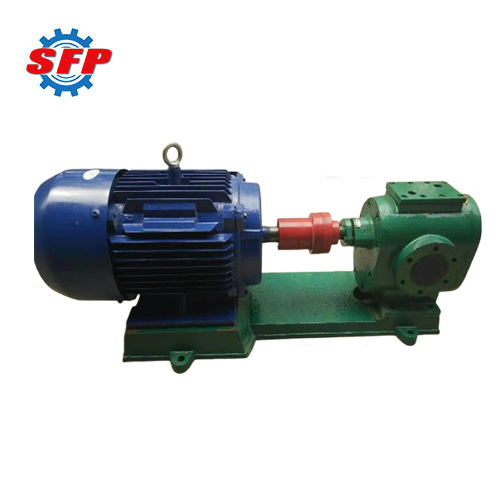

  • LCB Series Bitumen Pump for Sale

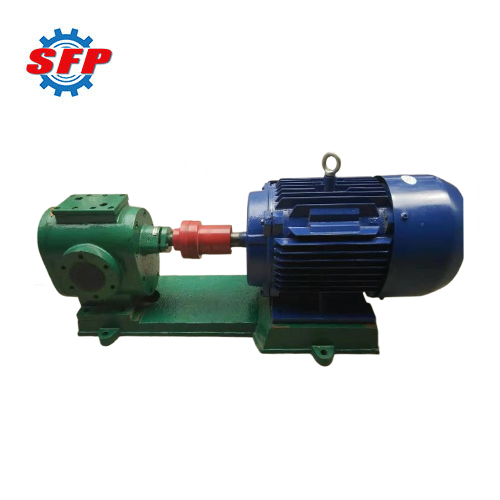

  • LCB Series Heat Preservation Gear Pump

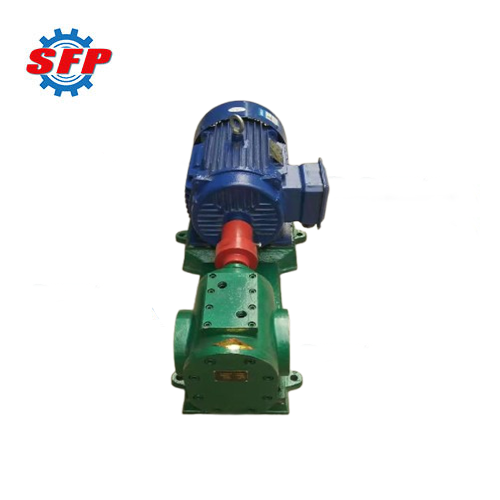

  • LCB Bitumen Transfer Pump

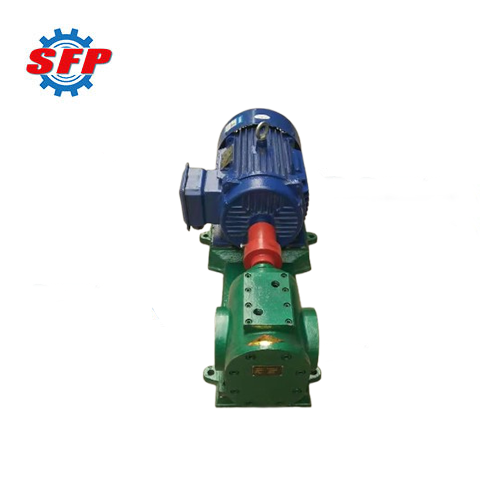

  • LCB Series Internal Gear Pump
LCB Series Bitumen Pump for Sale
LCB Series Bitumen Pump for Sale
LCB Series Internal Gear Pump
LCB series internal gear pump is especially designed for conveying high-temperature, high-viscosity asphalt and corrosive media, and is suitable for transporting non-corrosive, solid-free media at ambient temperatures. They find primary application in chemical, petroleum, machinery, food, paper, and environmental protection industries. Furthermore, these pumps can be equipped with jackets and flanges at the inlet and outlet ports, making them particularly suitable for outdoor installations in cold regions requiring medium insulation.
Power: 1.5-30kW
Flow Rate: 1m³/h-60m³/h
Pressure: 0.28Mpa-1.0Mpa
Product Description
Summarize:

LCB gear pump is suitable for conveying high-temperature, high-viscosity asphalt and corrosive media, meeting the transportation needs of industries such as machinery, food processing, chemical engineering, metallurgy, construction, and papermaking. Furthermore, featuring an insulated jacket design, this pump maintains medium temperature in refineries, asphalt plants, asphalt mixing plants, and unloading stations to ensure smooth transportation. To ensure long-term continuous operation, hardened gears and seals are employed to achieve zero leakage during transfer, meeting the stringent cleanliness requirements of chemical, pharmaceutical, and semiconductor industries.

Product Details:
LCB series gear pumps feature hollow jackets and flanges at both inlet and outlet ports, enabling heating or cooling of the conveyed fluid and pump body via thermal oil, steam, or hot water. When handling high-viscosity media, reduce pump speed using a reducer, variable-speed motor, or belt drive. As the machine is constructed from cast steel, its service life is five times that of cast iron, enabling it to convey heavy oil or asphalt below 350°C that is non-corrosive and free of solid particles.
Application:
LCB series horizontal gear pumps are designed to convey high-temperature, high-viscosity asphalt and other viscous liquids, various petroleum products, and corrosive media. With pump bodies capable of being heated and insulated via steam or thermal oil circulation, they serve as ideal equipment for transporting heavy oils in refineries, roofing felt plants, asphalt plants, and oil unloading stations. They are also the preferred choice for outdoor installations in frigid regions and applications requiring process medium insulation. Beyond these applications, this equipment finds extensive use across industrial sectors including petroleum, chemical processing, machinery, metallurgy, food production, agriculture, construction, papermaking, and environmental protection.
Feature:
1. It is equipped with a safety valve set at 1.5 times the rated discharge pressure to prevent overload.
2. This machine features a double-sine curve tooth profile design, eliminating relative sliding and wear during meshing for smooth operation, low noise, and extended service life.
3. Incorporates an insulated jacket within the pump body, utilizing steam or thermal oil circulation for heat retention, enabling high-temperature liquid transfer in low-temperature environments.
Performance Data:
Model Rated Flow Rate Working Pressure MPA Vacuum Suction Height (mm) Diameter
(mm)
Motor Power
L/min m³/h
LCB1/0.36
LCB1/0.6
16.6 1 0.36
0.6
3 25 1.5
1.5
LCB2/0.36
LCB2/0.6
33.3 2 0.36
0.6
3 25 1.5
2.2
LCB3/0.36
LCB3/0.6
50 3 0.36
0.6
3 25 1.5
2.2
LCB4/0.6
LCB4/1.0
66.4 4 0.6
1.0
5 30 1.5
2.2
LCB5/0.36
LCB5/0.6
83.3 5 0.36
0.6
5 40 2.2
4.0
LCB6/0.36
LCB6/0.6
100 6 0.36
0.6
5 40 3.0
4.0
LCB7/0.6
LCB7/1.0
116 7 0.6
1.0
5 50 3.0
4.0
LCB10/0.6
LCB10/1.0
167 10 0.6
1.0
5 50 4.0
5.5
LCB12/0.36
LCB12/0.6
200 12 0.36
0.6
5 55 4.0
5.5
LCB18/0.36
LCB18/0.6
300 18 0.36
0.6
5 70 5.5
7.5
LCB25/0. 6 416 25 0.6 5 100 7.5
LCB29/0.36
LCB29/0.6
483.3 29 0.36
0.6
5 70 7.5
11.0
LCB38/0.36
LCB38/0.6
633 38 0.36
0.6
5 100 11.0
15.0
LCB58/0.36
LCB58/0.6
960 58 0.36
0.6
5 18.5
22
